PQS-BT08Q Clippard Electronic Components
Part#:PQS-BT08Q
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 12, 2026
Product description

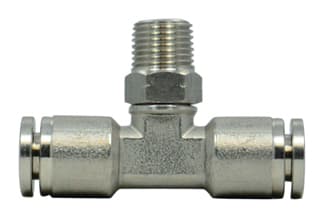

S/S Push-Quick Branch “T”, 1/4”, 1/4” NPT, Provides a simple method of connecting pneumatic components to each other and system piping.
Product Details
- Weight 0.0800
- Material, Body 316 Stainless Steel
- Thread 1/4" NPT Thread
- Vacuum 0 to 29.5" Hg
- Operating Temperature Range 5 to 230°F (-15 to 110°C)
- Operating Pressure 0 to 250 psig @ 75°F
- Max. psi 250 psig (17 bar)
- Force Tube Pull-Out Force @ 75°F (non-pressurized): 1/8" - 5/32": >10 lb.; 1/4" - 1/2": >20 lb.
- Medium Air, Inert Gas, Water, Liquid or Oil
- Material, Seals FKM
- Tubing 1/4" OD Tubing
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PQS-BT08Q on Applied Automation is $36.66. Order now.
PQS-BT08Q Related Documents
This item can ship in 3-5 days!
Manufacturer warranty
PQS-BT08Q Clippard
$36.66
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$36.66
$36.66 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare PQS-BT08Q with other Electronic Components products
Weight
Material, Body
Thread
Vacuum
Operating Temperature Ran...
Operating Pressure
Max. psi
Force
Medium
Material, Seals
Selected product
PQS-BT08Q
Clippard
S/S Push-Quick Branch “T”, 1/4”, 1/4” NPT, Provides a simple method of connecting pneumatic componen...
Weight0.0800
Material, Body316 Stainless Steel
Thread1/4" NPT Thread
Vacuum0 to 29.5" Hg
Operating Temperature Range5 to 230°F (-15 to 110°C)
Operating Pressure0 to 250 psig @ 75°F
Max. psi250 psig (17 bar)
ForceTube Pull-Out Force @ 75°F (...
MediumAir, Inert Gas, Water, Liqui...
Material, SealsFKM
Weight0.0850
Material, BodyENP Carbon Steel, Nickel Iro...
Thread-
Vacuum-
Operating Temperature Range32 to 150°F (0 to 66°C)
Operating Pressure28" Hg Vac. to 105 psig
Max. psi-
Force-
MediumClean, Dry Air and Compatibl...
Material, SealsNitrile
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Weight0.1500
Material, Body-
Thread-
Vacuum-
Operating Temperature Range32 to 130°F (0 to 55°C) at c...
Operating Pressure95 to 125% of Rated Voltage
Max. psi-
Force-
MediumCompatible Fluids (40 micron...
Material, SealsNitrile
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
Recently viewed products
Relevant products
FAQ
What is the price of PQS-BT08Q?
Purchase the PQS-BT08Q from Applied Automation at the price of $36.66. Order today.
Out if stock but available for backorder.
S/S Push-Quick Branch “T”, 1/4”, 1/4” NPT, Provides a simple method of connecting pneumatic components to each other and system piping.
