PQS-BT08P Clippard Electronic Components
Part#:PQS-BT08P
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 12, 2026
Product description

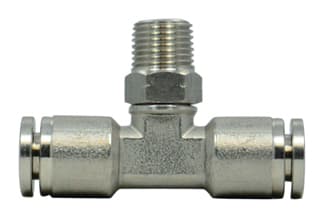

S/S Push-Quick Branch “T”, 1/4”, 1/8” NPT, Provides a simple method of connecting pneumatic components to each other and system piping.
Product Details
- Operating Temperature Range 5 to 230°F (-15 to 110°C)
- Force Tube Pull-Out Force @ 75°F (non-pressurized): 1/8" - 5/32": >10 lb.; 1/4" - 1/2": >20 lb.
- Material, Body 316 Stainless Steel
- Thread 1/8" NPT Thread
- Medium Air, Inert Gas, Water, Liquid or Oil
- Material, Seals FKM
- Tubing 1/4" OD Tubing
- Max. psi 250 psig (17 bar)
- Weight 0.0700
- Operating Pressure 0 to 250 psig @ 75°F
- Vacuum 0 to 29.5" Hg
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PQS-BT08P on Applied Automation is $32.18. Order now.
