PQS-BT05P Clippard Electronic Components
Part#:PQS-BT05P
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 12, 2026
Product description

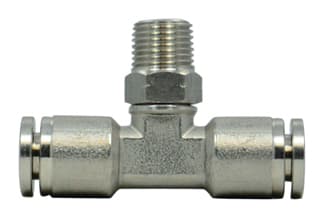

S/S Push-Quick Branch “T”, 5/32”, 1/8” NPT, Provides a simple method of connecting pneumatic components to each other and system piping.
Product Details
- Operating Temperature Range 5 to 230°F (-15 to 110°C)
- Max. psi 250 psig (17 bar)
- Weight 0.0600
- Tubing 5/32" OD Tubing
- Vacuum 0 to 29.5" Hg
- Medium Air, Inert Gas, Water, Liquid or Oil
- Thread 1/8" NPT Thread
- Force Tube Pull-Out Force @ 75°F (non-pressurized): 1/8" - 5/32": >10 lb.; 1/4" - 1/2": >20 lb.
- Operating Pressure 0 to 250 psig @ 75°F
- Material, Body 316 Stainless Steel
- Material, Seals FKM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PQS-BT05P on Applied Automation is $32.18. Order now.
PQS-BT05P Related Documents
This item can ship in 3-5 days!
Manufacturer warranty
PQS-BT05P Clippard
$32.18
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$32.18
$32.18 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare PQS-BT05P with other Electronic Components products
Operating Temperature Ran...
Max. psi
Weight
Tubing
Vacuum
Medium
Thread
Force
Operating Pressure
Material, Body
Selected product
PQS-BT05P
Clippard
S/S Push-Quick Branch “T”, 5/32”, 1/8” NPT, Provides a simple method of connecting pneumatic compone...
Operating Temperature Range5 to 230°F (-15 to 110°C)
Max. psi250 psig (17 bar)
Weight0.0600
Tubing5/32" OD Tubing
Vacuum0 to 29.5" Hg
MediumAir, Inert Gas, Water, Liqui...
Thread1/8" NPT Thread
ForceTube Pull-Out Force @ 75°F (...
Operating Pressure0 to 250 psig @ 75°F
Material, Body316 Stainless Steel
Operating Temperature Range32 to 150°F (0 to 66°C)
Max. psi-
Weight0.0850
Tubing-
Vacuum-
MediumClean, Dry Air and Compatibl...
Thread-
Force-
Operating Pressure28" Hg Vac. to 105 psig
Material, BodyENP Carbon Steel, Nickel Iro...
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Operating Temperature Range32 to 130°F (0 to 55°C) at c...
Max. psi-
Weight0.1500
Tubing-
Vacuum-
MediumCompatible Fluids (40 micron...
Thread-
Force-
Operating Pressure95 to 125% of Rated Voltage
Material, Body-
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
Recently viewed products
Relevant products
FAQ
What is the price of PQS-BT05P?
Purchase the PQS-BT05P from Applied Automation at the price of $32.18. Order today.
Out if stock but available for backorder.
S/S Push-Quick Branch “T”, 5/32”, 1/8” NPT, Provides a simple method of connecting pneumatic components to each other and system piping.
