E3O10A-1W012 Clippard Electronic Components

E3O10A-1W012 on Applied Automation
Clippard

Part#:E3O10A-1W012

Manufacturer:Clippard

Category:Electronic Components

Product Lifecycle:Active

Product description

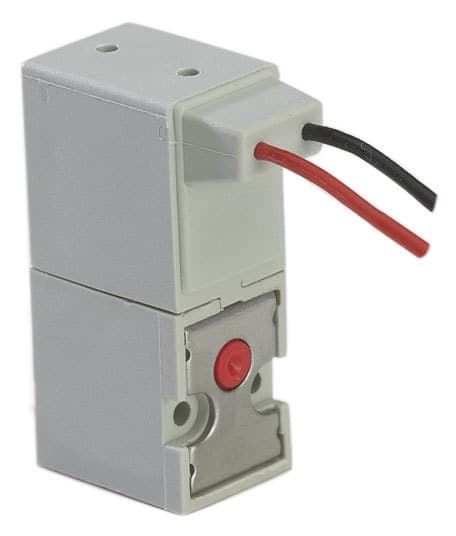

10 mm N.O. 3-way Valve, Wire Leads, 11.8", 0.020", 12 VDC

Product Details

  • Function
    3-Way Normally-Open
  • Voltage Operating Range
    ±10%
  • Length
    1.08
  • Voltage
    12 VDC
  • Operating Temperature Range
    14 to 122°F (-10 to 50°C) When below 32°F, must use clean, dry air.
  • Connection
    24 AWG Wire Leads, 11.8" (300mm)
  • Weight
    0.0250
  • Coil Insulation Class
    F 311°F (155°C)
  • Response Time
    8 ms nominal
  • Mount
    2 M1.7 screws
  • Manifolds
    10 mm Manifolds
  • Wattage
    0.6 Watts
  • Materials
    Stainless steel core and springs, nylon body, FKM dynamic seals, and Nitrile gasket and static seals. FKM gasket and static seals available.
  • Max. Flow
    13 l/min @ 100 psig
  • Medium
    Air, Water, Gas or Compatible Fluids
  • Operating Pressure
    0 to 100 psig (7 bar)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E3O10A-1W012 on Applied Automation is $39.36. Order now.

E3O10A-1W012 Related Documents

2DValvesDrawings.pdf2DManifoldFiles.pdf
