E315F-2W012 Clippard Electronic Components
Part#:E315F-2W012
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Product description

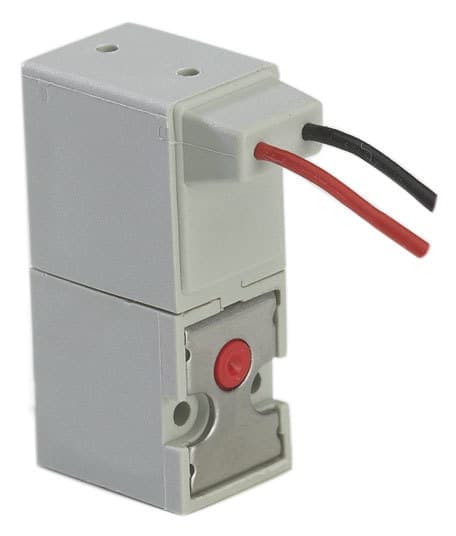

15 mm N.C. 3-Way Valve, Wire Leads, 0.063", 12 VDC
Product Details
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Max. Flow 85 l/min @ 100 psig
- Medium Air, Water, Gas or Compatible Fluids
- Voltage Tolerance ±10%
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Wattage 2.0 Watts
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Function 3-Way Normally-Closed
- Connection 24 AWG Wire Leads, 11.8"
- Weight 0.0850
- Mount 2 M3 screws
- Wire Connector Wire Leads, 24 AWG
- Response Time 6 ms nominal
- Voltage 12 VDC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
