Product description

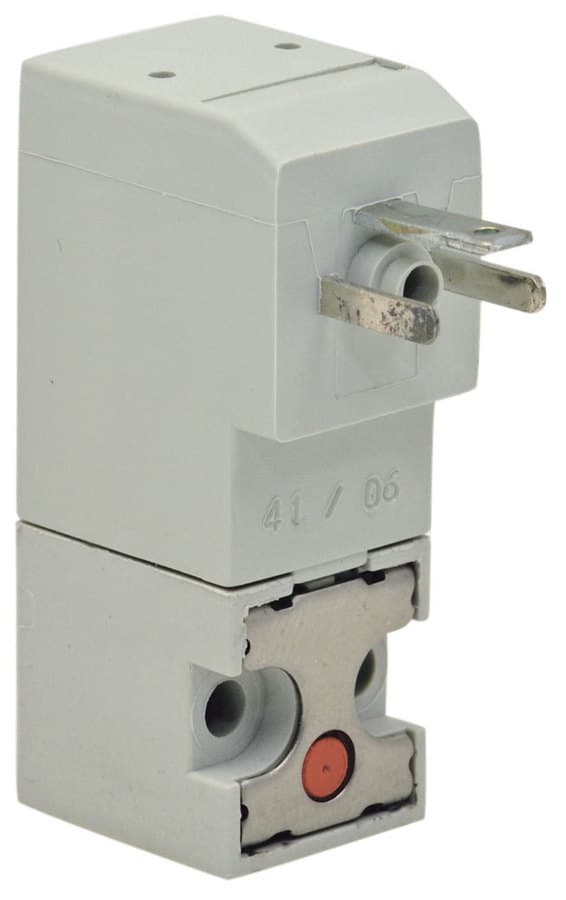

15 mm N.C. 3-way Valve, DIN Connector, 24 VAC
Product Details
- Max. Flow 84 l/min @ 145 psig
- Wattage 2.0 Watts
- Accessories Connectors: 6-240V no LED: CC-C, CC-C-P6, CC-C-P15; 6-24V w/LED: CC-CLL, CC-CLL-P6, CC-CLL-P15; 48-110V w/LED: CC-CLM, CC-CLM-P6, CC-CLM-P15
- Function 3-Way Normally-Closed
- Weight 0.0850
- Medium Air, Water, Gas or Compatible Fluids
- Voltage 24 VAC
- Voltage Tolerance ±10%
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Mount 2 M3 screws
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Connection DIN
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Response Time 6 ms nominal
- Wire Connector DIN 43650 Form C with 8mm spade center spacing
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
