E315E-2D012 Clippard Electronic Components
Part#:E315E-2D012
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Oct 10, 2026
Product description

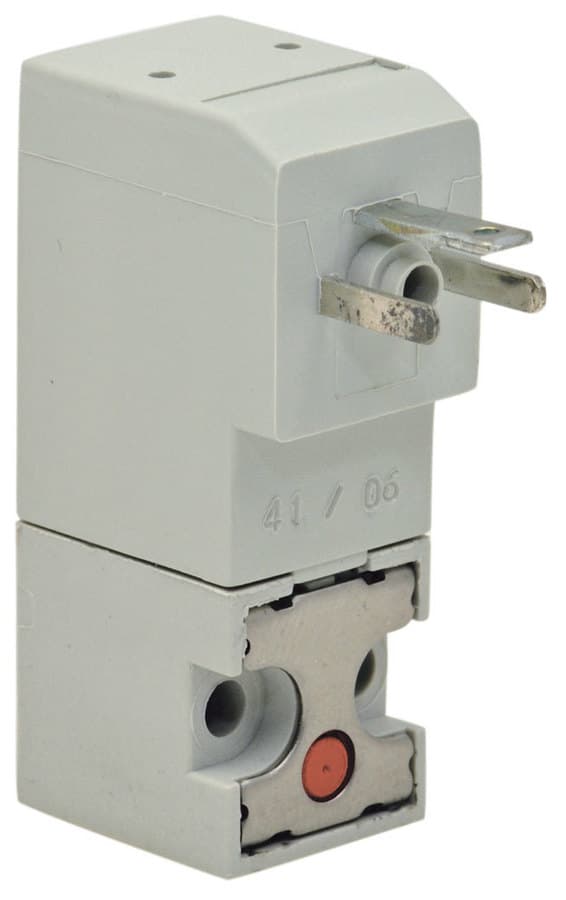

15 mm N.C. 3-way Valve, DIN Connector, 12 VDC
Product Details
- Medium Air, Water, Gas or Compatible Fluids
- Weight 0.0850
- Accessories Connectors: 6-240V no LED: CC-C, CC-C-P6, CC-C-P15; 6-24V w/LED: CC-CLL, CC-CLL-P6, CC-CLL-P15; 48-110V w/LED: CC-CLM, CC-CLM-P6, CC-CLM-P15
- Max. Flow 84 l/min @ 145 psig
- Wire Connector DIN 43650 Form C with 8mm spade center spacing
- Mount 2 M3 screws
- Voltage Tolerance ±10%
- Connection DIN
- Function 3-Way Normally-Closed
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Wattage 2.0 Watts
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Voltage 12 VDC
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Response Time 6 ms nominal
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E315E-2D012 on Applied Automation is $27.19. Order now.
E315E-2D012 Related Documents
This item can ship in 3-5 days!
Manufacturer warranty
E315E-2D012 Clippard
$27.19
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$27.19
$27.19 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E315E-2D012 with other Electronic Components products
Medium
Weight
Accessories
Max. Flow
Wire Connector
Mount
Voltage Tolerance
Connection
Function
Coil Insulation Class
Selected product
MediumAir, Water, Gas or Compatibl...
Weight0.0850
AccessoriesConnectors: 6-240V no LED: C...
Max. Flow84 l/min @ 145 psig
Wire ConnectorDIN 43650 Form C with 8mm sp...
Mount2 M3 screws
Voltage Tolerance±10%
ConnectionDIN
Function3-Way Normally-Closed
Coil Insulation ClassF 311°F (155°C) / H356°F (18...
MediumClean, Dry Air and Compatibl...
Weight-
AccessoriesManifolds: Single, Side Port...
Max. Flow-
Wire Connector-
MountManifold Mount
Voltage Tolerance-
ConnectionWire Leads, Side (Radial), 1...
Function3-Way Universally-Ported
Coil Insulation Class-
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
MediumCompatible Fluids (40 micron...
Weight-
Accessories-
Max. Flow-
Wire Connector-
MountManifold
Voltage Tolerance-
ConnectionWire Leads, 18"
Function3-Way Fully-Ported, Universa...
Coil Insulation Class-
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
