E315E-2C024 Clippard Electronic Components
Part#:E315E-2C024
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Product description

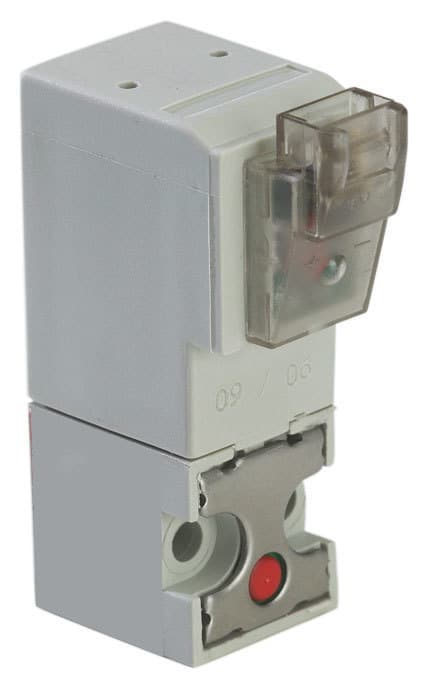

15 mm N.C. 3-way Valve, In-Line Connector, 24 VDC
Product Details
- Function 3-Way Normally-Closed
- Medium Air, Water, Gas or Compatible Fluids
- Connection 2-Pin In-Line Connector
- Response Time 6 ms nominal
- Max. Flow 84 l/min @ 145 psig
- Coil Insulation Class F 311°F (155°C) / H356°F (180°C)
- Weight 0.0850
- Mount 2 M3 screws
- Voltage 24 VDC
- Accessories Connector Wire with cable: C2A-RB300 (30cm), C2A-RB500 (50cm), C2A-RB1000 (1m)
- Wire Connector Molex #28139 plug with terminal insert #050013-8000
- Materials Stainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
- Voltage Tolerance ±10%
- Operating Temperature Range 23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
- Wattage 2.0 Watts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of E315E-2C024 on Applied Automation is $32.84. Order now.
E315E-2C024 Related Documents
Manufacturer warranty
E315E-2C024 Clippard
$32.84
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$32.84
$32.84 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare E315E-2C024 with other Electronic Components products
Function
Medium
Connection
Response Time
Max. Flow
Coil Insulation Class
Weight
Mount
Voltage
Accessories
Selected product
Function3-Way Normally-Closed
MediumAir, Water, Gas or Compatibl...
Connection2-Pin In-Line Connector
Response Time6 ms nominal
Max. Flow84 l/min @ 145 psig
Coil Insulation ClassF 311°F (155°C) / H356°F (18...
Weight0.0850
Mount2 M3 screws
Voltage24 VDC
AccessoriesConnector Wire with cable: C...
DV-3M-24
Clippard
DV 3-Way Valve, Wire Leads, Manifold Mount, 24 VDC, Manifold Options: 15781-2, 15781-4, 15490-5
Function3-Way Fully-Ported, Universa...
MediumCompatible Fluids (40 micron...
ConnectionWire Leads, 18"
Response Time10 to 15 milliseconds
Max. Flow-
Coil Insulation Class-
Weight0.1500
MountManifold
Voltage-
Accessories-
CX14NB47501W
ROSS Controls
CX Series 2/2 Solenoid Valve, Normally Closed, Port (In) 1/2" NPT, Port (Out) 1/2"NPT, 24 VDC
Function2/2 Single Solenoid
Medium-
ConnectionEN 175301-803 Form C
Response Time-
Max. Flow-
Coil Insulation Class-
Weight1.4 lb (0.6 kg)
Mount-
Voltage-
Accessories-
About the manufacturer
Clippard is a premier manufacturer of high-precision miniature pneumatic components and control systems. Renowned for their reliability and innovative design, Clippard products—including valves, cylinders, and electronic fluid controls—serve as the foundational components for advanced industrial automation, life sciences, and packaging applications worldwide.
Recently viewed products
Relevant products
FAQ
What is the price of E315E-2C024?
Purchase the E315E-2C024 from Applied Automation at the price of $32.84. Order today.
Out if stock but available for backorder.
15 mm N.C. 3-way Valve, In-Line Connector, 24 VDC
