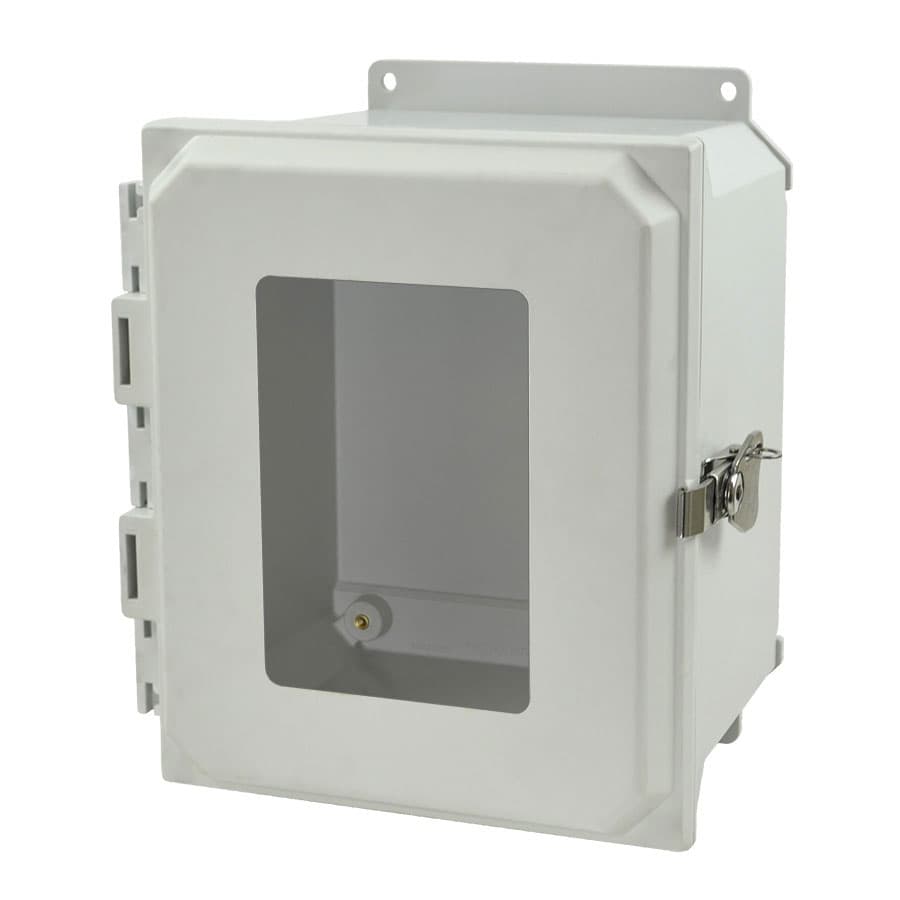

AMU1086TWF Allied Moulded Products Electrical Enclosures

Product Details

• Width
  8.26 in
• Height
  10.04 in
• Depth
  6.13 in
• Material
  Fiberglass
• Mounting Description:
  Nonmetal flange fastened to back side brass inserts
• Width:
  8.26 in
• Depth:
  6.13 in
• Enclosure Type:
  JIC Size
• UNSPSC:
  39121324
• Volume:
  569 cu. in.
• Country of Origin:
  United States of America
• Closure Type:
  Metal Twist Latch
• Brand:
  ULTRALINE®
• Height:
  10.04 in
• Cover Type:
  Opaque with Viewing Window
• Carton Quantity:
  1
• Patents:
  U.S. Patent No. 7,572,975
• Usable Depth:
  6.1 in
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
• Material:
  ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
UPC:
85339978350
Color:
Gray (RAL 7035) with clear window
Carton Weight:
5 lbs
Standards:
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o
Application:
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
