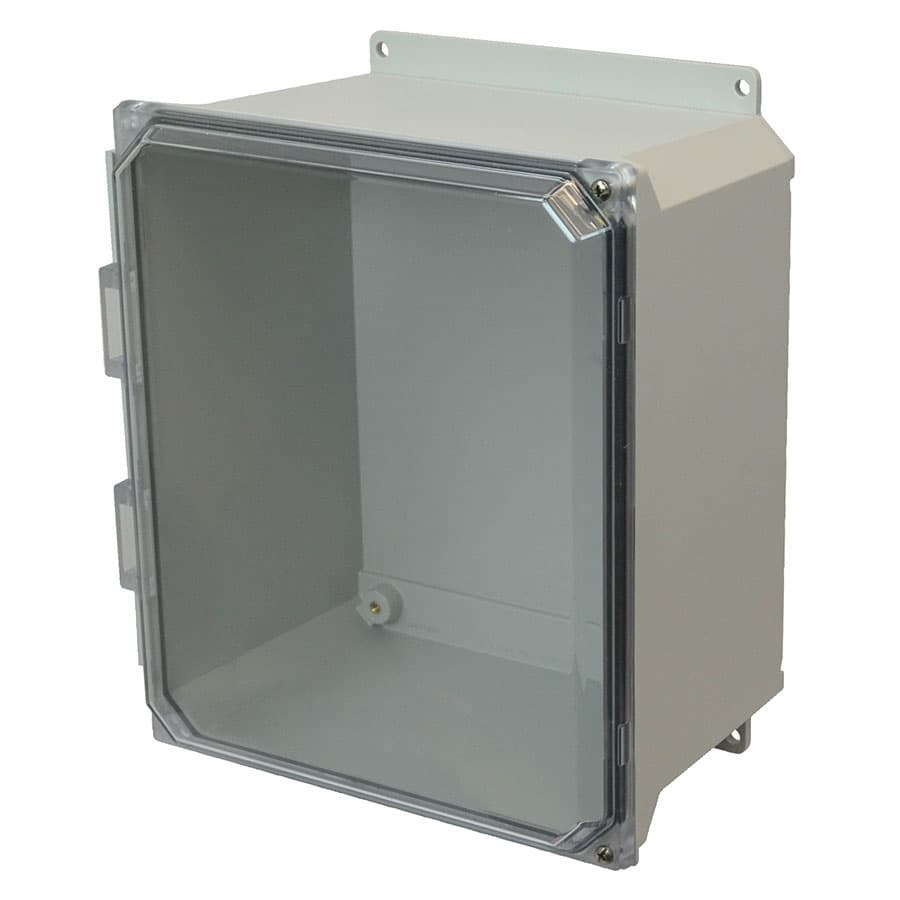

AMU1084CCT Allied Moulded Products Electrical Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  8.27 in
• Height
  10.05 in
• Depth
  4 in
• NEMA Rating
  4X
• Material
  Fiberglass
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Usable Depth:
  4.12 in
• Depth:
  4 in
• Height:
  10.05 in
• Standards:
  UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
• Brand:
  ULTRALINE®
• UNSPSC:
  39121324
• Patents:
  U.S. Patent No. 7,572,975
• Cover Type:
  Clear Polycarbonate
• Color:
  Gray (RAL 7035) with clear cover
Mounting Description:
Nonmetal feet fastened to back side brass inserts
Carton Quantity:
1
Closure Type:
Metal Twist Latch
Carton Weight:
4 lbs
Volume:
416 cu. in.
Enclosure Type:
JIC Size
Country of Origin:
United States of America
Width:
8.27 in
UPC:
85339959250
Application:
Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
Material:
ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
Features:
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o
Additional Materials:
316 stainless steel external hardware (hinges/latches/fasteners), Brass inserts, Plated carbon steel internal hardware, Polycarbonate mounting brackets, Polyurethane (FIP) Formed-In-Place gasket system
