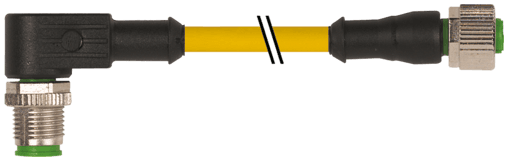

7000-40221-0150400 Murr Elektronik Cable Assemblies

Product Details

• Weight
  233 g
• Series
  Connector Systems
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• suitable for corrugated tube (internal Ø)
  10 mm
• Diameter (core)
  5× 0.34 mm²
• Shore hardness (jacket)
  85 ±5 A
• Test voltage
  2000 V AC
• Compression gland
  M12 (SW13)
• Resistor (core)
  max. 60 Ω/km (20 °C)
• Color/numbering of wires
  br, bk, bl, wh, gnye longitudinally striped
• Shield
  no
• Nominal voltage
  UL 300 V AC
• Operating voltage
  max. 125 V AC/DC
• Outer Ø
  5.2 mm ±5%
• Wire isolation
  PVC (br, wh, bl, bk, gnye)
• Material (wire isolation)
  PVC
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• Temperature range (fixed)
  -30...+80 °C
• Material
  PUR
• Cable identification
  015
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Wire-Ø incl. isolation
1.25 mm ±5%
Cable length
4 m
Material group
IEC 60664-1, category I
Coding
A-coded
Single wire Ø (core)
0.15 mm
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Material (jacket)
PVC
Current load capacity
to DIN VDE 0298-4
Temperature range
-25...+85 °C, depending on cable quality
Cable weight [g/m]
48,4 g
chemical resistance
good resistance to oil, gasoline and chemicals
Pollution Degree
3
Cable Type
1 (PVC)
Bend radius (fixed)
5× outer Ø
Jacket Color
yellow
Form
40221
Locking material
Zinc die casting, matte nickel plated
AWG
similar to AWG 22
Shore hardness (wire isolation)
45 ±5 D
Color (jacket)
yellow
Temperature range (mobile)
-5...+80 °C
Operating current per contact
max. 4 A
No./diameter of wires
5× 0.34 mm²
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Bend radius (moving)
10× outer Ø
Operating voltage (only UL listed)
max. 30 V AC/DC
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Material (wire)
Cu wire, bare
Stranding combination
5 wires twisted around central filler
Outer-Ø (jacket)
5.2 mm ±5%
Product article number of manufacturer
7000-40221-0150400
