7000-17181-9730200 Murr Elektronik Cable Assemblies
Part#:7000-17181-9730200
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Sep 6, 2026
Product description
7000-17181-9730200 Murrelektronik - M12 female receptacle A-cod. front mount, wires PP 8x0.25 2m
Product Details
- Weight 84 g
- Series Connector Systems
- Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
- Outer Ø 1.25 mm ±5%
- Cable number 973
- Rated surge voltage 0.8 kV
- Bend radius (fixed) 10× outer Ø
- Operating current per contact max. 2 A
- Wire isolation PUR (wh, br, gn, ye, gr, pk, bl, rd)
- Temperature range -25...+85 °C
- Operating voltage max. 30 V AC/DC
- Temperature range (mobile) -25...+90 °C
- Protection IP67 inserted and tightened (EN 60529)
- Protection NEMA 3, 4, 6P (UL 50E)
- No./diameter of wires 8× 0.25 mm²
- Form 17181
- Temperature range (fixed) -40...+90 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-17181-9730200 on Applied Automation is $52.40. Order now.
7000-17181-9730200 Related Documents
Similar products from: Murr Elektronik Cable Assemblies
This item can ship within 1 day!
Manufacturer warranty
7000-17181-9730200 Murr Elektronik
$52.40
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$52.40
$52.40 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 7000-17181-9730200 with other Cable Assemblies products
Weight
Series
Locking of ports
Outer Ø
Cable number
Rated surge voltage
Bend radius (fixed)
Operating current per con...
Wire isolation
Temperature range
Selected product
7000-17181-9730200
Murr Elektronik
7000-17181-9730200 Murrelektronik - M12 female receptacle A-cod. front mount, wires PP 8x0.25 2m
Weight84 g
SeriesConnector Systems
Locking of portsScrew thread (M12×1 mm) reco...
Outer Ø1.25 mm ±5%
Cable number973
Rated surge voltage0.8 kV
Bend radius (fixed)10× outer Ø
Operating current per contactmax. 2 A
Wire isolationPUR (wh, br, gn, ye, gr, pk,...
Temperature range-25...+85 °C
7000-17161-9730020
Murr Elektronik

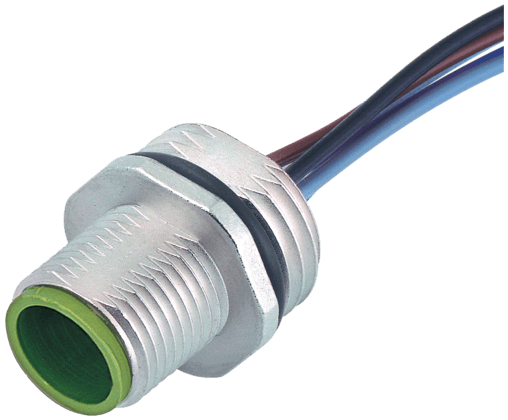

7000-17161-9730020 Murrelektronik - M12 MALE FLANGE PLUG A CODED FRONT MOUNT, PP-wires 8x0,25 0.2m
Weight20 g
SeriesConnector Systems
Locking of portsScrew thread (M12×1 mm) reco...
Outer Ø-
Cable number973
Rated surge voltage0.8 kV
Bend radius (fixed)-
Operating current per contactmax. 2 A
Wire isolation-
Temperature range-25...+85 °C
7000-48111-0000000
Murr Elektronik
7000-48111-0000000 Murrelektronik - M12-PANEL FEED THROUGH 8POLE A CODED
Weight27 g
SeriesConnector Systems
Locking of portsScrew thread (M12×1 mm) reco...
Outer Ø-
Cable number-
Rated surge voltage1.5 kV
Bend radius (fixed)-
Operating current per contactmax. 2 A
Wire isolation-
Temperature range-25...+85 °C
About the manufacturer
Applied Automation is an authorized Murr Elektronik distributor, offering a robust selection of high-quality components engineered to drive efficiency and innovation in industrial applications. Murr Elektronik, a leader in the electronics industry, specializes in providing sophisticated automation solutions that cater to diverse sectors by integrating cutting-edge technology with unmatched enginee...
Recently viewed products
Relevant products
FAQ
What is the price of 7000-17181-9730200?
Purchase the 7000-17181-9730200 from Applied Automation at the price of $52.40. Order today.
2 in stock
7000-17181-9730200 Murrelektronik - M12 female receptacle A-cod. front mount, wires PP 8x0.25 2m
