956.320.67 Werma Accessories for Signaling Devices

Name: 956.320.67
Brand: Werma
Price: 215.23 USD
Availability: BackOrder

Part#:956.320.67

Manufacturer:Werma

Category:Accessories for Signaling Devices

Product Lifecycle:Active

Product description

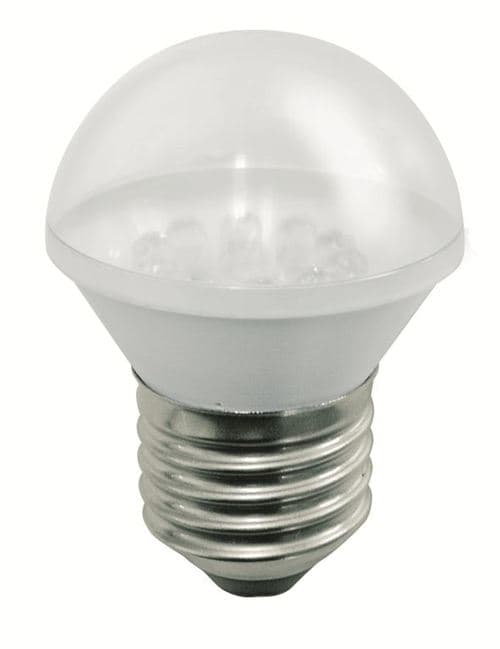

LED Bulb E27 115VAC YE

Product Details

Diameter
45 mm
Lamp fitting/socket
E27
ICAO Certification
No
Product weight
28 g
Rated operational voltage
115 VAC
Conforms with CCC
No
Conforms with GL
No
Operating voltage frequency
60Hz
Rated operational current
30 mA
Conforms with FCC
No
Weight with packaging
36 g
Operating voltage type
AC
WEEE
No
Conforms with RoHS CN
No
Housing colour
Silver
Conforms with CE
Yes
Conforms with IC
No
Operating voltage
115V
Service life optical
100,000 h maximum
EAC certificate available
No

Height

65 mm

Light colour

Yellow

Conforms with RED directive

Conforms with AS-I

Operating voltage tolerance

+/- 10%

Light source

LED

Conform with ATEX-directive

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 956.320.67 on Applied Automation is $215.23. Order now.

956.320.67 Related Documents

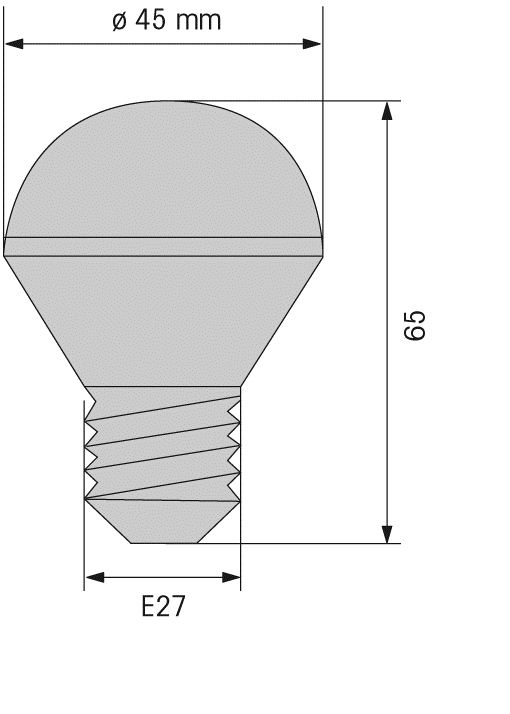

Werma - Datasheet.pdf Werma - Dimensional drawing.jpg
