914.052.55 Werma Accessories for Signaling Devices

Product Details

• Conforms with RoHS CN
  No
• Conforms with GL
  No
• Conforms with VdS
  No
• ICAO Certification
  No
• Conforms with FCC
  No
• EAC certificate available
  Yes
• Conforms with IC
  No
• Conforms with AS-I
  No
• Conforms with UL
  No
• Conform with ATEX-directive
  No
• WEEE
  No
• Conforms with CCC
  No
• Conforms with CE
  Yes
• Acoustic service life
  200 h minimum
• Acoustic signal image
  Continuous tone
• Service life optical
  200 h minimum
• Pollution degree
  3
• Volume (max) at 1m distance
  98,0 dB (A)
• Rated operational current
  300 mA
• Rated inrush current
  1.000 mA
Rated operational voltage
24 VDC
Protection class
Protection class 2
Operating voltage type
DC
Product weight
1450 g
Operating voltage
24V
Weight with packaging
1520 g
Operating voltage tolerance
+/- 10%
Working temperature maximum
+50°C
Working temperature minimum
-30°C
Type of fixing
Wall mounting
Cable entry maximum
d = 9 mm
Tension relief
Present (conforms to VDE)
Cable entry minimum
d = 5 mm

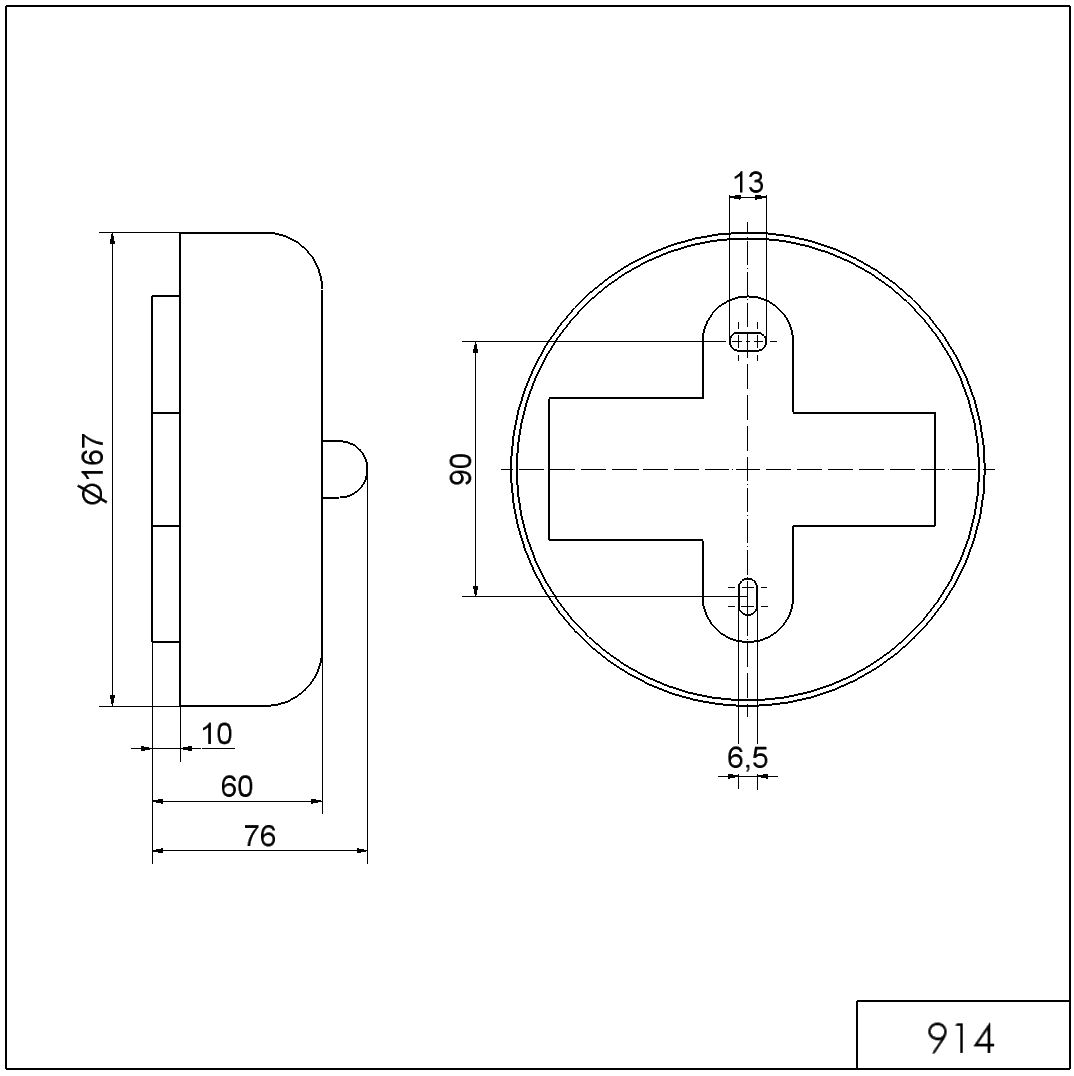

Height
76 mm
Protection category
IP66
Connection
Screw terminals
Housing colour
Grey
cross-sectional area maximum
1,50mm² / 16AWG
Cable entry
Screwed cable gland
Materials
Steel
Diameter
167 mm
