750.000.55 Werma Buzzers

Product Details

• Working temperature minimum
  -40°C
• Operating voltage tolerance
  +/- 10%
• Protection class
  Protection class 2
• ATEX-guidance
  2014/34/EU
• Safety information
  Observe instruction-leaflet!
• ICAO Certification
  No
• Materials
  PC/ABS
• cross-sectional area maximum
  0,75mm² / 19AWG
• Weight with packaging
  1410 g
• Rated inrush current
  3.000 mA
• Volume (max) at 1m distance
  105,0 dB (A)
• Conform with ATEX-directive
  Yes
• Conforms with IC
  No
• Conforms with GL
  No
• Protection category
  IP55
• Connection
  Cable
• Product weight
  1260 g
• Rated operational current
  350 mA
• Acoustic service life
  250 h minimum
• Ex label for dust
  -
EAC certificate available
No

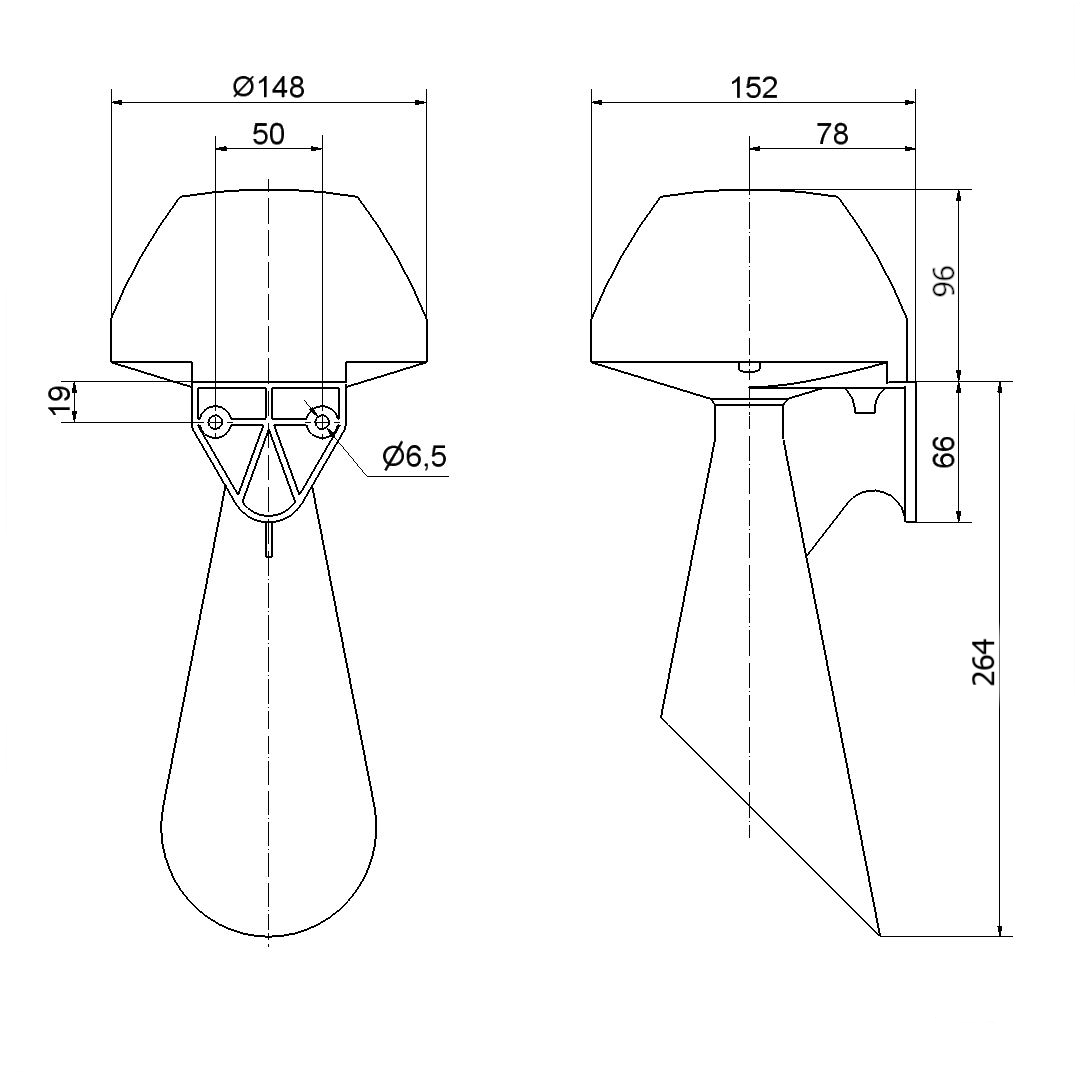

Width
148 mm
Height
360 mm
Working temperature maximum
+50°C
Operating voltage type
DC
Acoustic signal image
Continuous tone
WEEE
Yes
Conforms with CCC
No
Conforms with RoHS CN
No
Diameter
148 mm
Cable length
3000 mm
Operating voltage
24V
Pollution degree
3
Conforms with CE
Yes
Ex label for gas
II2G Ex mb IIC T5 Gb
Conforms with AS-I
No
Housing colour
Black
Length
152 mm
Type of fixing
Wall mounting
Rated operational voltage
24 VDC
Audio frequency
145 Hz
Ex approval number
BVS 03 ATEX E 118 X
Conforms with FCC
No
Conforms with VdS
No
