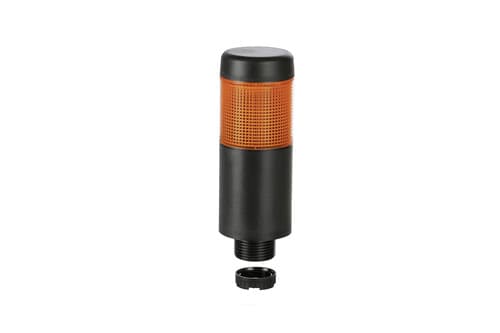

699.630.75 Werma Signal Towers

Product Details

• Diameter
  38 mm
• Materials
  PC
• Cable entry maximum
  d = 9 mm
• Height
  107 mm
• Housing colour
  Black
• Working temperature minimum
  -20°C
• Tension relief
  Pull-out protection
• Cable entry
  Membrane grommet
• Type of fixing
  Built-in mounting
• Working temperature maximum
  +50°C
• Dome colour
  Yellow
• Cable entry minimum
  d = 1 mm
• Weight with packaging
  100 g
• Connection
  M12 plug 5-pole
• Protection category
  IP65
• Operating voltage
  24V
• Operating voltage type
  AC/DC
• Product weight
  60 g
• Operating voltage tolerance
  +/- 10%
• Operating voltage frequency
  50Hz
Rated operational voltage
24 VDC
Rated operational current
55 mA
Rated inrush current
500 mA
Protection class
Protection class 2
Light source
In the connection area: 2
Pollution degree
3
Light colour
LED
Optical signal image
Yellow
Service life optical
Permanent
Volume (max) at 1m distance
50,000 h maximum
Acoustic signal image
85,0 dB (A)
Audio frequency
Pulse tone
Acoustic service life
3000 Hz
Conforms with CE
5,000 h minimum
WEEE
Yes
Conforms with RED directive
Yes
Conform with ATEX-directive
No
Conforms with UL
No
Conforms with CCC
No
Conforms with FCC
Type 12
Conforms with AS-I
No
UL Type Rating
cULus
Conforms with IC
Type 4X
ICAO Certification
Yes
EAC certificate available
No
Conforms with GL
No
Conforms with RoHS CN
No
Conforms with VdS
No
