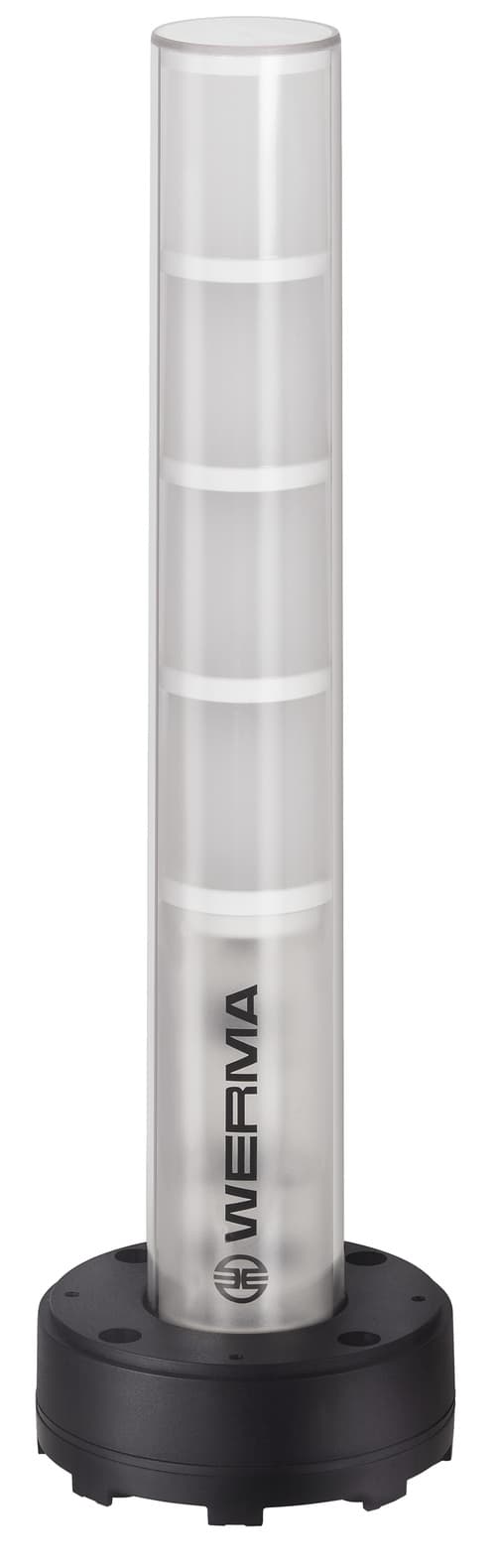

656.100.02 Werma Signal Towers

Product Details

• Protection category
  White
• cross-sectional area maximum
  M12 plug 4-pole
• Type of fixing
  d = 1 mm
• Weight with packaging
  Base mounting
• Rated operational voltage
  24V
• Light source
  Protection class 2
• Service life optical
  LED
• Conforms with RED directive
  50,000 h maximum
• Conforms with UL
  No
• Conforms with AS-I
  No
• Conforms with VdS
  No
• Housing colour
  Clear
• Dome colour
  PC/ABS
• Cable entry maximum
  0,50mm² / 20AWG
• Working temperature minimum
  d = 9 mm
• Operating voltage
  +50°C
• Rated operational current
  DC
• Light colour
  3
• Optical signal image
  IO-Link
• WEEE
  Permanent
Conforms with FCC
No
Conforms with GL
Yes
Height
320 mm
cross-sectional area minimum
IO-LINK
Cable entry
Push-in terminal
Tension relief
Membrane grommet
Product weight
-20°C
Operating voltage type
510 g
Protection class
24 VDC
Pollution degree
385 mA
Conforms with CE
MC >1.000.000 colours
Conforms with CCC
Yes
EAC certificate available
No
Conforms with RoHS CN
No
Diameter
85 mm
Connection
IP66
Materials
PC
Cable entry minimum
0,14mm² / 26AWG
Working temperature maximum
Present (conforms to VDE)
Operating voltage tolerance
344 g
Rated inrush current
+/- 10%
connectivity
500 mA
Conform with ATEX-directive
Yes
Conforms with IC
No
ICAO Certification
No
