647.120.55 Werma Signal Towers
Part#:647.120.55
Manufacturer:Werma
Category:Signal Towers
Product Lifecycle:Active
Product description

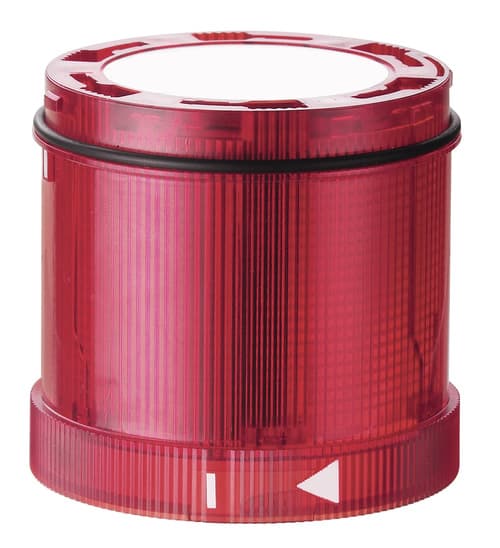

TwinFLASH Classic 24VDC RD
Product Details
- Dome colour Red
- Operating voltage tolerance +/- 10%
- Pollution degree 3
- WEEE 50,000 h maximum
- Conforms with IC Type 12
- Conforms with VdS No
- Working temperature maximum +60°C
- Rated operational voltage 24 VDC
- Flash frequency Flash
- Conforms with FCC cULus
- Conforms with GL No
- Protection category IP65
- Product weight 77 g
- Protection class Protection class 2
- Service life optical TwinFlash
- UL Type Rating No
- Materials PC
- Operating voltage 24V
- Light source LED
- Conform with ATEX-directive Yes
- ICAO Certification Yes
- Diameter 70 mm
- Weight with packaging 92 g
- Rated operational current 80 mA
- Conforms with CE 1 Hz
- Conforms with UL No
- Conforms with AS-I No
- Height 66 mm
- Operating voltage type DC
- Light colour Red
- Conforms with CCC No
- EAC certificate available No
- Working temperature minimum -30°C
- Rated inrush current 750 mA
- Optical signal image EVS
- Conforms with RED directive Yes
- Conforms with RoHS CN No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
