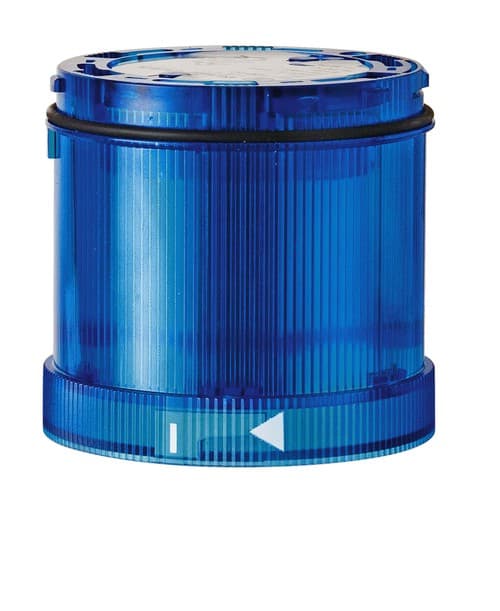

643.500.54 Werma Signal Towers

Product Details

• Diameter
  70 mm
• Weight with packaging
  88 g
• Protection class
  Protection class 2
• Dome colour
  Blue
• Operating voltage type
  DC
• Pollution degree
  3
• Service life optical
  4 million flashes minimum
• WEEE
  Yes
• Conforms with GL
  No
• Materials
  PC
• Operating voltage
  12V
• Optical signal image
  Flash
• Conforms with RED directive
  No
• UL Type Rating
  Type 12
• ICAO Certification
  No
• Height
  66 mm
• Rated operational current
  195 mA
• Flash frequency
  1 Hz
• Conforms with UL
  cULus
• Conforms with AS-I
  No
Protection category
IP65
Operating voltage tolerance
+/- 10%
Light source
Xenon
Conforms with CCC
No
EAC certificate available
Yes
Working temperature maximum
+50°C
Product weight
76 g
Light colour
Blue
Flash output
2 J
Conform with ATEX-directive
No
Conforms with IC
No
Conforms with RoHS CN
No
Working temperature minimum
-20°C
Rated operational voltage
12 VDC
Rated inrush current
500 mA
Conforms with CE
Yes
Conforms with FCC
No
Conforms with VdS
No
