442.010.55 Werma Buzzers

Product Details

• Connection
  Screw terminals
• Working temperature maximum
  +75°C
• Rated operational current
  450 mA
• Service life optical
  50,000 h maximum
• Conforms with CCC
  No
• ICAO Certification
  No

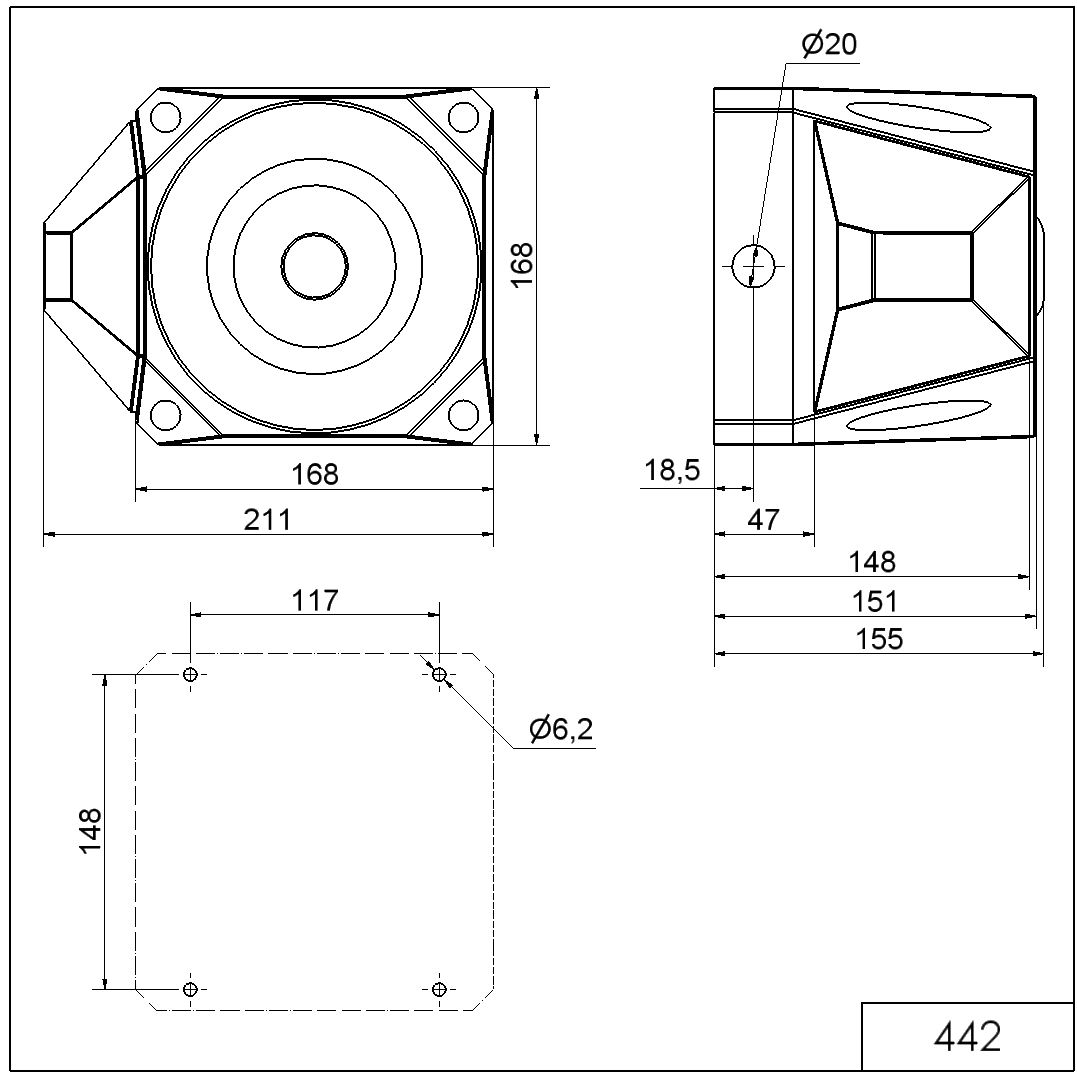

• Height
  155 mm
• Cable entry maximum
  d = 12 mm
• Operating voltage type
  DC
• Flash frequency
  2 Hz
• Conforms with CE
  Yes
• Conforms with AS-I
  No
• Materials
  PC/ABS
• Type of fixing
  Wall mounting
• Rated operational voltage
  24 VDC
• Flash output
  3.5 J
• Conform with ATEX-directive
  No
• Conforms with RoHS CN
  No
• Housing colour
  Red
• Cable entry
  Screwed cable gland
Operating voltage
18-30V
Light colour
Red
Acoustic service life
5,000 h minimum
Conforms with IC
No
Width
168 mm
cross-sectional area minimum
0,25mm² / 24AWG
Product weight
1817 g
Protection class
Protection class 2
Acoustic signal image
Multi-tone
Conforms with UL
No
Conforms with VdS
No
Length
211 mm
cross-sectional area maximum
1,50mm² / 16AWG
Working temperature minimum
-25°C
Light source
Xenon
Number of tones
42 tone
EAC certificate available
Yes
Dome colour
Red
Cable entry minimum
d = 8 mm
Weight with packaging
1967 g
Pollution degree
3
Blink frequency (Hz)
2 Hz
WEEE
No
Conforms with GL
No
Protection category
IP66
Tension relief
Present (conforms to VDE)
Operating voltage tolerance
+/- 0%
Optical signal image
Flash
Volume (max) at 1m distance
120,0 dB (A)
Conforms with FCC
No
