338.273.28 Werma Buzzers

338.273.28 on Applied Automation
Werma

Part#:338.273.28

Manufacturer:Werma

Category:Buzzers

Product Lifecycle:Active

Product description

Buzzer EM Contin. tone 230VAC

Product Details

  • Length
    35 mm
  • Operating voltage type
    AC
  • WEEE
    Yes
  • Conforms with RoHS CN
    No
  • Diameter
    23 mm
  • Operating voltage frequency
    50Hz
  • Conforms with CE
    No
  • Conforms with VdS
    No
  • Housing colour
    Black
  • Working temperature maximum
    +60°C
  • Rated operational voltage
    230 VAC
  • Audio frequency
    100 Hz
  • ICAO Certification
    No
  • Weight with packaging
    23 g
  • Rated inrush current
    <500mA
  • Conforms with UL
    No
  • Conforms with GL
    No
  • Connection
    Flat plug
  • Materials
    PA-GF
  • Working temperature minimum
    -20°C
  • Pollution degree
    2
  • Conforms with CCC
    No
  • Conforms with AS-I
    No
  • Height
    19 mm
  • Type of fixing
    Built-in mounting
  • Volume (max) at 1m distance
    75,0 dB (A)
  • Conforms with FCC
    No
  • Conform with ATEX-directive
    No
  • Width
    23 mm
  • Operating voltage
    230V
  • Operating voltage tolerance
    +/- 10%
  • Acoustic service life
    300 h minimum
  • EAC certificate available
    Yes
  • Protection category
    IP00
  • Product weight
    23 g
  • Acoustic signal image
    Continuous tone
  • Conforms with IC
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

338.273.28 Related Documents

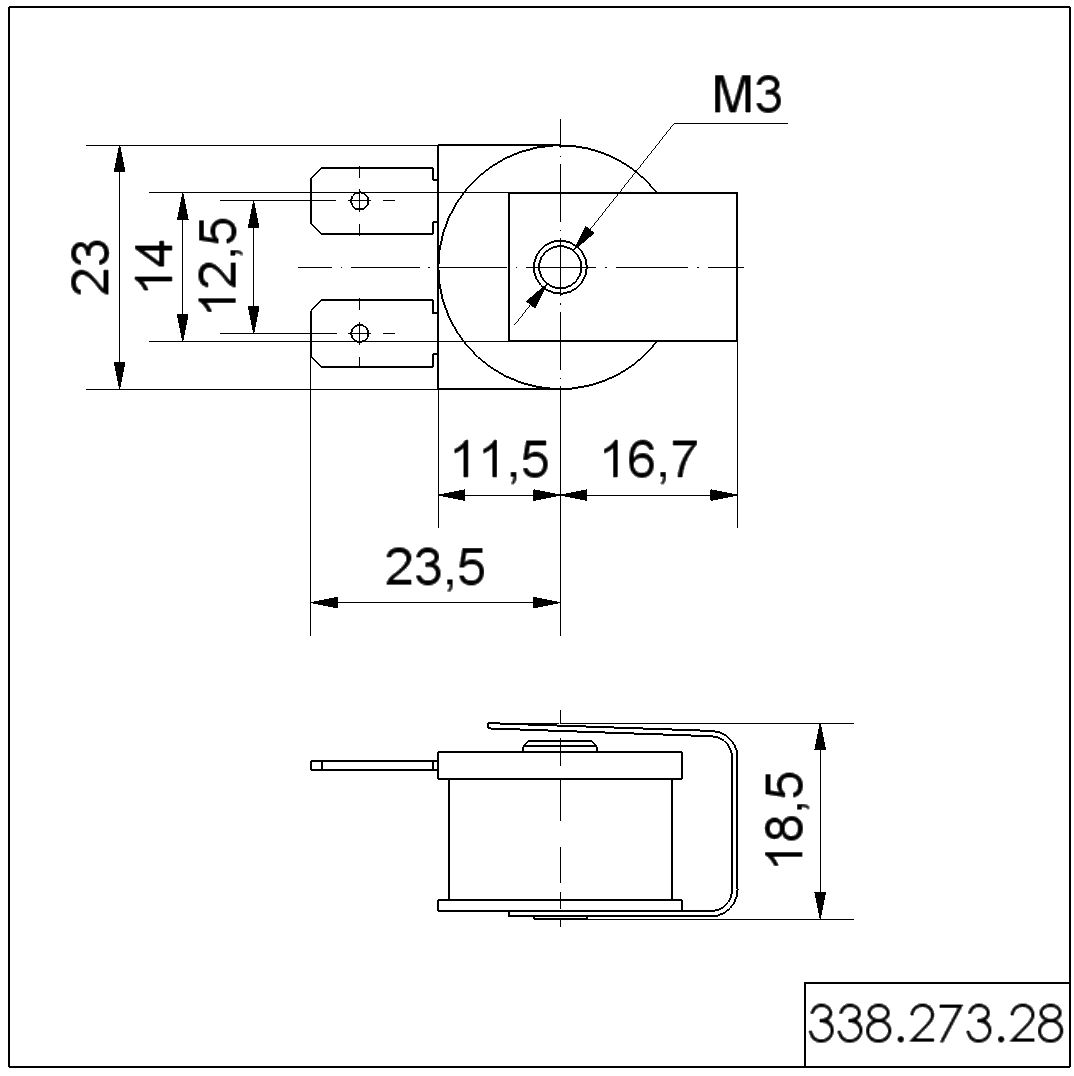

Werma - Dimensional drawing.jpgWerma - Datasheet.pdf
