260.700.04 Werma Accessories for Signaling Devices

Name: 260.700.04
Brand: Werma
Price: 18.12 USD
Availability: BackOrder

Part#:260.700.04

Manufacturer:Werma

Category:Accessories for Signaling Devices

Product Lifecycle:Active

Product description

Mini Adaptor PG29 EM GY

Product Details

Materials
PC/ABS
Product weight
28 g
Conforms with CCC
No
Conforms with IC
No
Cable entry maximum
d = 9 mm
Working temperature maximum
+60°C
Conform with ATEX-directive
No
Conforms with AS-I
Yes
Diameter
62 mm
Protection category
IP66
Pollution degree
3
Conforms with UL
No
Conforms with GL
No
Cable entry
Through hole
Weight with packaging
32 g
WEEE
No
Conforms with FCC
Type 12
ICAO Certification
No
Height
33 mm
Working temperature minimum
-30°C

Conforms with RED directive

EAC certificate available

Conforms with VdS

Housing colour

Grey

Type of fixing

Built-in mounting

Conforms with CE

In the connection area: 2

UL Type Rating

cULus

Conforms with RoHS CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 260.700.04 on Applied Automation is $18.12. Order now.

260.700.04 Related Documents

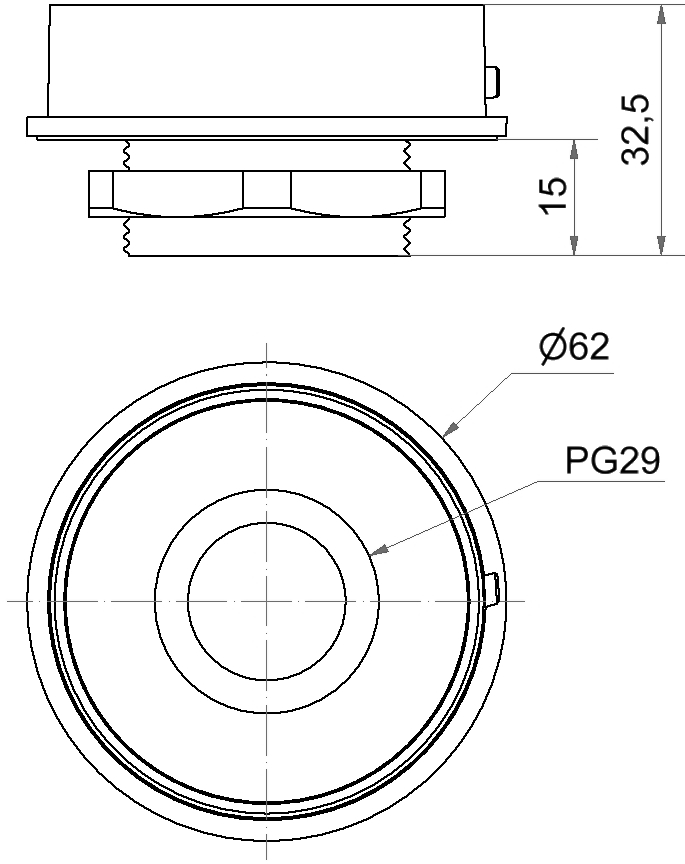

Werma - Dimensional drawing.jpg Werma - Datasheet.pdf Werma - Catalogue.pdf
