114.068.15 Werma Buzzers

Product Details

• Housing colour
  Black
• Type of fixing
  Built-in mounting
• Rated operational current
  20 mA
• Conforms with CCC
  No
• Conforms with GL
  No
• Materials
  PC/ABS
• Product weight
  23 g
• Volume (max) at 1m distance
  85,0 dB (A)
• Audio frequency
  2400 Hz
• Working temperature maximum
  +60°C
• Operating voltage tolerance
  +/- 10%
• Acoustic service life
  5,000 h minimum
• EAC certificate available
  Yes
• Conforms with RoHS CN
  No
• Connection
  Flat plug
• Rated operational voltage
  24 VDC
• Conforms with CE
  Yes
• Conform with ATEX-directive
  No
• Conforms with VdS
  No

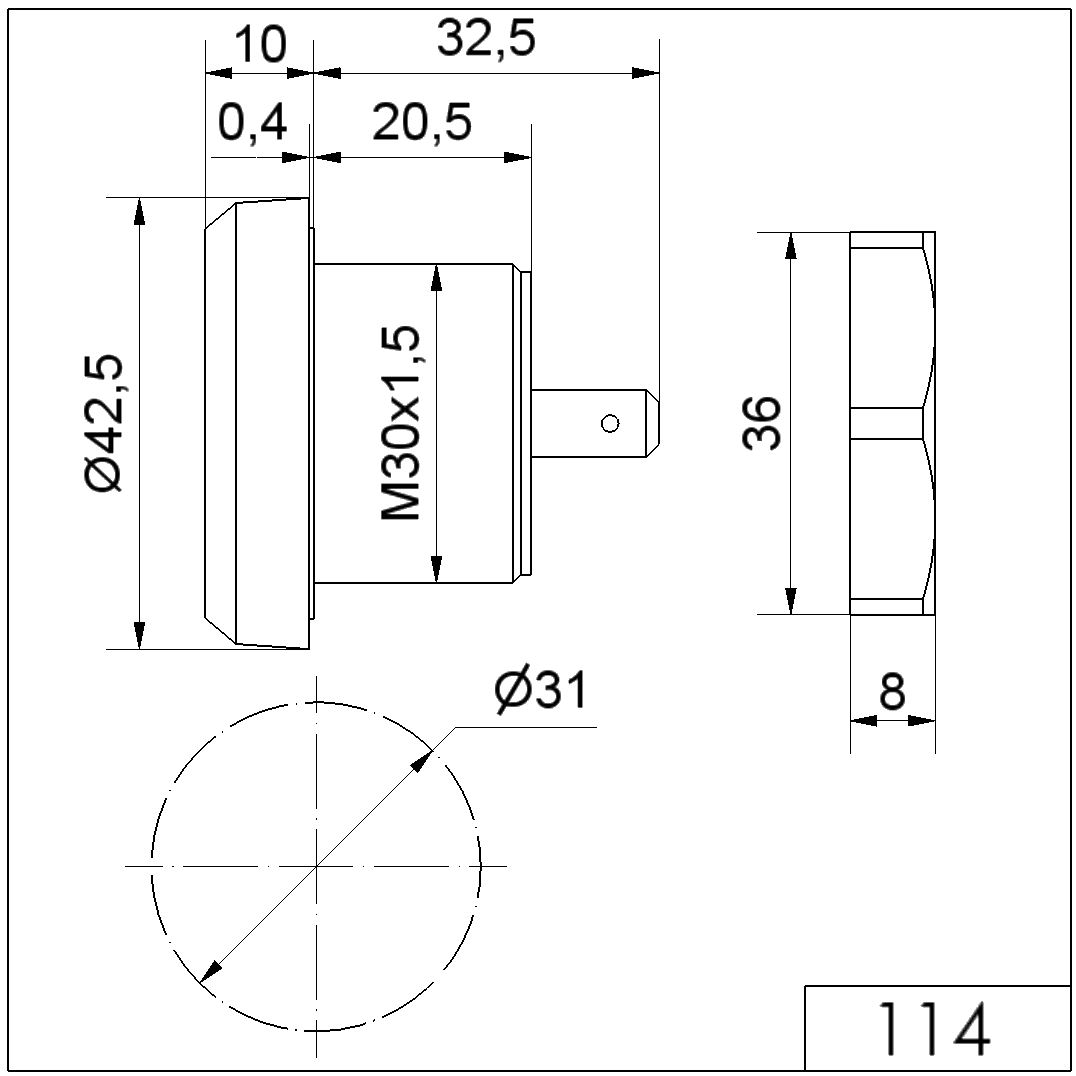

• Diameter
  43 mm
Operating voltage type
DC
Protection class
Protection class 2
Conforms with FCC
No
Working temperature minimum
-20°C
Rated inrush current
500 mA
WEEE
Yes
ICAO Certification
No
Height
43 mm
Weight with packaging
36 g
Acoustic signal image
Continuous tone
Conforms with UL
No
Protection category
IP30
Operating voltage
24V
Pollution degree
2
Conforms with IC
No
Conforms with AS-I
No
