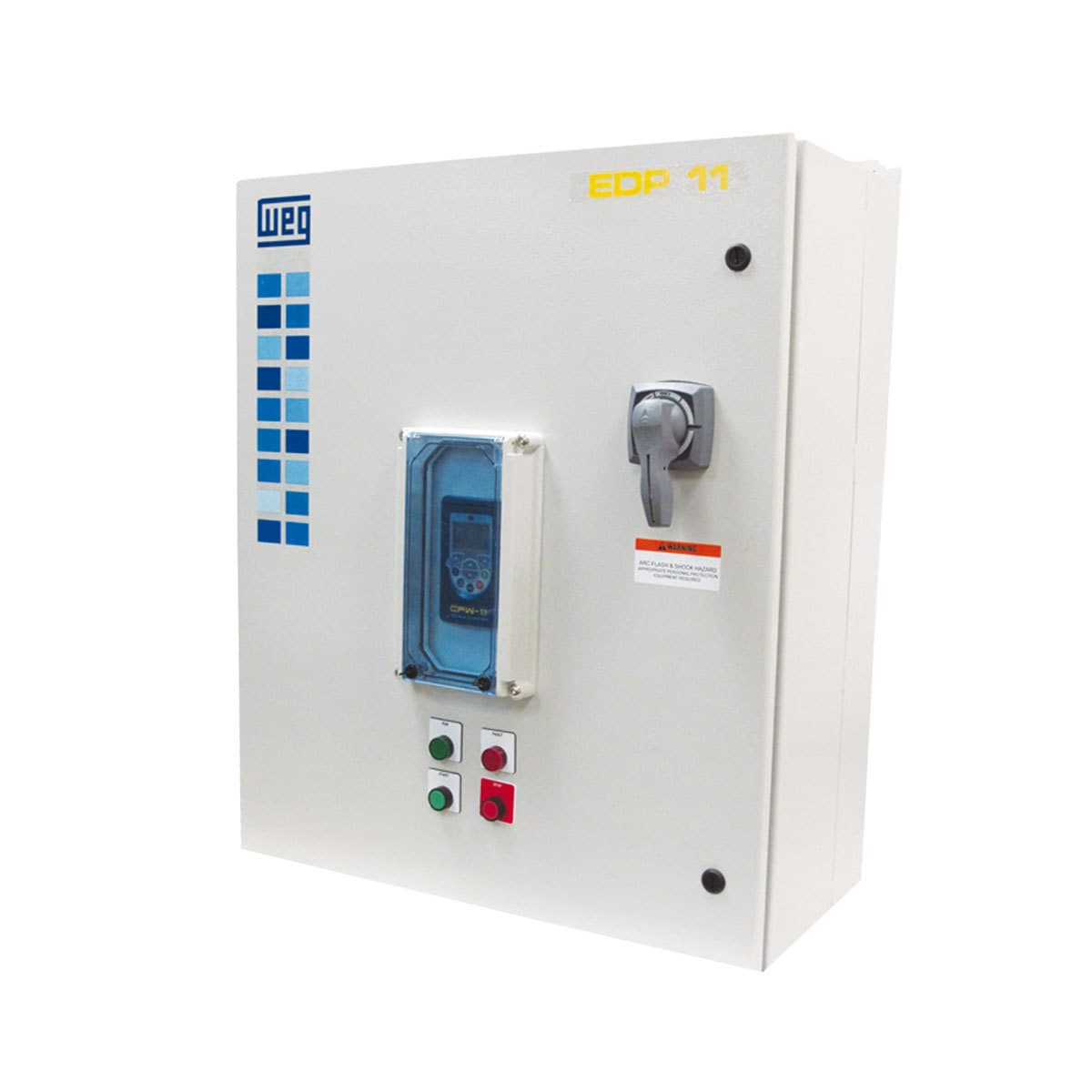

EDP11S1062GN12 WEG Variable Frequency Drives (VFD)

Product Details

• Panel type
  VFD
• Enclosure rating
  Type 12
• Control Voltage
  120 V
• Reactor/Filter
  None
• Main voltage
  460 V
• Control power transformer
  500 VA - Open
• Enclosure type
  Free Standing
• Horsepower (HP)
  950 HP
• Nominal height
  2200.0 mm / 86.6 in
• Thermal Managment
  None
• Nominal depth
  800.0 mm / 31.5 in
• Frequency
  60 Hz
• Series
  EDP11
• Nominal width
  2000.0 mm / 78.7 in
• General enclosure options
  None
• Disconnect switch type
  Circuit Breaker rotary handle disconnect
• Control options
  Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad
• SCCR rating
  5 kAIC
• Communication
  None
• Bypass type
  None
Certification
UL/cUL
