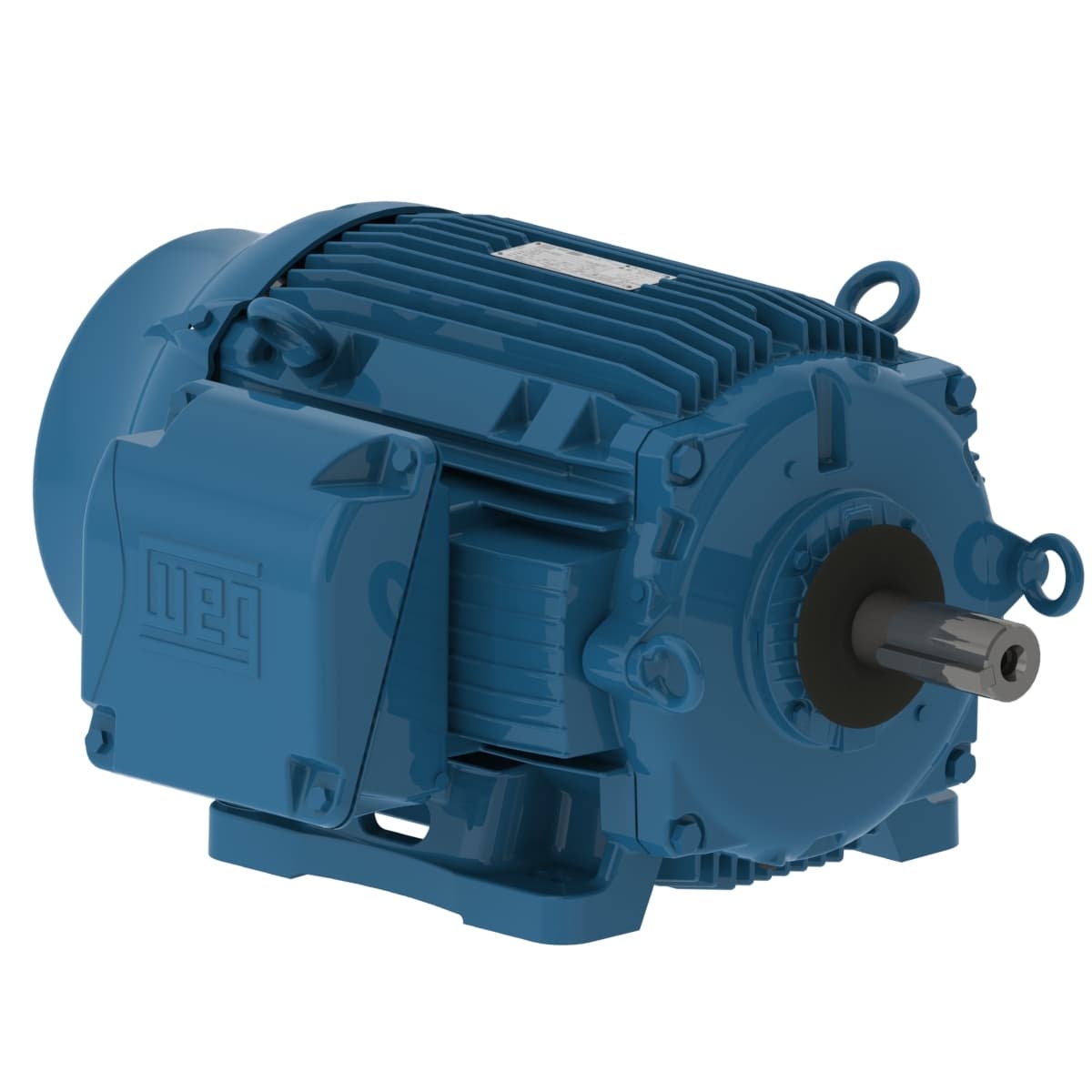

10089EP3QCT444V-W22 WEG AC Motors
Product Details
- Number of Poles 45508 Pole
- Voltage 460 V
- Output Rating 25/100 HP
- Rated Speed 1785 rpm
- Flange Type Without
- Frame 444/5T
- No load current 39.0 A
- Starting Method Direct On Line
- Flange Without
- L. R. Amperes 952 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Slip 0.83 %
- LRC 8.0x(Code J)
- Number of Poles 8/4
- Locked rotor time 32s (cold) 18s (hot)
- Synchronous speed 900/1800 rpm
- Enclosure IC411 - TEFC
- Number of poles 8/4
- Breakdown torque 300 %
- Approx. weight³ 1981 lb
- Output 100 HP (75 kW)
- Service factor 1.15
- Standard NEMA MG-1
- Rated speed 1785 rpm
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Terminal box¹ Right position
- Frequency 60 Hz
- Rated torque 294 ft.lb
- Output rating 25/100 HP
- Moment of inertia (J) 70.5 sq.ft.lb
- Temperature rise 80 K
- Voltage 460 V
- Mounting F-2
- Altitude 1000 m.a.s.l.
- Rated current 119 A
- Locked rotor torque 240 %
- Noise level² 74.0 dB(A)
- Rated voltage 460 V
- Ambient temperature -20°C to +40°C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
10089EP3QCT444V-W22 Related Documents
Manufacturer warranty
10089EP3QCT444V-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized WEG distributor, proud to partner with this globally recognized leader in industrial products and solutions. WEG stands out as a manufacturer committed to innovation, sustainability, and technological excellence, offering a vast portfolio of products that cater to diverse industrial needs. With a strong emphasis on energy efficiency and performance, WEG's produc...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
W22 Cooling Tower High Efficiency 25/100 HP 8/4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
