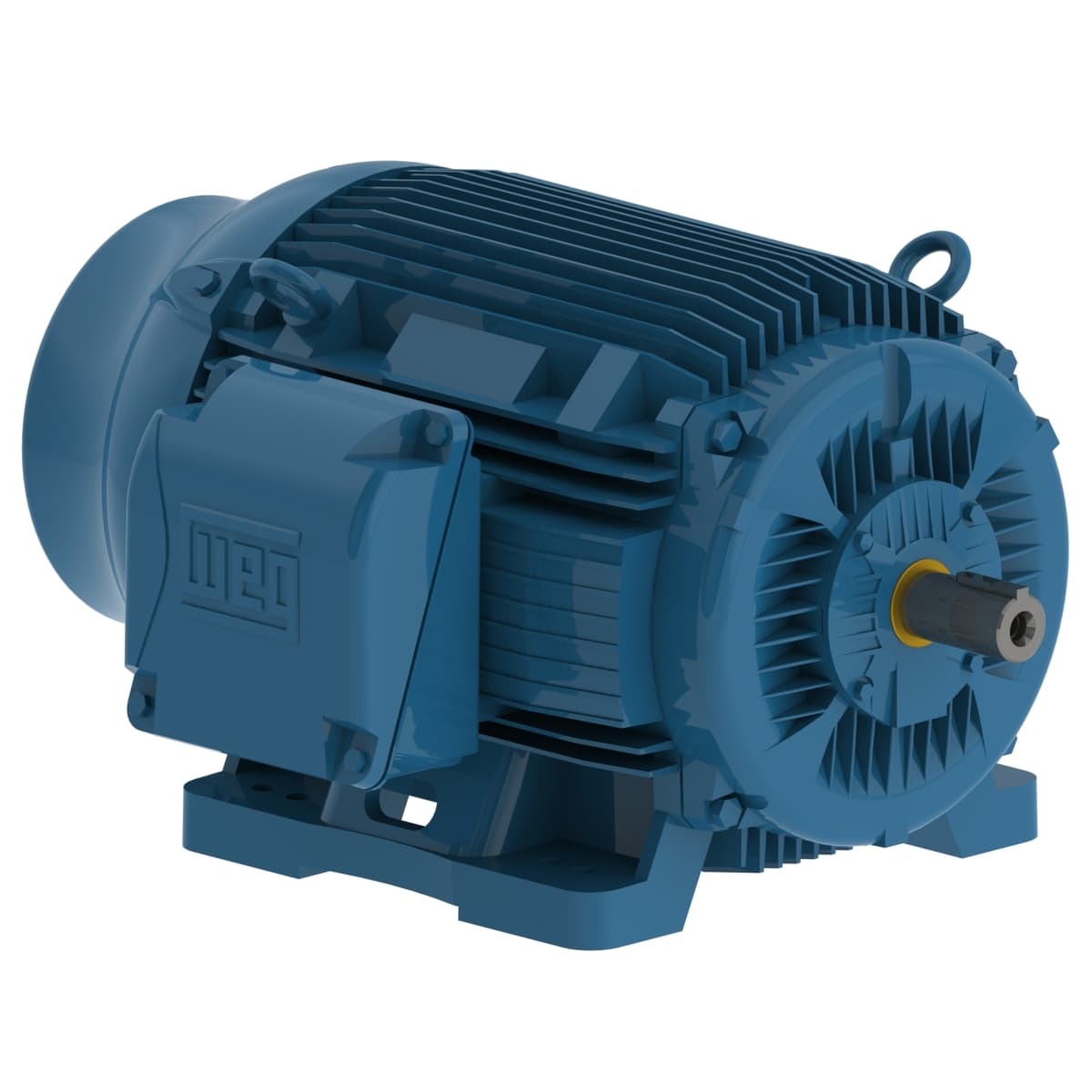

06036ST3HIE364TS-W22 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  575 V
• Output Rating
  60 HP
• Rated Speed
  3550 rpm
• Flange Type
  Without
• Rated voltage
  575 V
• LRC
  6.4x(Code G)
• Voltage
  575 V
• Flange
  Without
• Number of Poles
  2
• Breakdown torque
  250 %
• Mounting
  F-1
• Output rating
  60 HP
• Rated current
  53.6 A
• Rated torque
  88.8 ft.lb
• Altitude
  1000 m.a.s.l.
• Number of poles
  2
• Slip
  1.39 %
• Locked rotor time
  25s (cold) 14s (hot)
• Insulation Class
  F
Standard
NEMA MG-1
Approx. weight³
854 lb
L. R. Amperes
343 A
Rated speed
3550 rpm
Output
60 HP (45 kW)
Design
B
Rotation¹
Both (CW and CCW)
Noise level²
79.0 dB(A)
No load current
12.0 A
Moment of inertia (J)
10.6 sq.ft.lb
Duty Cycle
Cont.(S1)
Temperature rise
80 K
Degree of Protection
IP56
Frame
364/5TS
Locked rotor torque
190 %
Service factor
1.25
Terminal box¹
Left position
Starting Method
Direct On Line
Synchronous speed
3600 rpm
Frequency
60 Hz
Ambient temperature
-20°C to +40°C
Enclosure
IC411 - TEFC
