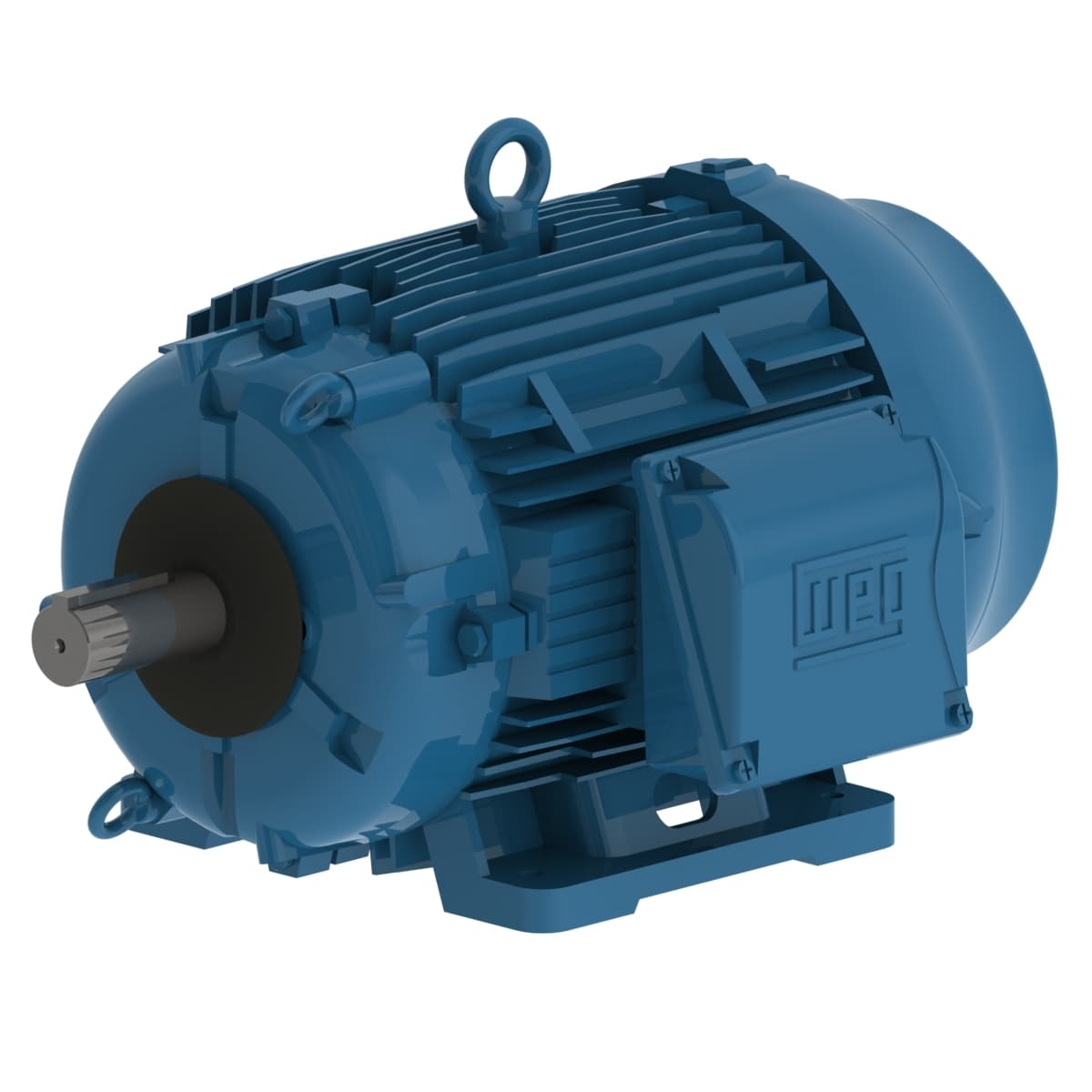

02089EP3PCT256V-W22 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  200 V
• Output Rating
  5.0/20 HP
• Rated Speed
  1770 rpm
• Flange Type
  Without
• L. R. Amperes
  426 A
• Output
  20 HP (15 kW)
• Breakdown torque
  280 %
• Degree of Protection
  IP55
• Flange
  Without
• Number of Poles
  8/4
• No load current
  26.0 A
• Altitude
  1000 m.a.s.l.
• Voltage
  200 V
• Slip
  1.67 %
• Rated torque
  59.3 ft.lb
• Moment of inertia (J)
  3.10 sq.ft.lb
• Standard
  NEMA MG-1
• Rated voltage
  200 V
• Service factor
  1.15
Rotation¹
Both (CW and CCW)
LRC
7.1x(Code J)
Enclosure
IC411 - TEFC
Noise level²
64.0 dB(A)
Insulation Class
F
Approx. weight³
2.2 lb
Frame
254/6T
Duty Cycle
Cont.(S1)
Ambient temperature
-20°C to +40°C
Terminal box¹
Right position
Rated speed
1770 rpm
Locked rotor torque
270 %
Mounting
F-2
Number of poles
8/4
Rated current
60.0 A
Locked rotor time
14s (cold) 8s (hot)
Starting Method
Direct On Line
Output rating
5.0/20 HP
Frequency
60 Hz
Temperature rise
80 K
Synchronous speed
900/1800 rpm
