02036ET3EBM256T-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 20 HP
- Rated Speed 3525 rpm
- Flange Type Without
- Slip 2.08 %
- Breakdown torque 240 %
- Rated torque 29.8 ft.lb
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Output 20 HP (15 kW)
- Starting Method Direct On Line
- Output rating 20 HP
- Rated current 46.5/23.3 A
- Frame 254/6T
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Number of poles 2
- L. R. Amperes 284/142 A
- Locked rotor torque 200 %
- Insulation Class F
- Number of Poles 2
- Moment of inertia (J) 1.54 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Approx. weight³ 389 lb
- Locked rotor time 25s (cold) 14s (hot)
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Temperature rise 80 K
- Mounting F-1
- Terminal box¹ Left position
- Rated speed 3525 rpm
- LRC 6.1x(Code G)
- Design B
- Noise level² 72.0 dB(A)
- Flange Without
- No load current 13.0/6.50 A
- Enclosure IC411 - TEFC
- Frequency 60 Hz
- Altitude 1000 m.a.s.l.
- Voltage 230/460 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
02036ET3EBM256T-W22 Related Documents
Manufacturer warranty
02036ET3EBM256T-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized WEG distributor, proud to partner with this globally recognized leader in industrial products and solutions. WEG stands out as a manufacturer committed to innovation, sustainability, and technological excellence, offering a vast portfolio of products that cater to diverse industrial needs. With a strong emphasis on energy efficiency and performance, WEG's produc...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.

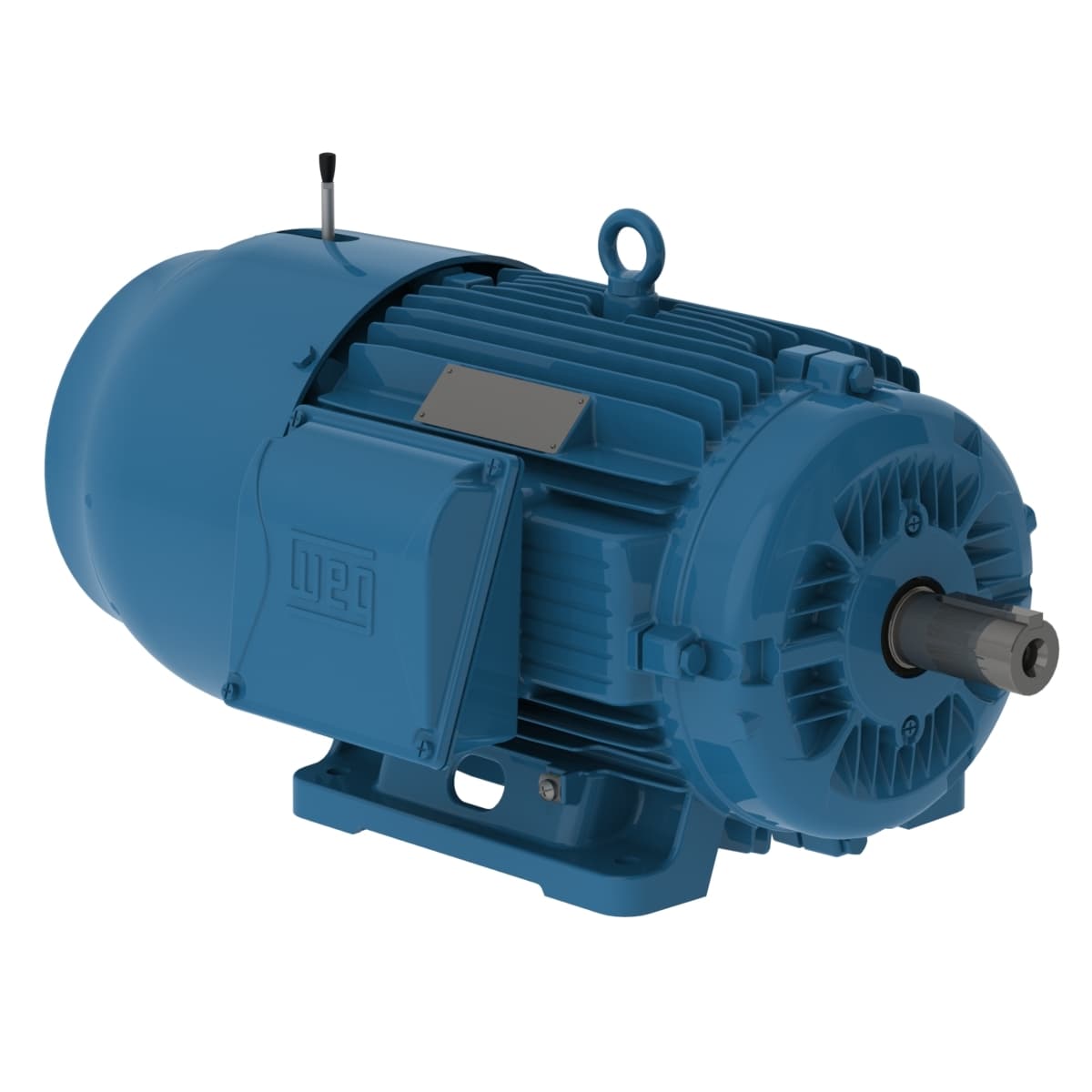

W22 Brake Motor NEMA Premium Efficiency 20 HP 2P 254/6T 3Ph 230/460 V 60 Hz IC411 - TEFC - Foot-mounted
