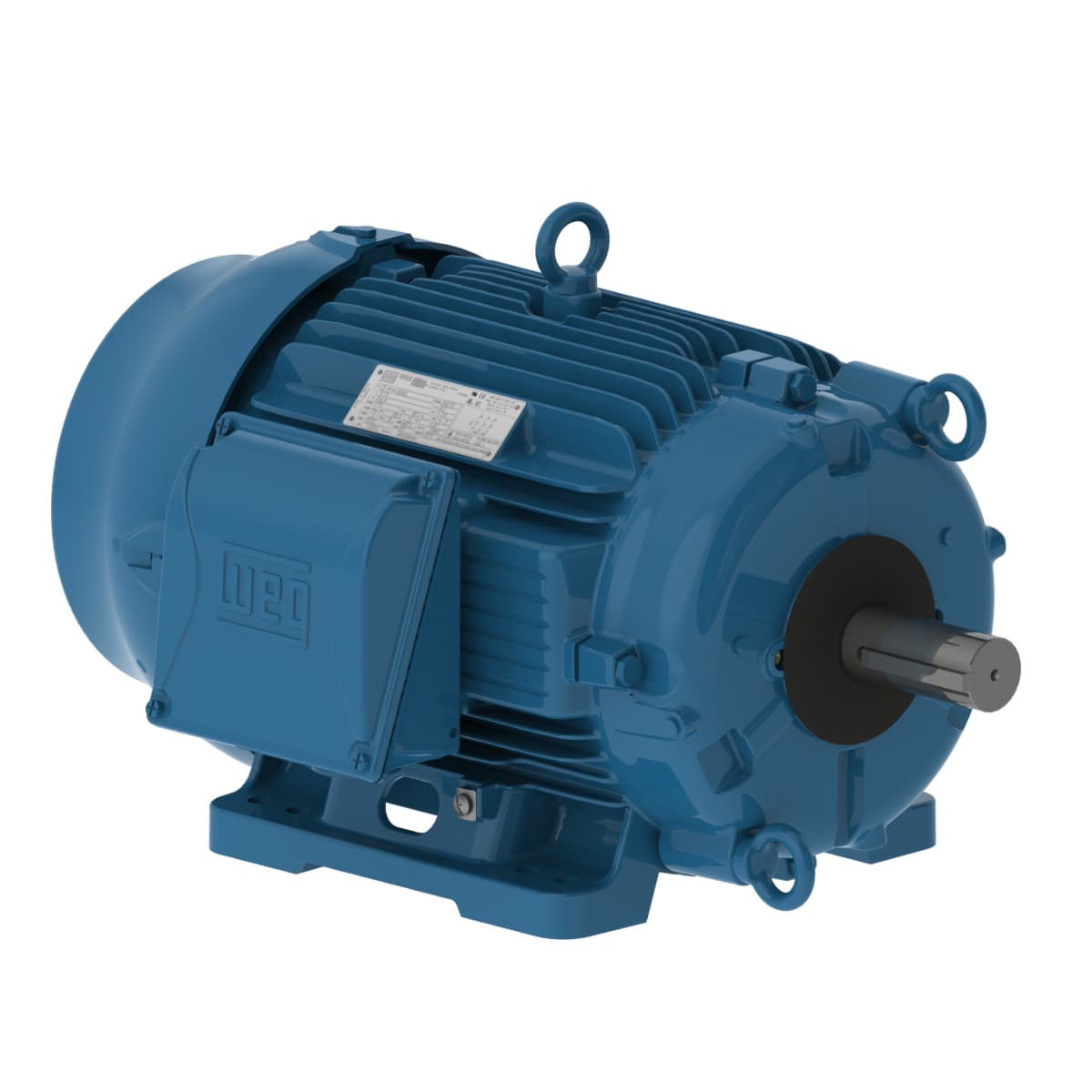

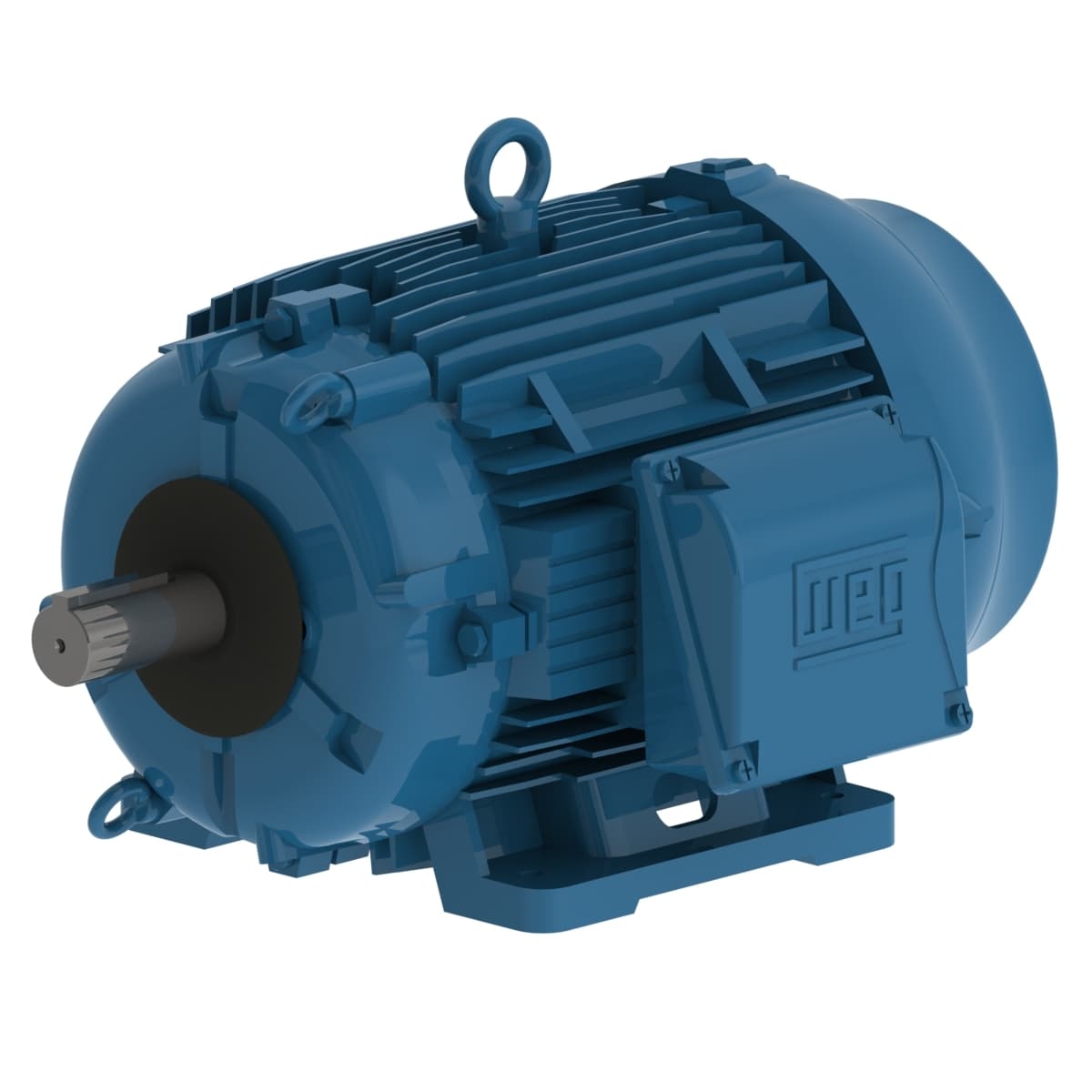

01589EP3HCT254VF1-W2 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  575 V
• Output Rating
  3.75/15 HP
• Rated Speed
  1770 rpm
• Flange Type
  Without
• LRC
  6.7x(Code H)
• Service factor
  1.15
• Number of poles
  8/4
• Slip
  1.67 %
• Rated torque
  44.5 ft.lb
• Ambient temperature
  -20°C to +40°C
• Rotation¹
  Both (CW and CCW)
• Frame
  254T
• Locked rotor time
  25s (cold) 14s (hot)
• Enclosure
  IC411 - TEFC
• Synchronous speed
  900/1800 rpm
• Rated voltage
  575 V
• Temperature rise
  80 K
• Voltage
  575 V
• Output
  15 HP (11 kW)
Locked rotor torque
250 %
Duty Cycle
Cont.(S1)
Flange
Without
Rated speed
1770 rpm
Breakdown torque
270 %
Noise level²
64.0 dB(A)
Terminal box¹
Left position
Frequency
60 Hz
No load current
6.56 A
Approx. weight³
289 lb
Degree of Protection
IP55
L. R. Amperes
102 A
Altitude
1000 m.a.s.l.
Output rating
3.75/15 HP
Rated current
15.2 A
Insulation Class
F
Mounting
F-1
Number of Poles
8/4
Moment of inertia (J)
2.62 sq.ft.lb
Starting Method
Direct On Line
Standard
NEMA MG-1
