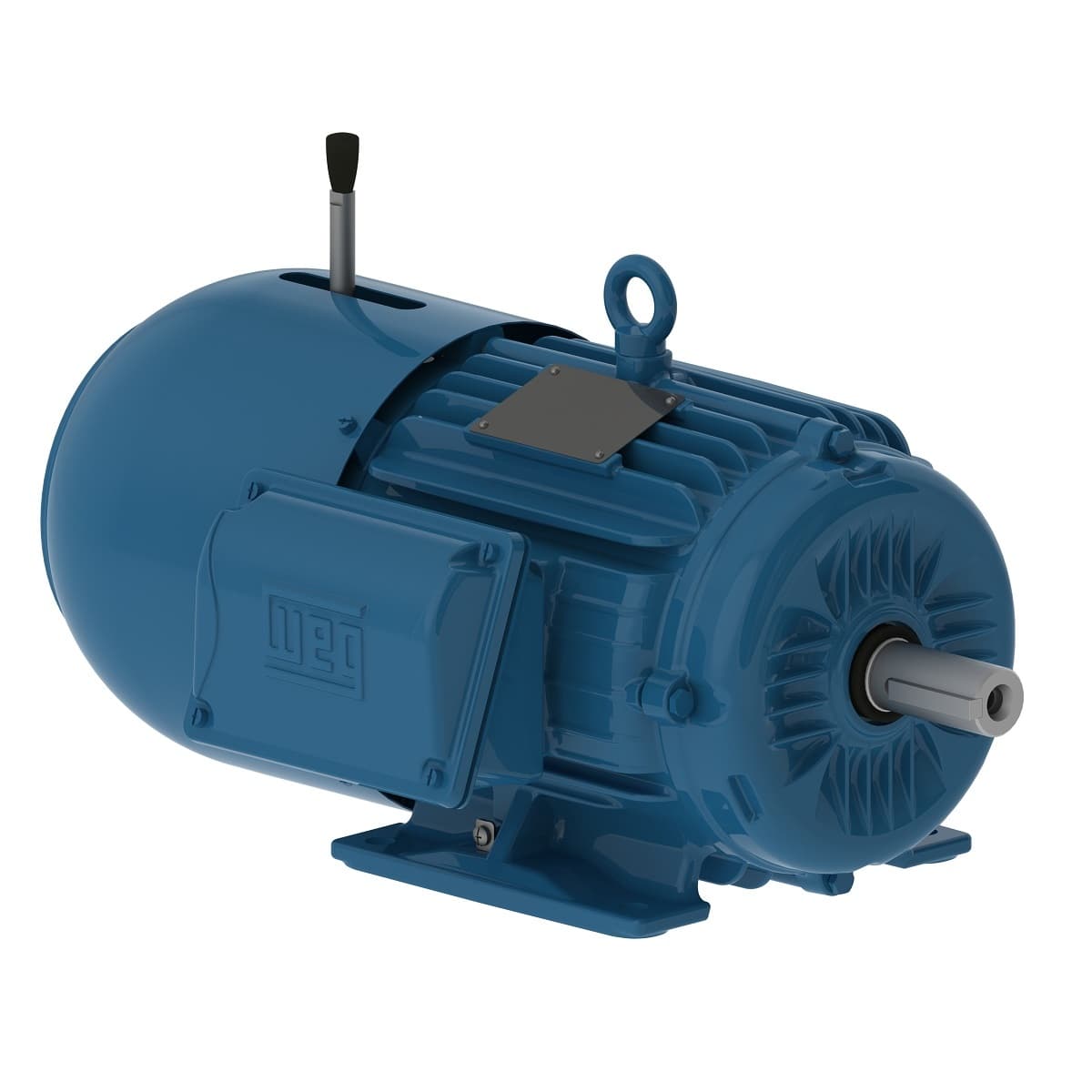

00518ET3EBM184T-W22 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  230/460 V
• Output Rating
  5 HP
• Rated Speed
  1750 rpm
• Flange Type
  Without
• Frequency
  60 Hz
• No load current
  5.80/2.90 A
• LRC
  7.5x(Code J)
• Design
  B
• Altitude
  1000 m.a.s.l.
• Terminal box¹
  Left position
• Rated torque
  15.0 ft.lb
• Number of Poles
  4
• Voltage
  230/460 V
• Slip
  2.78 %
• Locked rotor torque
  229 %
• Degree of Protection
  IP55
• Enclosure
  IC411 - TEFC
• Flange
  Without
• Frame
  182/4T
Ambient temperature
-20°C to +40°C
Approx. weight³
112 lb
Output
5 HP (3.7 kW)
Breakdown torque
290 %
Temperature rise
80 K
Output rating
5 HP
Moment of inertia (J)
0.4003 sq.ft.lb
Rated speed
1750 rpm
Duty Cycle
Cont.(S1)
Standard
NEMA MG-1
L. R. Amperes
97.4/48.7 A
Rated current
13.0/6.49 A
Rated voltage
230/460 V
Locked rotor time
27s (cold) 15s (hot)
Insulation Class
F
Starting Method
Direct On Line
Mounting
F-1
Rotation¹
Both (CW and CCW)
Noise level²
56.0 dB(A)
Synchronous speed
1800 rpm
Number of poles
4
