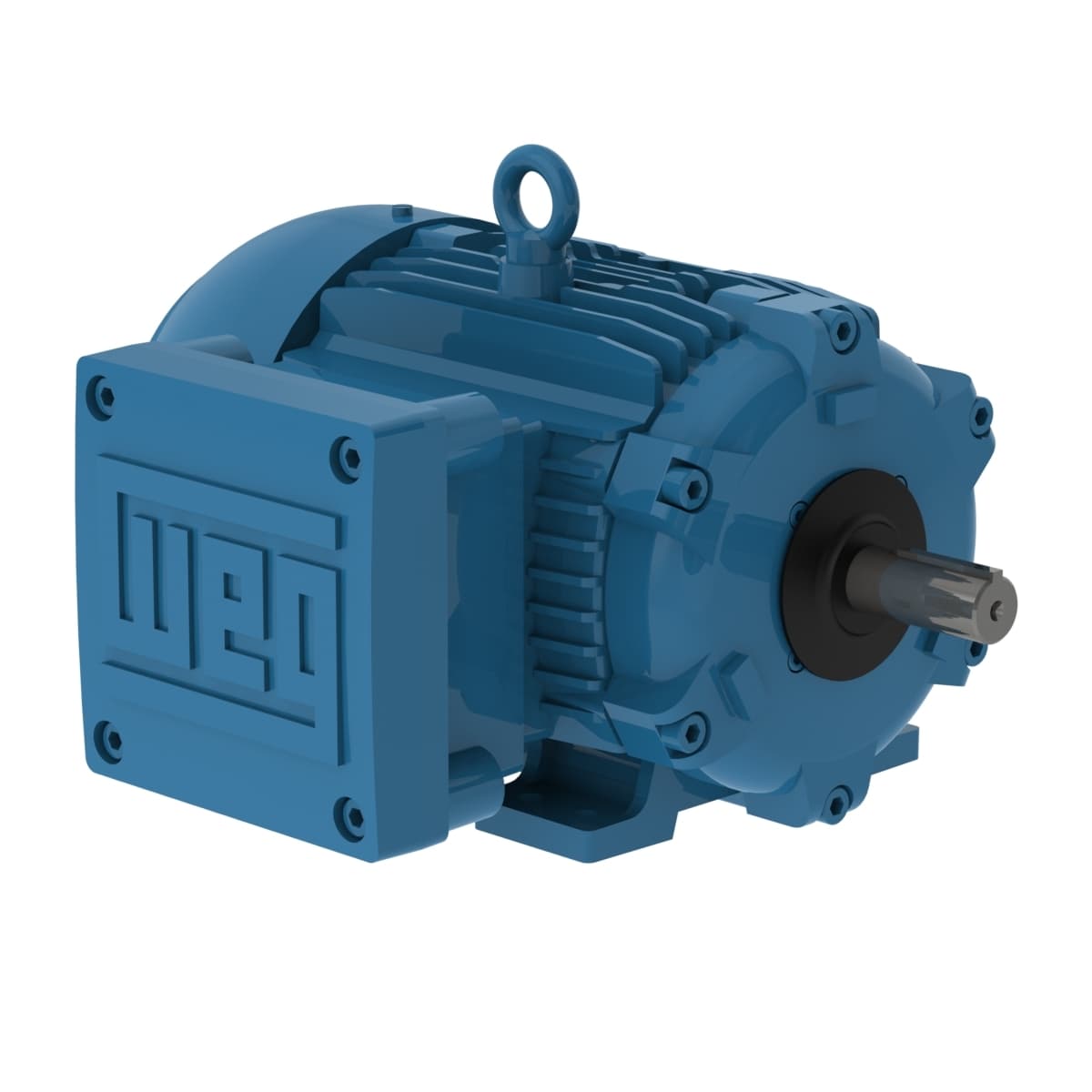

00236XT3E145T WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  2 HP
• Rated Speed
  3495 rpm
• Flange Type
  Without
• Number of Poles
  2
• Rated torque
  3.01 ft.lb
• Rotation¹
  Both (CW and CCW)
• LRC
  9.2x(Code L)
• Moment of inertia (J)
  0.0551 sq.ft.lb
• Degree of Protection
  IP55
• Terminal box¹
  Left position
• Slip
  2.92 %
• Breakdown torque
  420 %
• Mounting
  F-1
• Synchronous speed
  3600 rpm
• Frame
  143/5T
• Ambient temperature
  -20°C to +40°C
• Number of poles
  2
• Rated speed
  3495 rpm
Locked rotor time
27s (cold) 15s (hot)
Starting Method
Direct On Line
Output rating
2 HP
Rated voltage
230/460 V
Design
B
Duty Cycle
Cont.(S1)
Noise level²
68.0 dB(A)
L. R. Amperes
49.5/24.7 A
Locked rotor torque
370 %
Insulation Class
F
Approx. weight³
71.9 lb
Rated current
5.38/2.69 A
No load current
2.40/1.20 A
Altitude
1000 m.a.s.l.
Standard
NEMA MG-1
Frequency
60 Hz
Temperature rise
80 K
Voltage
230/460//380 V
Output
2 HP (1.5 kW)
Service factor
1.15
Enclosure
IC411 - TEFC
Flange
Without
