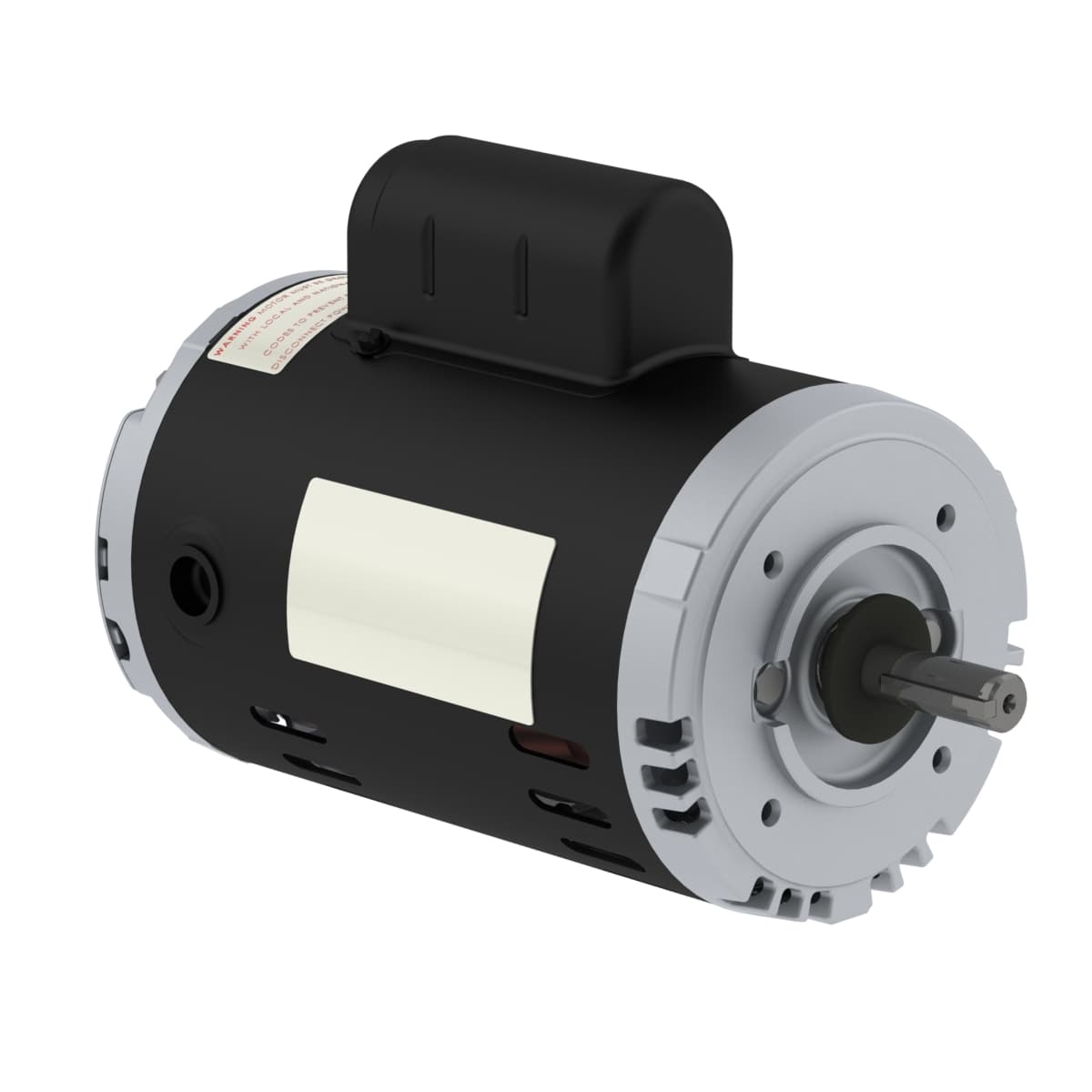

.3336OS3E56C-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  208-230/460 V
• Output Rating
  0.33 HP
• Rated Speed
  3515 rpm
• Flange Type
  C
• Output
  0.33 HP (0.25 kW)
• Locked rotor torque
  250 %
• Breakdown torque
  330 %
• Voltage
  208-230/460//190-220/380-415 V
• L. R. Amperes
  9.49-8.58/4.29 A
• LRC
  6.5x(Code M)
• Altitude
  1000 m.a.s.l.
• Terminal box¹
  Without Terminal Box
• Rated speed
  3515 rpm
• No load current
  0.776-0.900/0.450 A
• Service factor
  1.35 (1.00 @ 208V)
• Number of poles
  2
• Frame
  56C
• Noise level²
  62.0 dB(A)
• Standard
  NEMA MG-1
Rated torque
0.493 ft.lb
Moment of inertia (J)
0.0389 sq.ft.lb
Enclosure
IC01 - ODP
Slip
2.36 %
Locked rotor time
68s (cold) 38s (hot)
Starting Method
Direct On Line
Duty Cycle
Cont.(S1)
Rated voltage
208-230/460 V
Ambient temperature
-20°C to +40°C
Synchronous speed
3600 rpm
Rated current
1.46-1.32/0.660 A
Insulation Class
F
Approx. weight³
16.7 lb
Flange
C
Number of Poles
2
Mounting
F-1
Rotation¹
Both (CW and CCW)
Frequency
60 Hz
Temperature rise
80 K
Output rating
0.33 HP
