Name: PB100
Brand: Schneider Electric

NF418L1C

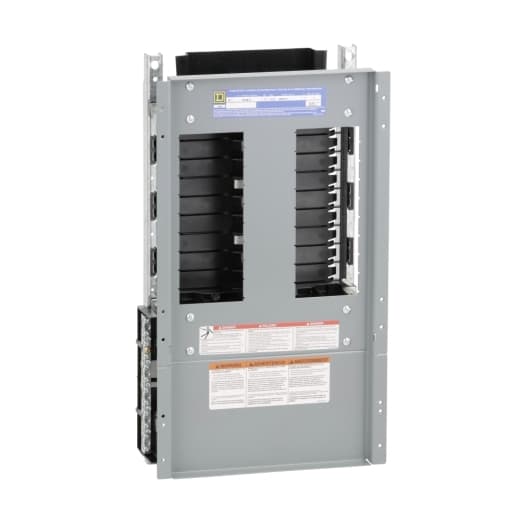

Square D by Schneider Electric NF418L1C is a panelboard designed for three-phase (3PH-4W) networks, with a rated voltage of 480Y/277Vac and a rated current of 125A. It features an 18-space panelboard interior, capable of supporting up to 18 circuits. The construction includes copper busbars and accommodates line and neutral aluminium lugs ranging from 6AWG to 2/0AWG. This panelboard is specifically engineered to facilitate a broad range of applications requiring a compact and robust power distribution solution.

Schneider Electric

MH31002P12F2200

Verified stock: 0

Schneider Electric MH31002P12F2200 is an AC servo motor characterized by a 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 128ppr SinCos encoder, a parallel key shaft with a holding brake, and double motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection is facilitated by a rotatable right-angled connector, and it supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This servo motor, part of the Servo motors sub-range, offers a degree of protection rated at IP65 and utilizes the HIPERFACE communication protocol. It achieves a rotational speed of 4000rpm, a stall torque of 6Nm, and is rated at 1.2kW or 1200W of active power, equivalent to 2.7HP. The moment of inertia is specified as 6.4kg.cm2, with a nominal torque of 4.2Nm and a maximum torque capacity of 18Nm.

Schneider Electric

MH30703P07F2200

Verified stock: 0

Schneider Electric MH30703P07F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and triple (3) motor stacks designed for optimized torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for flexible installation and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it boasts an IP65 degree of protection, utilizes the HIPERFACE communication protocol, and achieves a rotational speed of 5000rpm. The motor has a stall torque of 3.4Nm, a rated active power of 1.3kW (1300W) or 1.8HP, a moment of inertia of 4kg.cm^2, a nominal torque of 2.3Nm, and can reach a maximum torque of 10.2Nm.

Schneider Electric

LC1D806BD

Verified stock: 0

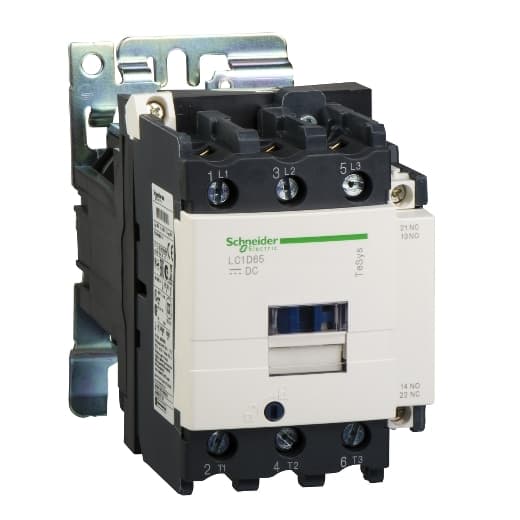

Schneider Electric LC1D806BD is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for a current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) of 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 22kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 7.5HP at 115Vac single-phase to 60HP at 575-600Vac 3-phase. The mechanical durability of the LC1D806BD is rated at 4,000,000 operations, and its electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 1000 V.

Schneider Electric

D224NRB

Verified stock: 0

Schneider Electric D224NRB is a switch-disconnector with a fused design, specifically categorized under the general duty single throw safety switches. It features a toggle operating mode and is equipped with lugs type terminals. This part falls within the safety switches (General Duty) sub-range and is designed to handle a rated current of 200 A across 2 poles. The D224NRB has dimensions of 438 mm in width, 483 mm in depth, and 737 mm in height. It is capable of operating at a phase-to-phase rated voltage of 240 V and offers a short circuit breaking rating of up to 100kA, which varies depending on the use of H, K, or R type fuses.

Schneider Electric

AC231

Verified stock: 4

Schneider Electric AC231 Flat Profile Sensor Mounting Bracket

Schneider Electric

CA3-CBL232/5M-01

Verified stock: 1

Schneider Electric - CA3-CBL232/5M-01

Schneider Electric

VM1-NNO-Q

Verified stock: 1

VIRTU SENSOR ULTRASONIC PROXIMITY

Schneider Electric

NF418L1C

Verified stock: 0

Square D by Schneider Electric NF418L1C is a panelboard designed for three-phase (3PH-4W) networks, with a rated voltage of 480Y/277Vac and a rated current of 125A. It features an 18-space panelboard interior, capable of supporting up to 18 circuits. The construction includes copper busbars and accommodates line and neutral aluminium lugs ranging from 6AWG to 2/0AWG. This panelboard is specifically engineered to facilitate a broad range of applications requiring a compact and robust power distribution solution.

Schneider Electric

MH31002P12F2200

Verified stock: 0

Schneider Electric MH31002P12F2200 is an AC servo motor characterized by a 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 128ppr SinCos encoder, a parallel key shaft with a holding brake, and double motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection is facilitated by a rotatable right-angled connector, and it supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This servo motor, part of the Servo motors sub-range, offers a degree of protection rated at IP65 and utilizes the HIPERFACE communication protocol. It achieves a rotational speed of 4000rpm, a stall torque of 6Nm, and is rated at 1.2kW or 1200W of active power, equivalent to 2.7HP. The moment of inertia is specified as 6.4kg.cm2, with a nominal torque of 4.2Nm and a maximum torque capacity of 18Nm.

Schneider Electric

MH30703P07F2200

Verified stock: 0

Schneider Electric MH30703P07F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and triple (3) motor stacks designed for optimized torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for flexible installation and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it boasts an IP65 degree of protection, utilizes the HIPERFACE communication protocol, and achieves a rotational speed of 5000rpm. The motor has a stall torque of 3.4Nm, a rated active power of 1.3kW (1300W) or 1.8HP, a moment of inertia of 4kg.cm^2, a nominal torque of 2.3Nm, and can reach a maximum torque of 10.2Nm.

Schneider Electric

LC1D806BD

Verified stock: 0

Schneider Electric LC1D806BD is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for a current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) of 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 22kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 7.5HP at 115Vac single-phase to 60HP at 575-600Vac 3-phase. The mechanical durability of the LC1D806BD is rated at 4,000,000 operations, and its electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 1000 V.

Schneider Electric

D224NRB

Verified stock: 0

Schneider Electric D224NRB is a switch-disconnector with a fused design, specifically categorized under the general duty single throw safety switches. It features a toggle operating mode and is equipped with lugs type terminals. This part falls within the safety switches (General Duty) sub-range and is designed to handle a rated current of 200 A across 2 poles. The D224NRB has dimensions of 438 mm in width, 483 mm in depth, and 737 mm in height. It is capable of operating at a phase-to-phase rated voltage of 240 V and offers a short circuit breaking rating of up to 100kA, which varies depending on the use of H, K, or R type fuses.

Schneider Electric

AC231

Verified stock: 4

Schneider Electric AC231 Flat Profile Sensor Mounting Bracket

Schneider Electric

CA3-CBL232/5M-01

Verified stock: 1

Schneider Electric - CA3-CBL232/5M-01

Schneider Electric

VM1-NNO-Q

Verified stock: 1

VIRTU SENSOR ULTRASONIC PROXIMITY

Schneider Electric

NF418L1C

Verified stock: 0

Square D by Schneider Electric NF418L1C is a panelboard designed for three-phase (3PH-4W) networks, with a rated voltage of 480Y/277Vac and a rated current of 125A. It features an 18-space panelboard interior, capable of supporting up to 18 circuits. The construction includes copper busbars and accommodates line and neutral aluminium lugs ranging from 6AWG to 2/0AWG. This panelboard is specifically engineered to facilitate a broad range of applications requiring a compact and robust power distribution solution.

Schneider Electric

MH31002P12F2200

Verified stock: 0

Schneider Electric MH31002P12F2200 is an AC servo motor characterized by a 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. It features an absolute multi-turn 128ppr SinCos encoder, a parallel key shaft with a holding brake, and double motor stacks designed for optimized torque and speed of rotation with medium inertia. The connection is facilitated by a rotatable right-angled connector, and it supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. This servo motor, part of the Servo motors sub-range, offers a degree of protection rated at IP65 and utilizes the HIPERFACE communication protocol. It achieves a rotational speed of 4000rpm, a stall torque of 6Nm, and is rated at 1.2kW or 1200W of active power, equivalent to 2.7HP. The moment of inertia is specified as 6.4kg.cm2, with a nominal torque of 4.2Nm and a maximum torque capacity of 18Nm.

Schneider Electric

MH30703P07F2200

Verified stock: 0

Schneider Electric MH30703P07F2200 is an AC servo motor characterized by its 70x70mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 16ppr SinCos encoder, a smooth shaft with a holding brake, and triple (3) motor stacks designed for optimized torque and speed of rotation, catering to medium-inertia applications. It comes with a rotatable right-angled connector for flexible installation and supports a wide supply voltage range from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it boasts an IP65 degree of protection, utilizes the HIPERFACE communication protocol, and achieves a rotational speed of 5000rpm. The motor has a stall torque of 3.4Nm, a rated active power of 1.3kW (1300W) or 1.8HP, a moment of inertia of 4kg.cm^2, a nominal torque of 2.3Nm, and can reach a maximum torque of 10.2Nm.

Schneider Electric

LC1D806BD

Verified stock: 0

Schneider Electric LC1D806BD is a magnetic contactor from the Deca sub-range, designed for ring-lugs connections. It features 3 poles (3P; 3NO) and is rated for a current of 125A (AC-1) and 80A (440Vac; AC-3). This contactor is suitable for DIN rail mounting and has a net width of 85 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) of 20.4-26.4Vdc (24Vdc nom.; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Its rated active power ranges from 22kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power in horsepower (HP) varies from 7.5HP at 115Vac single-phase to 60HP at 575-600Vac 3-phase. The mechanical durability of the LC1D806BD is rated at 4,000,000 operations, and its electrical durability with load is 1,500,000 operations. The rated voltage (AC) phase-to-phase is 1000 V.

Schneider Electric

D224NRB

Verified stock: 0

Schneider Electric D224NRB is a switch-disconnector with a fused design, specifically categorized under the general duty single throw safety switches. It features a toggle operating mode and is equipped with lugs type terminals. This part falls within the safety switches (General Duty) sub-range and is designed to handle a rated current of 200 A across 2 poles. The D224NRB has dimensions of 438 mm in width, 483 mm in depth, and 737 mm in height. It is capable of operating at a phase-to-phase rated voltage of 240 V and offers a short circuit breaking rating of up to 100kA, which varies depending on the use of H, K, or R type fuses.

Schneider Electric

PB100 Schneider Electric Industrial Automation Components

Part#:PB100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product description

Product condition

Similar products from: Schneider Electric Industrial Automation Components

CA3-CBL232/5M-01

Schneider Electric

AC231

Schneider Electric

VM1-NNO-Q

Schneider Electric

PB100 Schneider Electric
