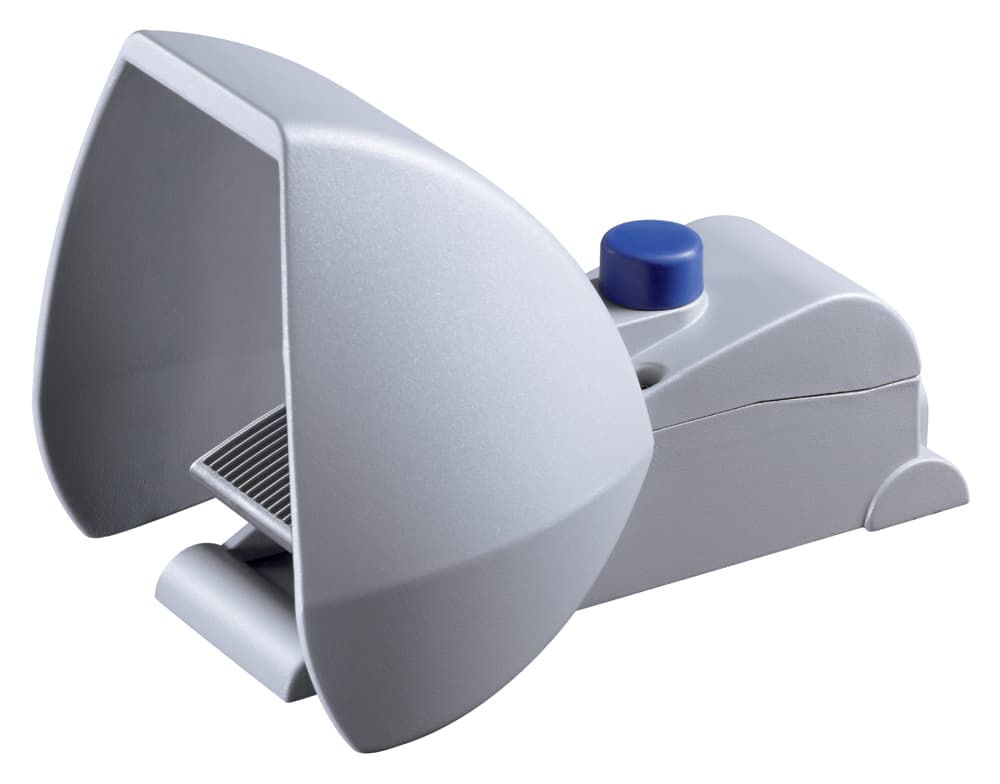

TFH232-11 Schmersal Foot Switches
Part#:TFH232-11
Alt. Part#:151181529
Manufacturer:Schmersal
Category:Foot Switches
Product Lifecycle:Active
Product description
TFH232-11 Schmersal - Foot switch; 2 Contacts; Protective shield with wide opening; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types
Product Details
- Gross weight 1,630 g
- Number of openers 1
- Ambient temperature, minimum -25 °C
- Standards BG-GS-ET-15, DIN VDE 0660-200, EN 60947-5-1
- Mechanical life, minimum 1,000,000 Operations
- Utilisation category AC-15 4 A
- Material of the cover Aluminium
- Terminal Connector Screw connection
- Ambient temperature, maximum +70 °C
- Switching principle Slow action
- Protective shield Yes
- Number of shutters 1
- Height 189 mm
- Material of the protective shield Aluminium
- Colour of the housing RAL 9006 (White aluminum)
- Depth 274 mm
- Thermal test current 10 A
- Material of the pedal Glass-fibre, reinforced thermoplastic
- Cable section, maximum 1 x 2.5 mm²
- Rated insulation voltage Ui 500 V
- Utilisation category DC-13 1 A
- Enclosure material Aluminium
- Probing possible Yes
- Width 170 mm
- Rated impulse withstand voltage Uimp 6 kV
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Switching element NO contact, NC contact
- Degree of protection IP65 to EN 60529
- Enclosure coating material powder-coated
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TFH232-11 on Applied Automation is $231.00. Order now.
TFH232-11 Related Documents
Manufacturer warranty
TFH232-11 Schmersal
$231.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$231.00
$231.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of TFH232-11?
Purchase the TFH232-11 from Applied Automation at the price of $231.00. Order today.
Out if stock but available for backorder.
TFH232-11 Schmersal - Foot switch; 2 Contacts; Protective shield with wide opening; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types
