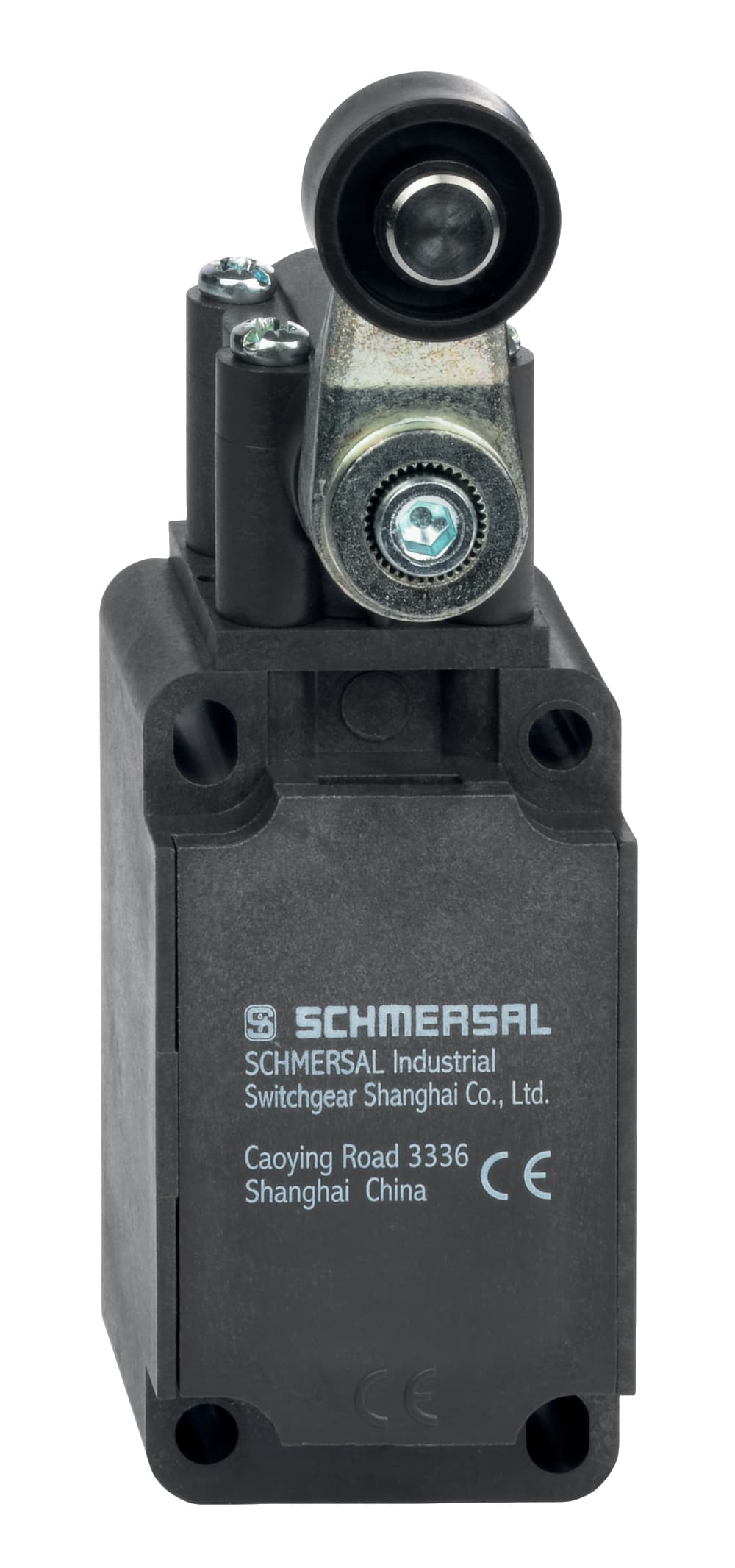

T4VH 336-11Z-M20 Schmersal Electronic Components

Product Details

• Lever material
  Metal film
• Actuating element
  Roller lever
• Ambient temperature, minimum
  -30 °C
• Width of sensor
  40.5 mm
• Material of the contacts, electrical
  Silver
• Roller material
  Plastic
• Note (Switchover time)
  Switchover time in accordance with actuating speed
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Thermal test current
  10 A
• Switching principle
  Creep circuit element
• Number of safety contacts
  1
• Number of auxiliary contacts
  1
• Length of sensor
  60.5 mm
• Ambient temperature, maximum
  +80 °C
• Switching element
  NO contact, NC contact
• Gross weight
  160 g
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Actuating torque, minimum
  0.3 Nm
• Height of sensor
  129.5 mm
• Housing construction form
  Norm construction design
Cable section, minimum
0.75 mm²
Actuating speed, maximum
2.5 m/s
Rated insulation voltage Ui
500 V
Switching frequency
5,000 /h
Safety functions
Yes
Note (Actuating speed)
Actuating speed with actuating angle 30° to switch axis
Cable section, maximum
2.5 mm²
Rated impulse withstand voltage Uimp
6 kV
Actuator type to DIN EN 50041
A
Terminal Connector
Screw connection
Utilisation category AC-15
230 VAC
Mechanical life, minimum
30,000,000 Operations
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Required rated short-circuit current to EN 60947-5-1
1,000 A
Bounce duration, maximum
2 ms
Utilisation category DC-13
4 A
