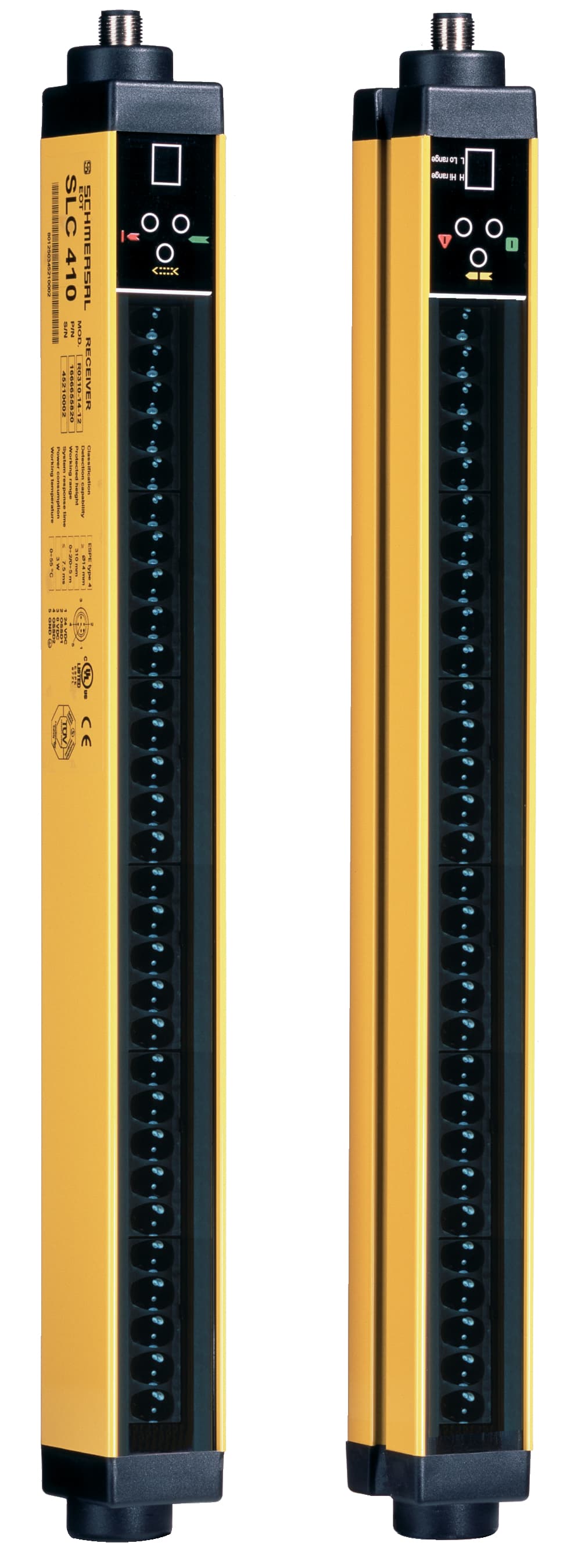

SLG 210-E/R0800-03-RFLC Schmersal Electronic Components

Product Details

• Integral System Diagnostics, status
  Yes
• Range, protection field, maximum
  8,000 mm
• Storage and transport temperature, minimum
  -20 °C
• Length of cable, maximum
  100 m
• Reaction time, maximum
  3 ms
• Range, protection field, minimum
  0 mm
• Height of sensor
  1,011 mm
• Electrical power consumption of the transmitter
  2 W
• Standards
  IEC/EN 61496-1/-2
• Restart interlock (manual reset)
  Yes
• Terminal Connector
  Connector
• Ambient temperature, maximum
  +55 °C
• Enclosure material
  Aluminium
• Integral System Diagnostics
  Yes
• Terminal connector, Recipient
  Connector plug M12, 8-pole
• Voltage type
  DC (direct current)
• Beam coding available
  Yes
• Wave length of the sensor
  950 nm
• Degree of protection
  IP65 to EN 60529
• Switching voltage OSSD, HIGH signal
  24 V
Gross weight
4,670 g
Number of fail-safe digital outputs
2
Length of sensor
35 mm
Storage and transport temperature, maximum
+70 °C
Electrical power consumption of the receiver
3 W
Beam distance
400 mm
Number of beams
3
Terminal, Connector, Transmitter
Connector plug M12, 5-pole
Ambient temperature, minimum
+0 °C
Versions
p-type
Design of multi-ray photoelectric barrier
Emitter and receiver, separated
Height of the protection field
810 mm
Width of sensor
45 mm
Protection rating
III
Output current, (fail-safe output), maximum
0.5 A
