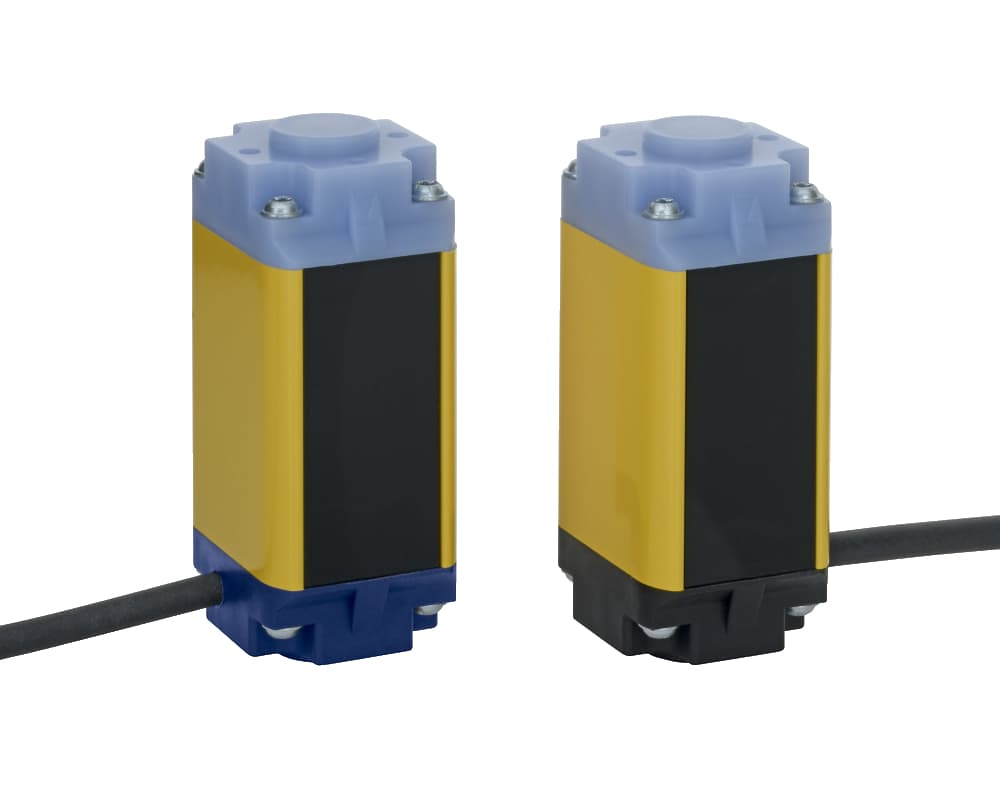

SLB240-ER-3-LST Schmersal Safety Light Curtains

Product Details

• Gross weight
  180 g
• Integral System Diagnostics
  Yes
• Terminal connector, Recipient
  Cable with connector plug M12, 5-pole
• Storage and transport temperature, minimum
  -30 °C
• Output current, (fail-safe output), maximum
  0.2 A
• Enclosure material
  Aluminium
• Number of fail-safe digital outputs
  2
• Length
  33 mm
• Storage and transport temperature, maximum
  +70 °C
• Electrical power consumption of the transmitter, maximum
  5 W
• Beam coding available
  Yes
• Range, protection field, minimum
  300 mm
• Height
  72 mm
• Ambient temperature, minimum
  -30 °C
• Switching voltage OSSD, HIGH signal
  24 V
• Reaction time, minimum
  7 ms
• Restart interlock (manual reset)
  Yes
• Number of beams
  1
• Degree of protection
  IP67 to EN 60529
• Voltage type
  DC (direct current)
Reaction time, maximum
22 ms
Range, protection field, maximum
15,000 mm
Terminal, Connector, Transmitter
Cable with connector plug M12, 4-pole
Electrical power consumption of the receiver, maximum
5 W
Coding, light barrier beam
3
Wave length of the sensor
880 nm
Ambient temperature, maximum
+50 °C
Versions
p-type
Standards
EN 61496-1, EN 61496-2
Integral System Diagnostics, status
Yes
Detection ability for test bodies at v = 1.6 m/s
40 mm
Width
27.8 mm
Protection rating
III
Length of cable, maximum
100 m
