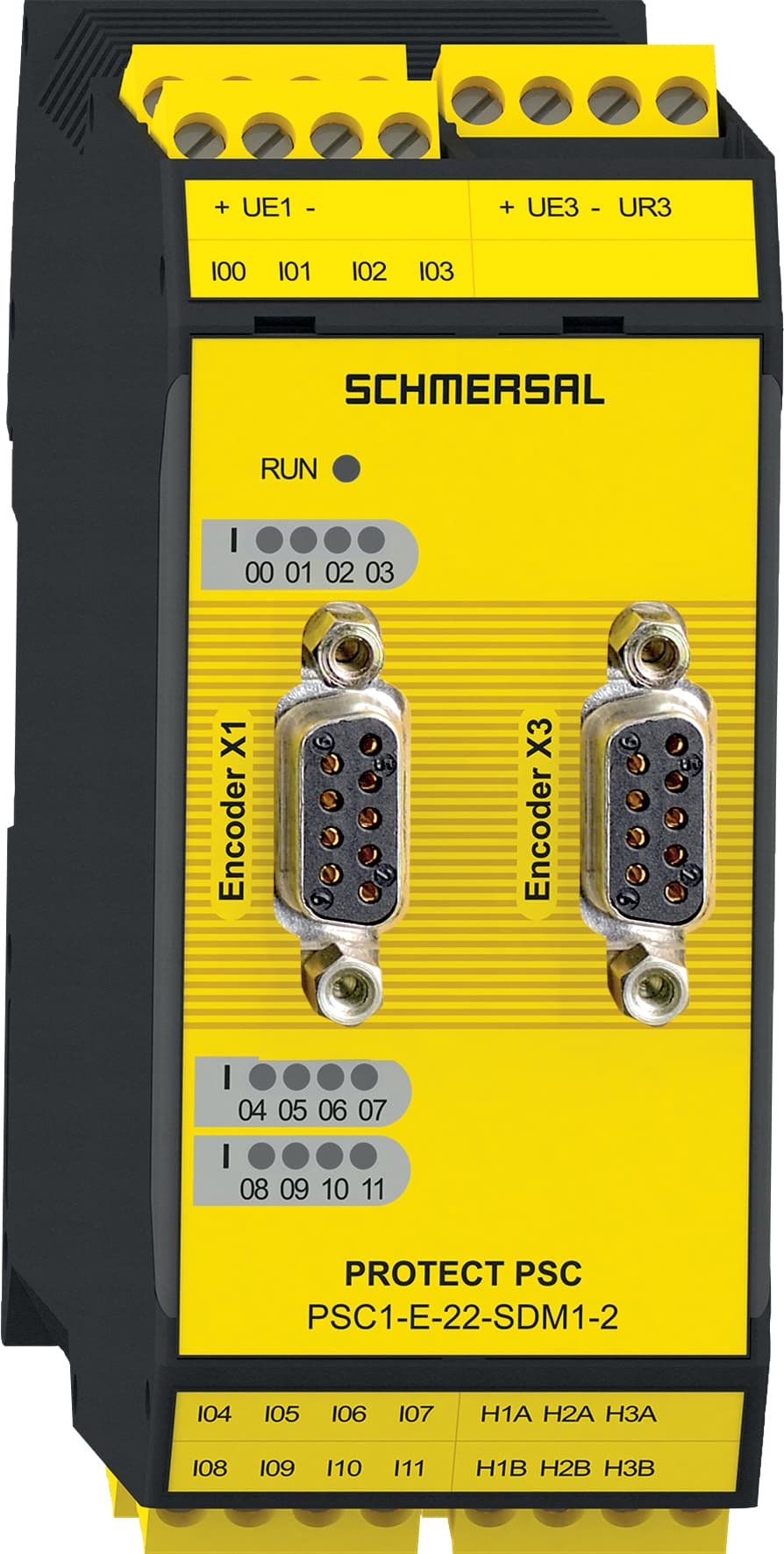

PSC1-E-22-SDM1-2 Schmersal Safety Accessories
Part#:PSC1-E-22-SDM1-2
Alt. Part#:103008461
Manufacturer:Schmersal
Category:Safety Accessories
Product Lifecycle:Active
Product description
PSC1-E-22-SDM1-2 Schmersal - Safety controllers; PROTECT PSC1; Expansion module for the product series PSC1-C-100; Safe drive monitoring according to EN 61800-5-2 (SDM – Safe Drive Monitoring) for 1 axis; supports encoder: TTL, sin/cos, SSI, HTL, Resolver; 12 digital fail-safe inputs
Product Details
- Cable section, minimum 0.2 mm²
- Degree of protection IP20
- Operating voltage, minimum 20.4 VDC
- Gross weight 405.1 g
- Storage and transport temperature, maximum +70 °C
- Operating voltage, maximum 28.8 VDC
- Mounting can be clipped into standard rail
- Relative humidity, maximum 85 %
- Note (Relative humidity) non-condensing
- Drive monitoring, encoder typ SSI, HTL, TTL
- Width 45 mm
- Ambient temperature, minimum +0 °C
- Degree of pollution to IEC/EN 60664-1 2
- Wire cross-section, minimum 24 AWG
- Depth 115 mm
- Overvoltage category III
- Number of axis monitoring, max. 1
- Cable section, maximum 2.5 mm²
- Ambient temperature, maximum +50 °C
- Zulässige Aufstellhöhe über NN, maximum 2,000 m
- Terminal (mechanical) Removable screw terminals
- Height 100 mm
- Storage and transport temperature, minimum -25 °C
- Electromagnetic compatibility DIN EN 62061, DIN EN 61800-3
- EMC rating DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
- Wire cross-section, maximum 12 AWG
- Number of digital fail-safe inputs 12
- Relative humidity, minimum 5 %
- Interfering radiation DIN EN 61000-6-4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
