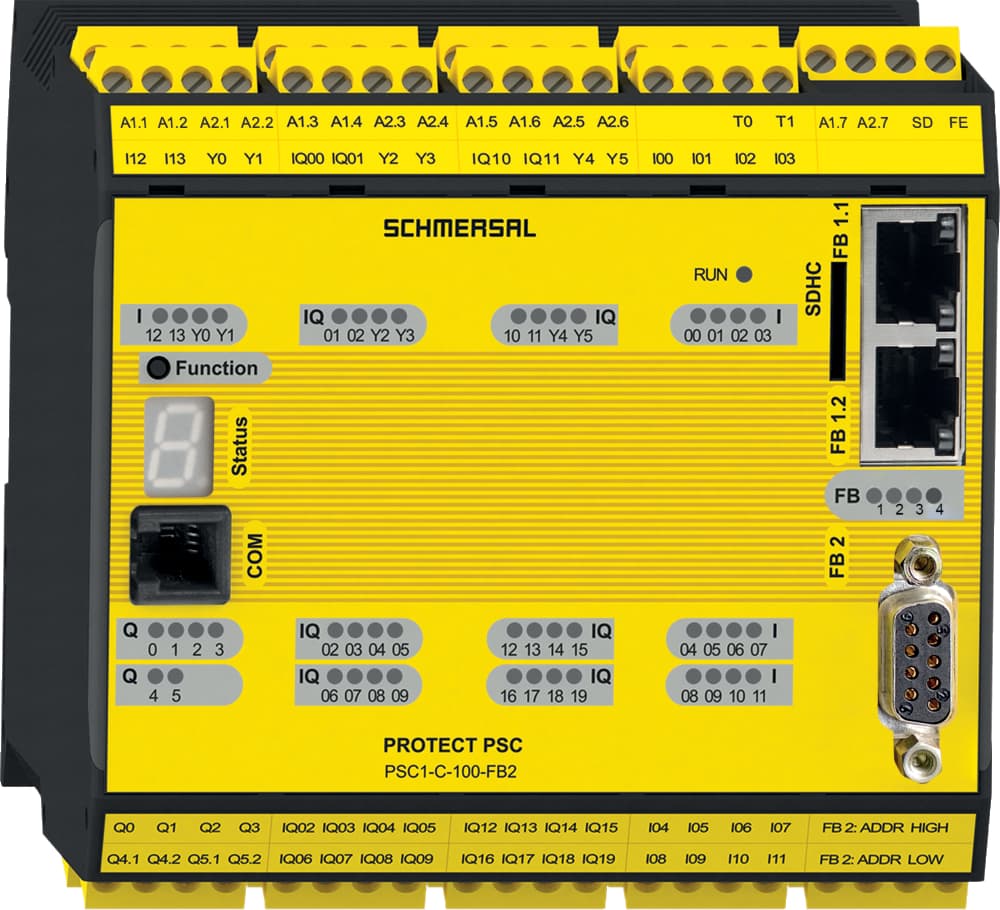

PSC1-C-100-FB2 Schmersal Safety Controllers
Part#:PSC1-C-100-FB2
Alt. Part#:103008453
Manufacturer:Schmersal
Category:Safety Controllers
Product Lifecycle:Active
Product description
PSC1-C-100-FB2 Schmersal - Safety controllers; PROTECT PSC1; Memory card; Expandable with safe remote IO modules; Safe cross communication between up to 4 master controllers; conversion of the field bus protocols by software; integrated SD-Bus-Gateway; Modularly expandable to up to
Product Details
- Master-Slave-Kommunikation Yes
- Cable section, minimum 0.2 mm²
- Cable section, maximum 2.5 mm²
- Relative humidity, maximum 85 %
- Voltage, Utilisation category AC15 230 VAC
- Interfering radiation DIN EN 61000-6-4
- Number of digital fail-safe in-/outputs 20
- Number of fail-safe digital outputs 4
- Wire cross-section, minimum 24 AWG
- Operating voltage, minimum 20.4 VDC
- Current, Utilisation category AC-15 2 A
- Master-Master-Kommunikation Yes
- SD Card Slot Yes
- Wire cross-section, maximum 12 AWG
- Relative humidity, minimum 5 %
- Terminal (mechanical) Removable screw terminals
- Mounting can be clipped into standard rail
- Ambient temperature, minimum +0 °C
- Overvoltage category III
- Versions short-circuit proof, p-type (Q2 und Q3)
- EMC rating DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
- Gross weight 400 g
- Number of digital fail-safe inputs 14
- Depth 115 mm
- Storage and transport temperature, minimum -25 °C
- Operating voltage, maximum 28.8 VDC
- Voltage, Utilisation category DC13 24 VDC
- Number of pulse outputs (test pulse output) 6
- Number of signalling outputs 6
- Degree of protection IP20
- Zulässige Aufstellhöhe über NN, maximum 2,000 m
- Degree of pollution to IEC/EN 60664-1 2
- Number of relay outputs (1-channel) 2
- Height 100 mm
- Ambient temperature, maximum +50 °C
- Note (Relative humidity) non-condensing
- Rated operating current (safety outputs) 2,000 mA
- Integrated SD gateway Yes
- Anzahl der Erweiterungsbaugruppen, maximal 8
- Width 112.5 mm
- Storage and transport temperature, maximum +70 °C
- Designation, Communication interface DSUB
- Field bus CANopen, PROFIBUS
- Current, Utilisation category DC13 2 A
- Electromagnetic compatibility DIN EN 62061, DIN EN 61800-3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
