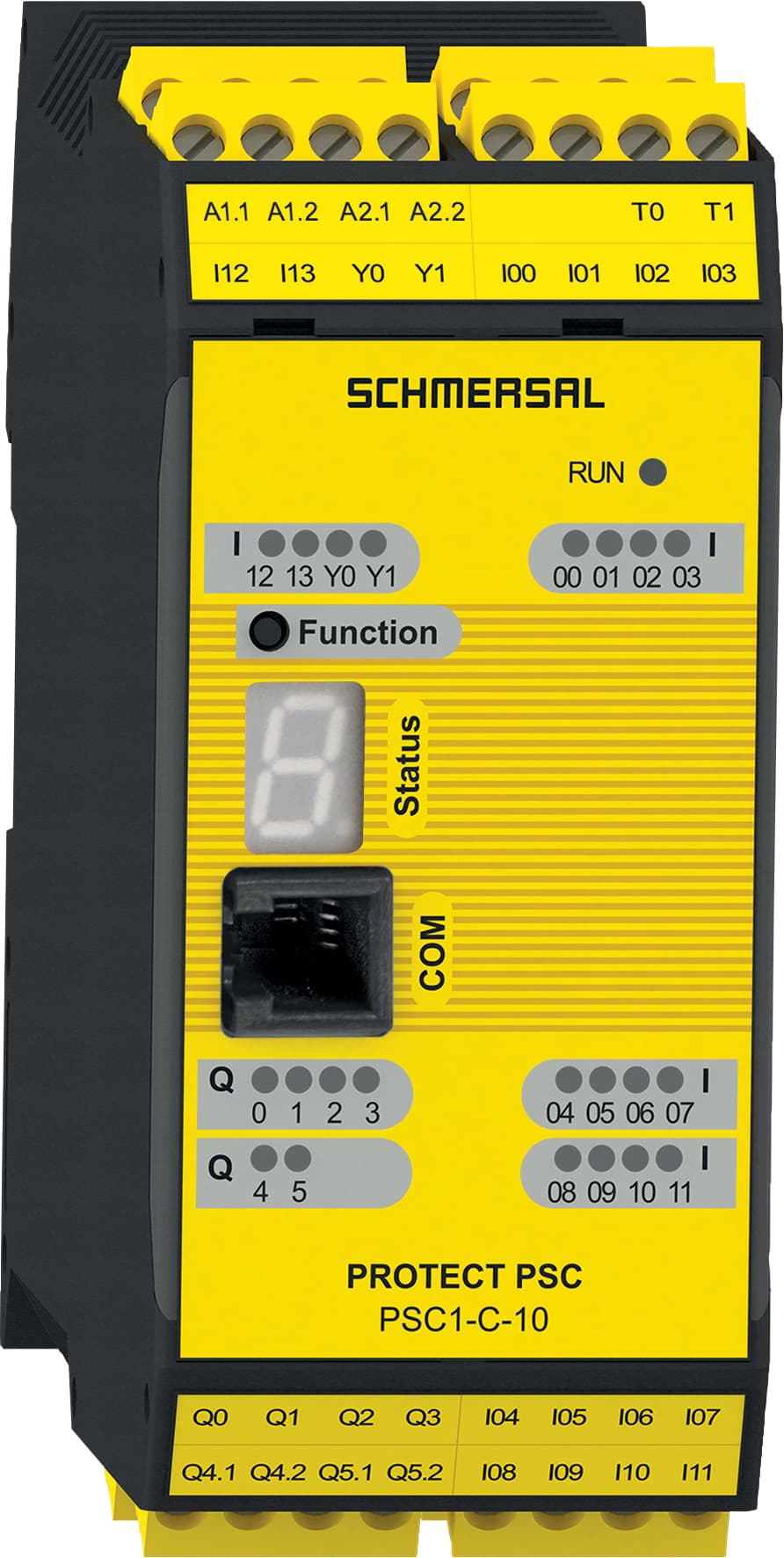

PSC1-C-10 Schmersal Safety Controllers

Product Details

• Terminal (mechanical)
  Removable screw terminals
• Height
  100 mm
• Storage and transport temperature, minimum
  -25 °C
• Operating voltage, maximum
  28.8 VDC
• Current, Utilisation category DC13
  2 A
• Number of relay outputs (1-channel)
  2
• Wire cross-section, maximum
  12 AWG
• Ambient temperature, maximum
  +50 °C
• Overvoltage category
  III
• Current, Utilisation category AC-15
  2 A
• Number of pulse outputs (test pulse output)
  2
• Cable section, maximum
  2.5 mm²
• Storage and transport temperature, maximum
  +70 °C
• Degree of pollution to IEC/EN 60664-1
  2
• Voltage, Utilisation category DC13
  24 VDC
• Number of digital fail-safe inputs
  14
• Wire cross-section, minimum
  24 AWG
• Width
  45 mm
• Relative humidity, maximum
  85 %
• Voltage, Utilisation category AC15
  230 VAC
Number of fail-safe digital outputs
4
Mounting
can be clipped into standard rail
Degree of protection
IP20
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Versions
short-circuit proof, p-type (Q2 und Q3)
EMC rating
DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
Number of signalling outputs
2
Gross weight
100 g
Depth
115 mm
Note (Relative humidity)
non-condensing
Rated operating current (safety outputs)
2,000 mA
Electromagnetic compatibility
DIN EN 62061, DIN EN 61800-3
Anzahl der Erweiterungsbaugruppen, maximal
2
Cable section, minimum
0.2 mm²
Ambient temperature, minimum
+0 °C
Relative humidity, minimum
5 %
Operating voltage, minimum
20.4 VDC
Interfering radiation
DIN EN 61000-6-4
