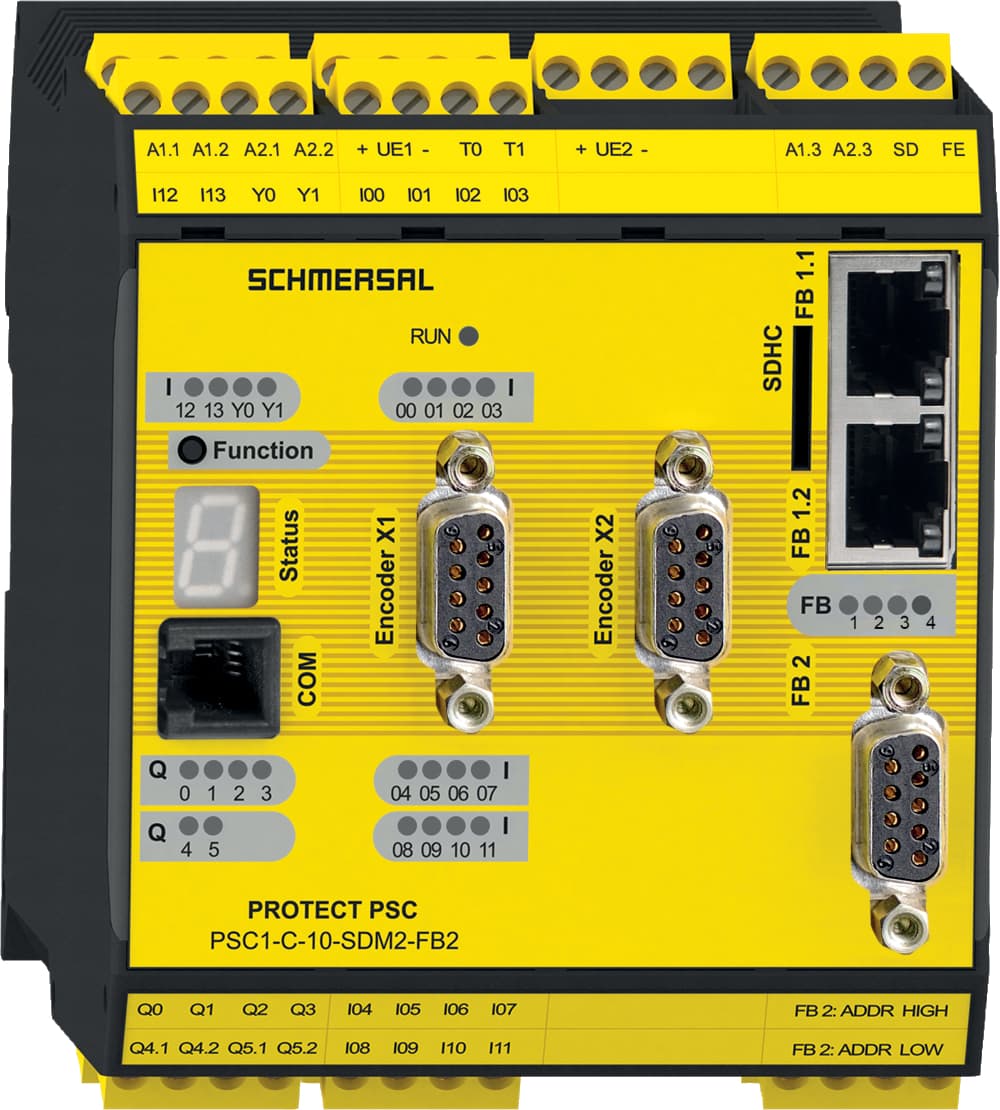

PSC1-C-10-SDM2-FB2 Schmersal Safety Controllers

Product Details

• Number of digital fail-safe inputs
  14
• Gross weight
  805.2 g
• Master-Slave-Kommunikation
  Yes
• Master-Master-Kommunikation
  Yes
• Number of fail-safe digital outputs
  4
• Number of signalling outputs
  2
• Width
  90 mm
• Height
  100 mm
• Degree of protection
  IP20
• Relative humidity, maximum
  85 %
• Zulässige Aufstellhöhe über NN, maximum
  2,000 m
• Degree of pollution to IEC/EN 60664-1
  2
• Voltage, Utilisation category AC15
  230 VAC
• Versions
  short-circuit proof, p-type (Q2 und Q3)
• Current, Utilisation category AC-15
  2 A
• Drive monitoring, encoder typ
  SSI, TTL, SINCOS
• Number of relay outputs (1-channel)
  2
• Number of pulse outputs (test pulse output)
  2
• Integrated SD gateway
  Yes
• Terminal (mechanical)
  Removable screw terminals
SD Card Slot
Yes
Anzahl der Erweiterungsbaugruppen, maximal
2
Mounting
can be clipped into standard rail
Cable section, minimum
0.2 mm²
Cable section, maximum
2.5 mm²
Wire cross-section, maximum
12 AWG
Wire cross-section, minimum
24 AWG
Depth
115 mm
Ambient temperature, minimum
+0 °C
Storage and transport temperature, maximum
+70 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+50 °C
Relative humidity, minimum
5 %
Note (Relative humidity)
non-condensing
Overvoltage category
III
Designation, Communication interface
DSUB
Operating voltage, minimum
20.4 VDC
Rated operating current (safety outputs)
2,000 mA
Field bus
CANopen, PROFIBUS
Operating voltage, maximum
28.8 VDC
Current, Utilisation category DC13
2 A
Electromagnetic compatibility
DIN EN 62061, DIN EN 61800-3
Voltage, Utilisation category DC13
24 VDC
EMC rating
DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
Interfering radiation
DIN EN 61000-6-4
Number of axis monitoring, max.
2
