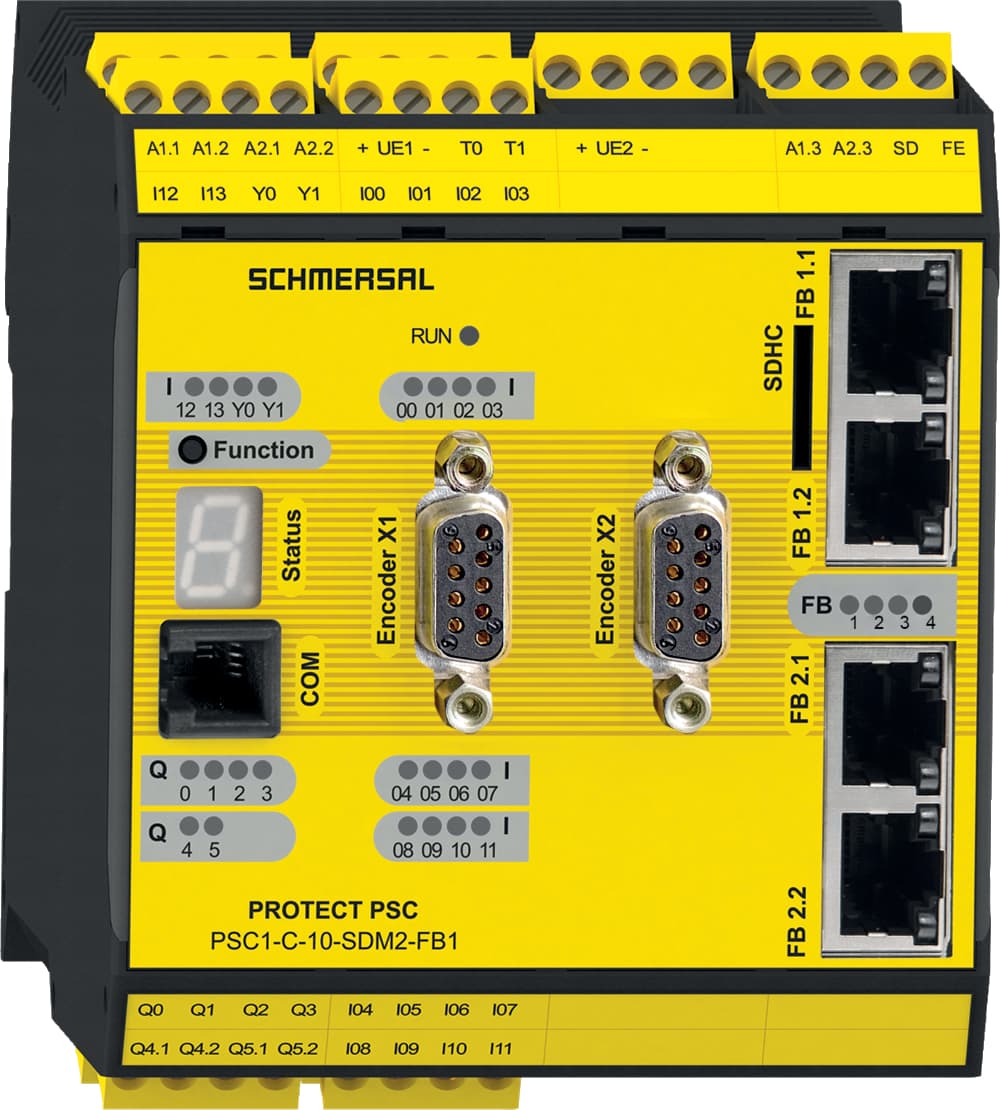

PSC1-C-10-SDM2-FB1-ECFS Schmersal Safety Controllers

Product Details

• Gross weight
  818.2 g
• Anzahl der Erweiterungsbaugruppen, maximal
  2
• Height
  100 mm
• Note (Relative humidity)
  non-condensing
• Voltage, Utilisation category DC13
  24 VDC
• Drive monitoring, encoder typ
  SSI, TTL, SINCOS
• SD Card Slot
  Yes
• Terminal (mechanical)
  Removable screw terminals
• Number of signalling outputs
  2
• Storage and transport temperature, maximum
  +70 °C
• Electromagnetic compatibility
  DIN EN 62061, DIN EN 61800-3
• Current, Utilisation category AC-15
  2 A
• Master-Master-Kommunikation
  Yes
• Number of fail-safe digital outputs
  4
• Width
  90 mm
• Relative humidity, maximum
  85 %
• Versions
  short-circuit proof, p-type (Q2 und Q3)
• EMC rating
  DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
• Number of pulse outputs (test pulse output)
  2
• Mounting
  can be clipped into standard rail
Depth
115 mm
Designation, Communication interface
RJ45
Voltage, Utilisation category AC15
230 VAC
Master-Slave-Kommunikation
Yes
Wire cross-section, maximum
12 AWG
Ambient temperature, maximum
+50 °C
Overvoltage category
III
Rated operating current (safety outputs)
2,000 mA
Number of relay outputs (1-channel)
2
Cable section, maximum
2.5 mm²
Degree of protection
IP20
Field bus
EtherCAT, EtherNet IP, PROFINET IO
Operating voltage, maximum
28.8 VDC
Number of digital fail-safe inputs
14
Cable section, minimum
0.2 mm²
Ambient temperature, minimum
+0 °C
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Current, Utilisation category DC13
2 A
Interfering radiation
DIN EN 61000-6-4
Integrated SD gateway
Yes
Wire cross-section, minimum
24 AWG
Relative humidity, minimum
5 %
Operating voltage, minimum
20.4 VDC
Number of axis monitoring, max.
2
Storage and transport temperature, minimum
-25 °C
Degree of pollution to IEC/EN 60664-1
2
