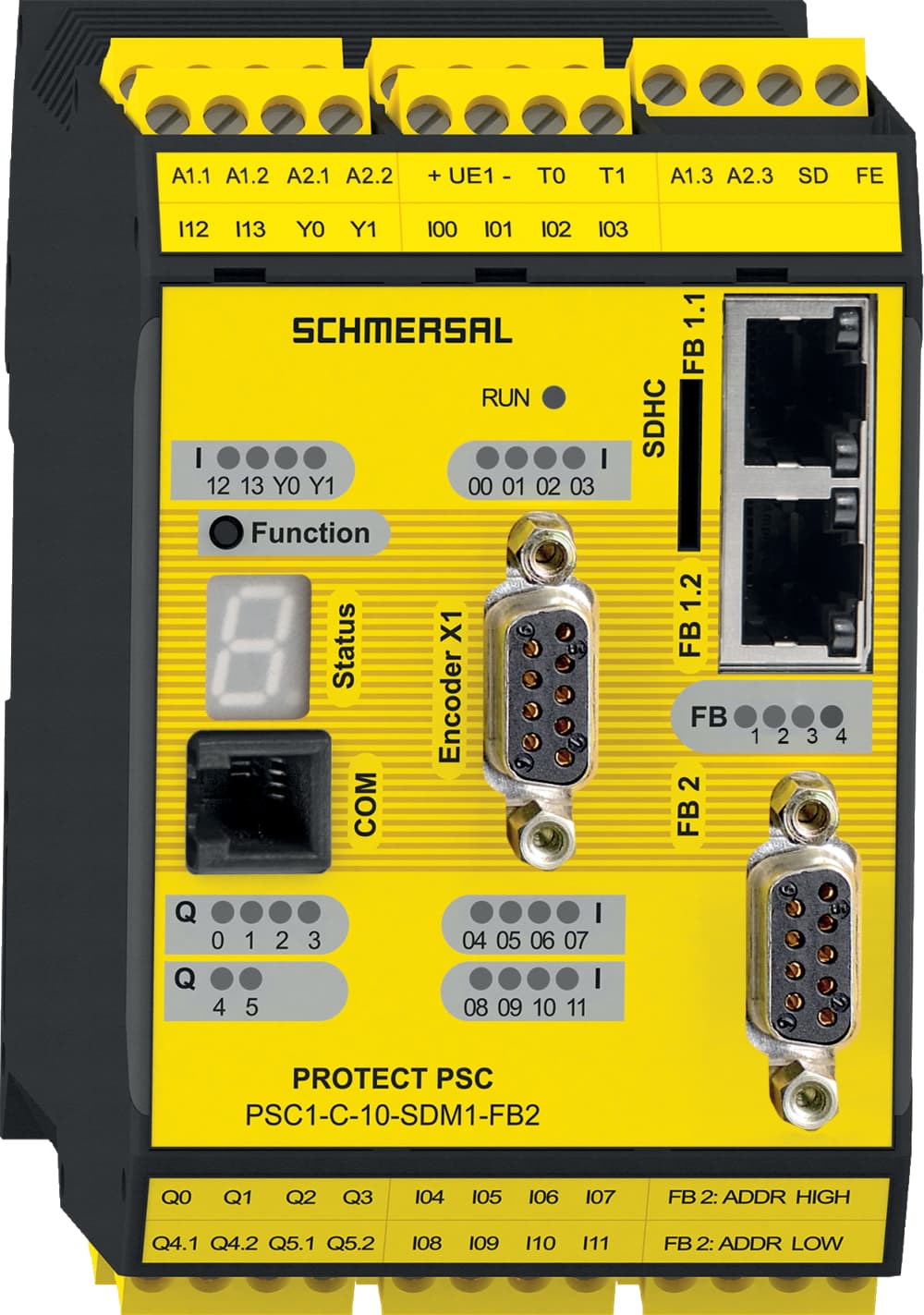

PSC1-C-10-SDM1-FB2 Schmersal Safety Controllers

Product Details

• Terminal (mechanical)
  Removable screw terminals
• Cable section, maximum
  2.5 mm²
• Ambient temperature, minimum
  +0 °C
• Operating voltage, minimum
  20.4 VDC
• Versions
  short-circuit proof, p-type (Q2 und Q3)
• EMC rating
  DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
• Number of pulse outputs (test pulse output)
  2
• Cable section, minimum
  0.2 mm²
• Depth
  115 mm
• Zulässige Aufstellhöhe über NN, maximum
  2,000 m
• Current, Utilisation category DC13
  2 A
• SD Card Slot
  Yes
• Number of fail-safe digital outputs
  4
• Width
  67.5 mm
• Relative humidity, minimum
  5 %
• Rated operating current (safety outputs)
  2,000 mA
• Interfering radiation
  DIN EN 61000-6-4
• Gross weight
  582.4 g
• Number of signalling outputs
  2
• Degree of protection
  IP20
Operating voltage, maximum
28.8 VDC
Field bus
CANopen, PROFIBUS
Number of axis monitoring, max.
1
Number of relay outputs (1-channel)
2
Mounting
can be clipped into standard rail
Wire cross-section, maximum
12 AWG
Overvoltage category
III
Voltage, Utilisation category DC13
24 VDC
Integrated SD gateway
Yes
Master-Slave-Kommunikation
Yes
Height
100 mm
Storage and transport temperature, minimum
-25 °C
Degree of pollution to IEC/EN 60664-1
2
Voltage, Utilisation category AC15
230 VAC
Number of digital fail-safe inputs
14
Anzahl der Erweiterungsbaugruppen, maximal
2
Ambient temperature, maximum
+50 °C
Note (Relative humidity)
non-condensing
Designation, Communication interface
DSUB
Electromagnetic compatibility
DIN EN 62061, DIN EN 61800-3
Master-Master-Kommunikation
Yes
Wire cross-section, minimum
24 AWG
Storage and transport temperature, maximum
+70 °C
Relative humidity, maximum
85 %
Current, Utilisation category AC-15
2 A
Drive monitoring, encoder typ
TTL, SINCOS, Proximity switch
