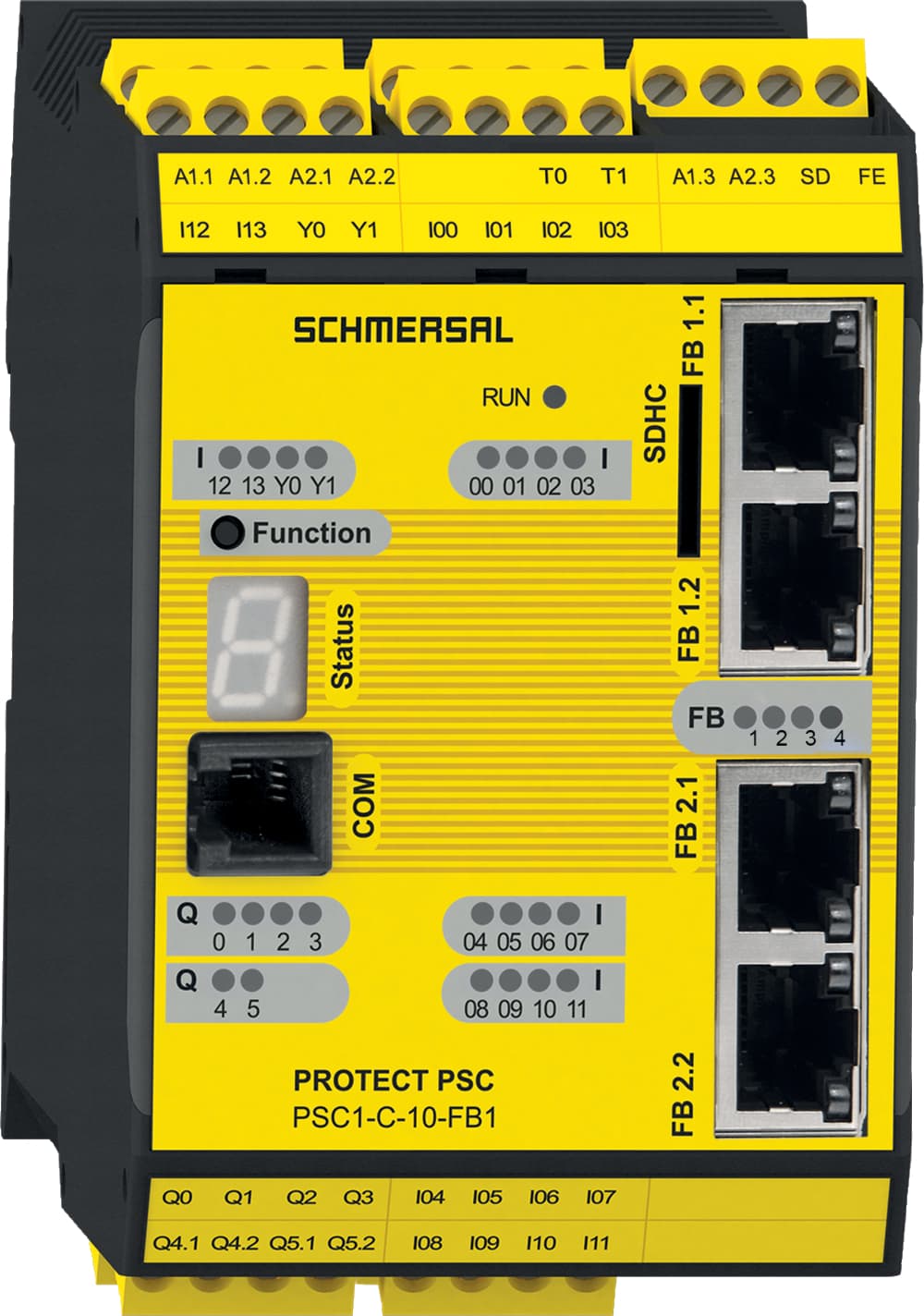

PSC1-C-10-FB1-ECFS Schmersal Safety Controllers

Product Details

• SD Card Slot
  Yes
• Cable section, maximum
  2.5 mm²
• Storage and transport temperature, minimum
  -25 °C
• Voltage, Utilisation category AC15
  230 VAC
• Current, Utilisation category DC13
  2 A
• Master-Master-Kommunikation
  Yes
• Wire cross-section, maximum
  12 AWG
• Ambient temperature, minimum
  +0 °C
• Zulässige Aufstellhöhe über NN, maximum
  2,000 m
• Rated operating current (safety outputs)
  2,000 mA
• Number of pulse outputs (test pulse output)
  2
• Master-Slave-Kommunikation
  Yes
• Anzahl der Erweiterungsbaugruppen, maximal
  2
• Number of signalling outputs
  2
• Cable section, minimum
  0.2 mm²
• Height
  100 mm
• Ambient temperature, maximum
  +50 °C
• Relative humidity, minimum
  5 %
• Operating voltage, minimum
  20.4 VDC
• Field bus
  EtherCAT, EtherNet IP, PROFINET IO
Versions
short-circuit proof, p-type (Q2 und Q3)
Current, Utilisation category AC-15
2 A
Number of digital fail-safe inputs
14
Wire cross-section, minimum
24 AWG
Note (Relative humidity)
non-condensing
Designation, Communication interface
RJ45
Voltage, Utilisation category DC13
24 VDC
Number of relay outputs (1-channel)
2
Integrated SD gateway
Yes
Number of fail-safe digital outputs
4
Gross weight
584.5 g
Width
67.5 mm
Degree of protection
IP20
Storage and transport temperature, maximum
+70 °C
Overvoltage category
III
Degree of pollution to IEC/EN 60664-1
2
Interfering radiation
DIN EN 61000-6-4
EMC rating
DIN EN 61000-6-7, DIN EN 61326-3, DIN EN 61000-6-2
Terminal (mechanical)
Removable screw terminals
Mounting
can be clipped into standard rail
Depth
115 mm
Relative humidity, maximum
85 %
Operating voltage, maximum
28.8 VDC
Electromagnetic compatibility
DIN EN 62061, DIN EN 61800-3
