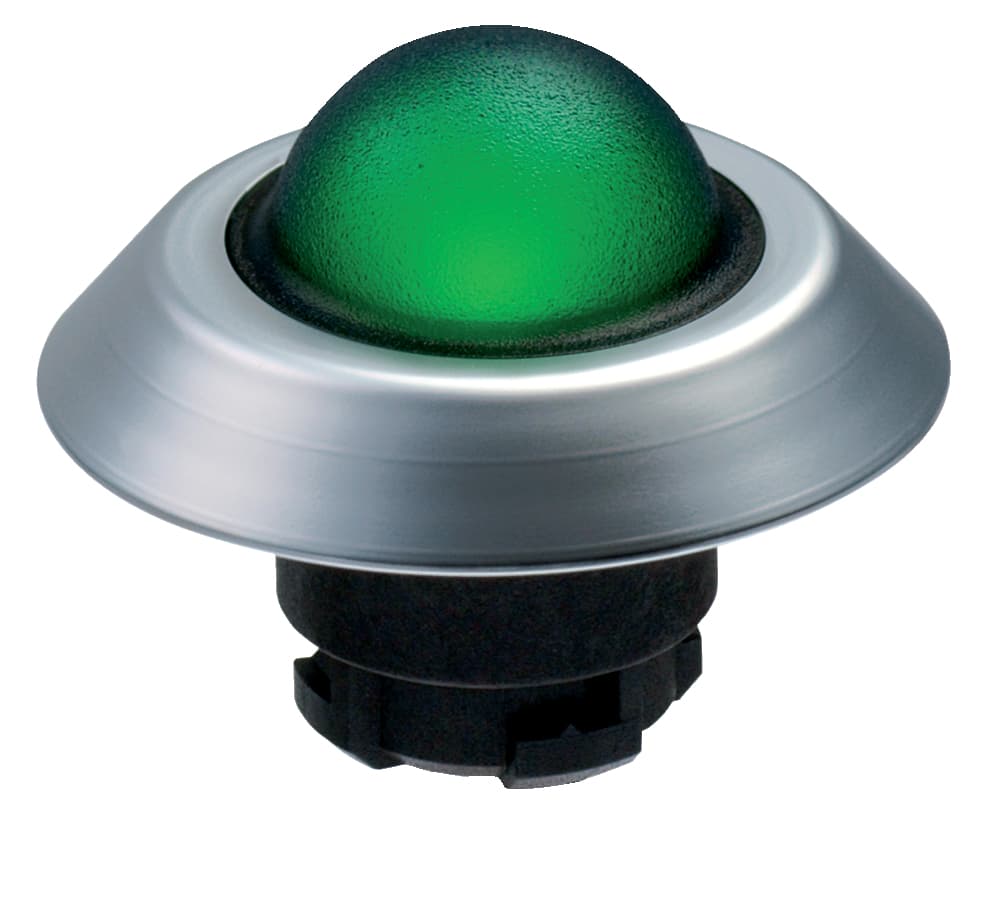

NMLHRT Schmersal Indicator Lights

Product Details

• Design
  Round, High calotte
• Fully insulated
  Yes
• Thickness, of the front panel, minimum
  1.5 mm
• Gross weight
  30 g
• Mounting
  Mounting flange ELM
• Thickness of the front panel, maximum
  6 mm
• Material of the dome
  PA (12)
• Illuminable
  Yes
• Diameter hole
  22.3 mm
• Degree of protection
  IP67, IP69K
• Sealing type
  Membrane, Lip gaskets, Form seals
• Colour of the dome
  Red
• Tightening torque of the screw
  0.6 Nm
• Ambient temperature, minimum
  -25 °C
• Standards
  EN 60947-5-1, IEC/EN 60947-1
• Mounting flange
  Yes
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Colour of the front ring
  Silver
• Diameter of the dome
  22 mm
• Ambient temperature, maximum
  +80 °C
Installation conditions (mechanical)
arbitrarily
Height of the dome
10.4 mm
Spacing
50 x 50 mm
Material of the front ring
ABS, chrome-plated
Versions
LED - Indicator light - Front plate mounting
Diameter total
44.5 mm
