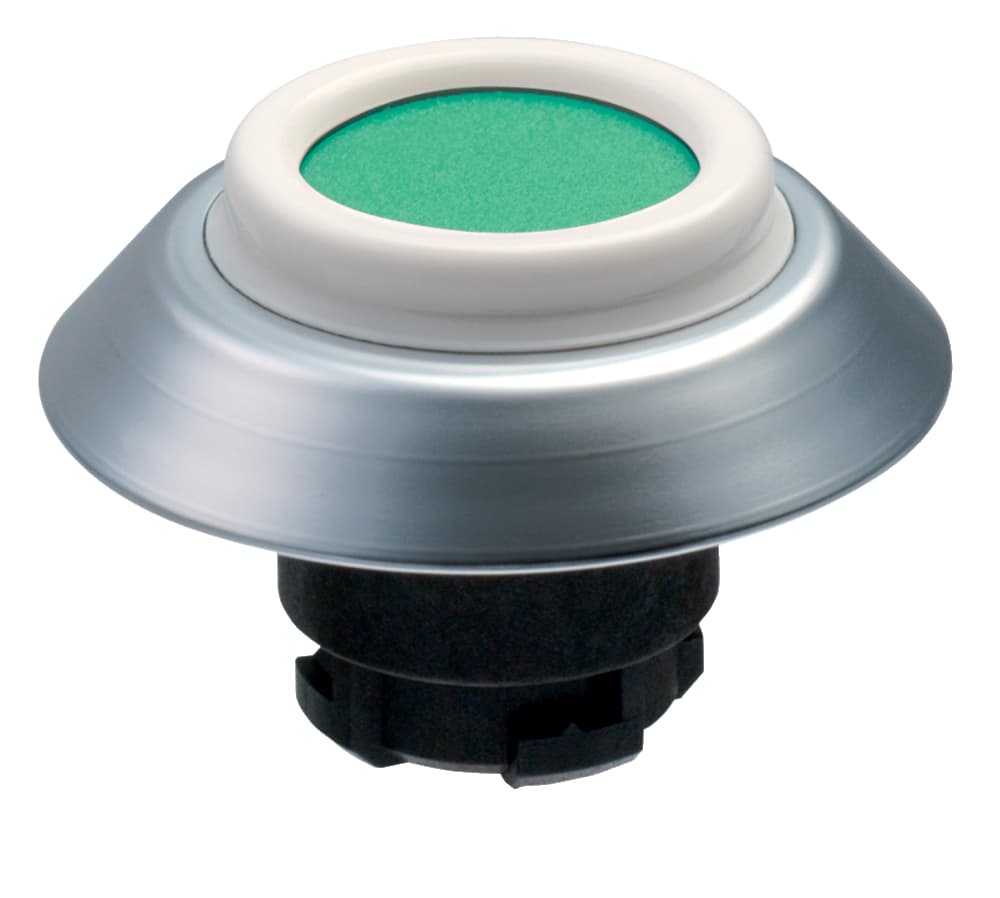

NDTGN/513D Schmersal Pushbuttons

Name: NDTGN/513D
Brand: Schmersal

Part#:NDTGN/513D

Alt. Part#:101189522

Manufacturer:Schmersal

Category:Pushbuttons

Product Lifecycle:Active

Product description

Command and signalling devices; "N" program

Product Details

Material of the operators
ABS
Probing possible
Yes
diameters for the actuating heads
44.5 mm
Ambient temperature, minimum
-25 °C
Sealing type
Membrane, Lip gaskets
Unlocking
without
Tightening torque of the screw
0.6 Nm
Ambient temperature, maximum
+80 °C
Colour of the operating element
Green
Height
11 mm
Diameter hole, with tolerance indication
22.3 + 0.4 mm
Colour of the front ring
Silver
Gross weight
25 g
Actuating stroke
5 mm
Thickness, of the front panel, minimum
1.5 mm
Standards
EN 60947-5-1, IEC/EN 60947-1
Versions
Embeddable button - Front plate mounting
Mounting flange
Yes
Diameter hole
22.3 mm
Degree of protection
IP67, IP69K

Material of the front ring

ABS, chrome-plated

Mounting

Mounting flange EFM

Thickness of the front panel, maximum

6 mm

Design

Round

Colour of the bellows

White

Fully insulated

Yes

Spacing

50 x 50 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
