NDLP30GN Schmersal Indicator Lights
Part#:NDLP30GN
Alt. Part#:103005367
Manufacturer:Schmersal
Category:Indicator Lights
Product Lifecycle:Active
Product description

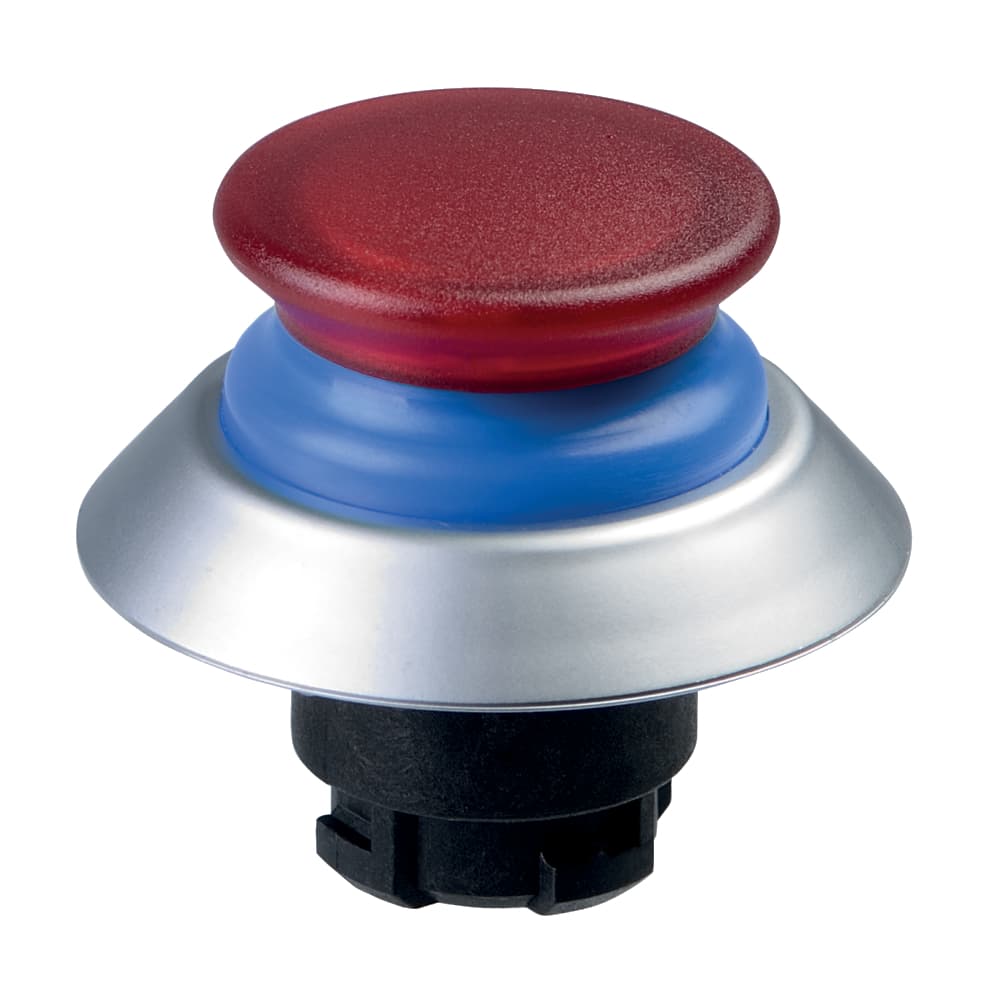

NDLP30GN Schmersal - Illuminated Mushroom Button from N Series (IP69K)
Product Details
- Material of the front ring ABS, chrome-plated
- Versions round, Mushroom button
- Actuating stroke 5 mm
- Degree of protection IP67, IP69K
- Colour of the front ring Silver
- Illuminable Yes
- Diameter hole 22.3 mm
- Spacing 50 x 50 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Colour of the operating element Green
- Tightening torque of the screw 0.6 Nm
- Colour of the bellows White
- Gross weight 36 g
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Design Round
- Sealing type Membrane, Lip gaskets
- Fully insulated Yes
- Ambient temperature, minimum -25 °C
- Material of the operators Plastic
- Mounting Mounting flange EFM
- Thickness of the front panel, maximum 6 mm
- Mounting flange Yes
- diameters for the actuating heads 30 mm
- Ambient temperature, maximum +80 °C
- Material of the bellows Silicone
- Probing possible Yes
- Height 20 mm
- Thickness, of the front panel, minimum 1.5 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDLP30GN on Applied Automation is $58.00. Order now.
NDLP30GN Related Documents
Manufacturer warranty
NDLP30GN Schmersal
$58.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$58.00
$58.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of NDLP30GN?
Purchase the NDLP30GN from Applied Automation at the price of $58.00. Order today.
Out if stock but available for backorder.
NDLP30GN Schmersal - Illuminated Mushroom Button from N Series (IP69K)
