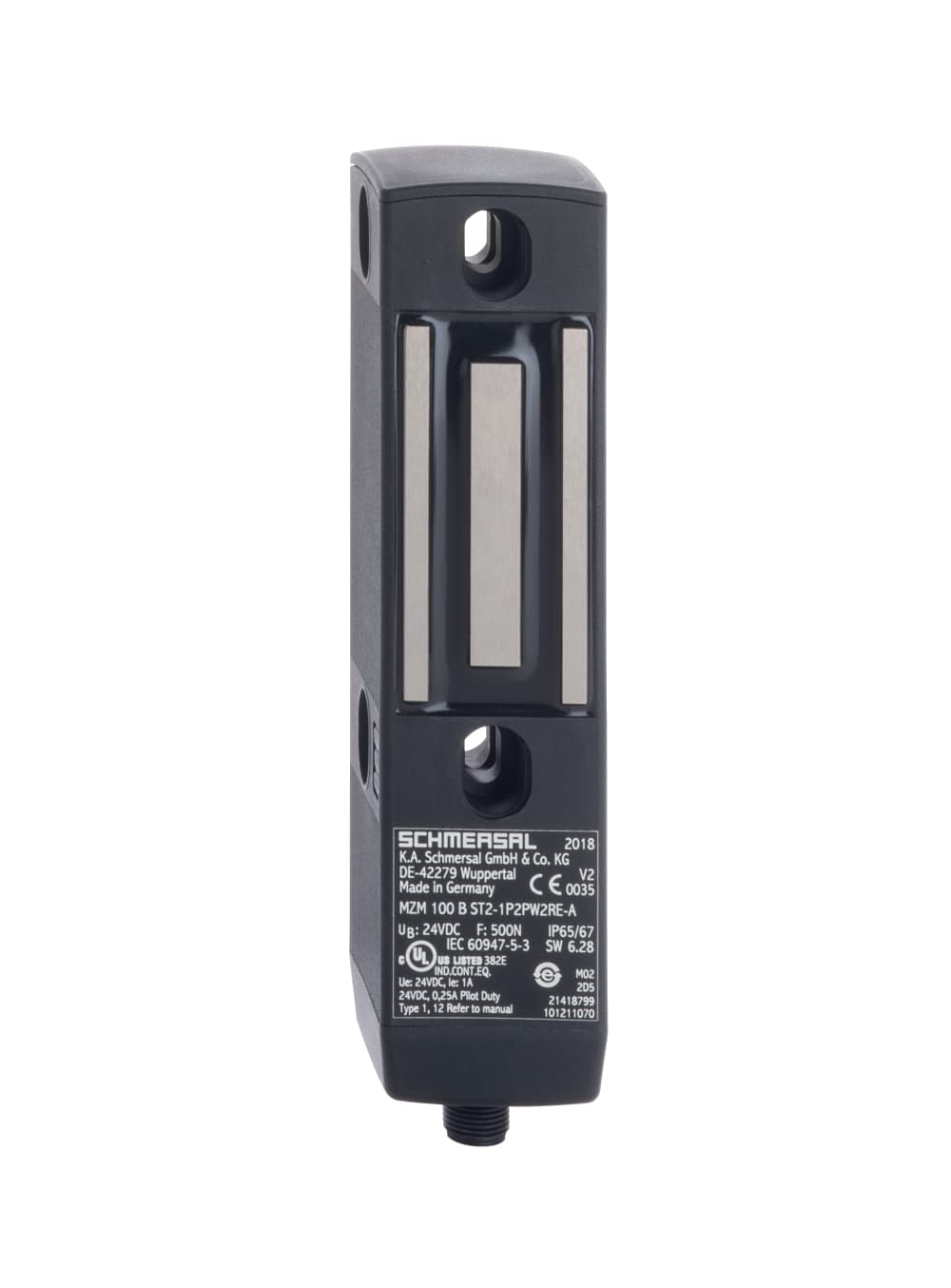

MZM 100 ST2-1P2PW-A Schmersal Safety Switch Interlocks
Part#:MZM 100 ST2-1P2PW-A
Alt. Part#:101199623
Manufacturer:Schmersal
Category:Safety Switch Interlocks
Product Lifecycle:Active
Product description
MZM 100 ST2-1P2PW-A Schmersal - Solenoid interlocks; Guard locking monitored; Connector M12, 8-pole; Power to lock; Automatic latching; Solenoid interlocks (for the protection of man) with innovating and unique operating principle; 40 mm x 179 mm x 40 mm; Electronic contact-free, coded
Product Details
- Coding level according to ISO 14119 Low
- Integral System Diagnostics, status Yes
- Note (Mechanical lifetime) Actuating speed < 0.5 m/s, Operations for door weights ≤ 5 kg
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm
- Operating voltage, maximum 26.4 VDC
- Switching thresholds -3 V … 5 V (Low), 15 V … 30 V (High)
- Voltage, Utilisation category DC13 24 VDC
- Standards IEC 61508, EN 60947-5-3, EN ISO 13849-1
- Time to readiness, maximum 4,000 ms
- Series-wiring Yes
- Ambient temperature, minimum -25 °C
- Protection rating III
- Operating current 50 mA
- Rated operating current (safety outputs) 250 mA
- general information Universal coding
- Number of safety contacts 2
- Mechanical life, minimum 1,000,000 Operations
- Storage and transport temperature, maximum +70 °C
- Overvoltage category III
- Required rated short-circuit current to EN 60947-5-1 100 A
- Voltage drop Ud, maximum 2 V
- Active principle inductive
- Short circuit detection Yes
- Length of sensor 40 mm
- Height of sensor 179 mm
- Relative humidity, maximum 95 %
- Operating voltage, minimum 20.4 VDC
- Current leakage Ir 0.5 mA
- Classification ZVEI CB24I, Source C1
- Reaction time, maximum 150 ms
- Safety functions Yes
- Width of sensor 40 mm
- Note (Relative humidity) non-condensing, non-icing
- No-load supply current I0 600 mA
- Gross weight 618 g
- Power to lock Yes
- Clamping force, typically 750 N
- Storage and transport temperature, minimum -25 °C
- Degree of pollution to VDE 0100 3
- Current, Utilisation category DC13 0.05 A
- Classification ZVEI CB24I, Sink C1
- Enclosure material Glass-fibre, reinforced thermoplastic
- Short-circuit recognition Yes
- Terminal Connector Connector M12, 8-pole
- Number of Series-wiring of sensors 31
- Ambient temperature, maximum +55 °C
- Restistance to shock 30 g / 11 ms
- Rated impulse withstand voltage Uimp 0.8 kV
- Switching frequency, maximum 1 Hz
- Duration of risk, maximum 150 ms
- Guard locking monitored Yes
- Clamping force, guaranteed 500 N
- Relative humidity, minimum 30 %
- Rated insulation voltage Ui 32 VDC
- Note Cable length and cable section alter the voltage drop depending on the output current
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
