EF110.3 Schmersal Safety Accessories

Product Details

• Standards
  EN 60947-5-1, IEC/EN 60947-1
• Mechanical life, minimum
  10,000,000 Operations
• Installation instructions
  pluggable
• Number of openers
  2
• Gross weight
  20 g
• Contact labelling
  51-52, 61-62

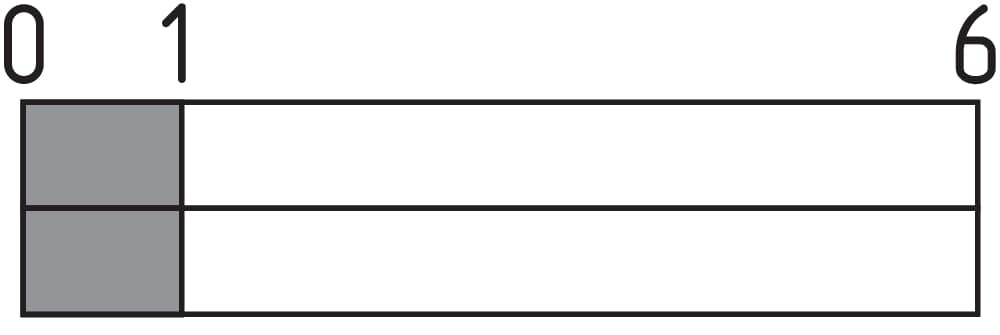

• positive break travel
  2 mm
• Material of the contacts, electrical
  Silver
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Cable section, minimum
  0.5 mm², rigid, 0.5 mm², flexible
• Terminal Connector
  Screw connection
• Degree of protection of the switch rooms
  IP40
• Width
  10 mm
• Resistant to vibration
  Resistance to vibration: 20 g / 10…200 Hz
• Switching element
  Opener (NC)
• Switching frequency
  1,200 /h
• Note Bounce duration
  Bounce duration at an Actuating speed of 100mm/s
• Ambient temperature, minimum
  -25 °C
• Thermal test current
  10 A
• Switching principle
  Slow action
Contact opening
1 mm
Ambient temperature, maximum
+80 °C
Mounting flange position
3
Rated insulation voltage Ui
400 V
Suitable for low-voltages
≥ 5 V / ≥ 3.2 mA
Length
46 mm
Restistance to shock
110 g / 4 ms
Depth
60 mm
Bounce duration, maximum
5 ms
Utilisation category AC-15
8 A
Degree of protection of clips or terminals
IP20
Utilisation category DC-13
5 A
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Cable section, maximum
2.5 mm², rigid, 1.5 mm², flexible
