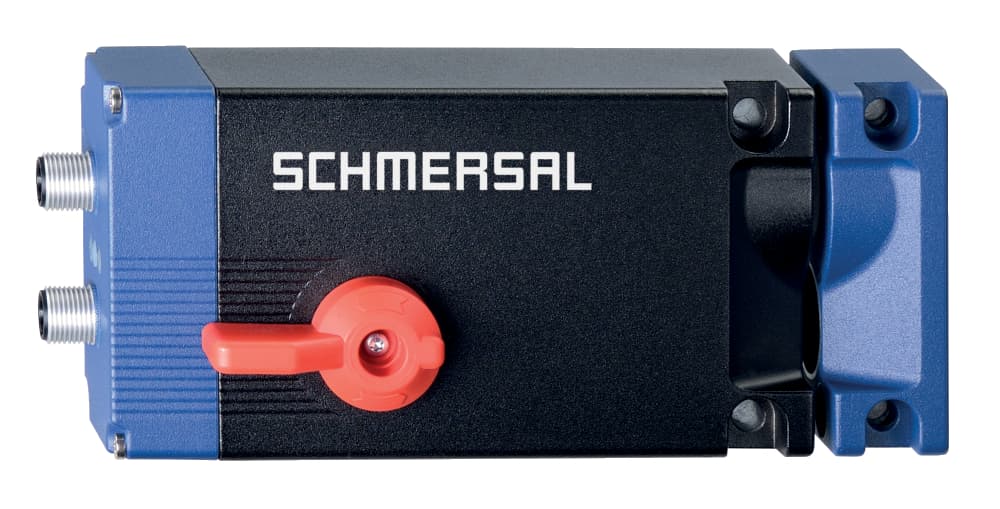

AZM400Z-ST2-I2-2P2P-T-E Schmersal Safety Accessories

Product Details

• Number of safety contacts
  2
• Interlocking principle
  bistable
• Short-circuit recognition
  Yes
• Emergency exit
  Yes
• Safety functions
  Yes
• Integral System Diagnostics, status
  Yes
• Number of diagnostic signals
  2
• Minimum distance devices
  30 mm
• Mechanical life, minimum
  1,000,000 Operations
• Note (Mechanical lifetime)
  Which have a lateral force Ftrans = 100 N: 100.000 operations
• Clamping force, maximum Fmax
  13,000 N
• Lateral force at bolt return, maximal (against locked door)
  300 N
• Note (Lateral force at bolt return)
  Does not apply to emergency exit, Bowden cable and manual release
• Clamping force in accordance with ISO14119 Fzh
  10,000 N
• Tightening torque of the screw
  8 Nm
• Terminal Connector
  2 connector M12, 8 and 5 pin
• Width of sensor
  77.8 mm
• Length of sensor
  65.3 mm
• Height of sensor
  166.7 mm
• Storage and transport temperature, minimum
  -40 °C
Ambient temperature, minimum
-20 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Storage and transport temperature, maximum
+85 °C
Ambient temperature, maximum
+55 °C
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Protection rating
III
Restistance to shock
30 g / 11 ms
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Degree of pollution to VDE 0100
3
Current consumption, maximum
600 mA
Operating Current
100 mA
Current consumption at 24V, minimum
10 mA
Current consumption at 24V, maximum
15 mA
No-load supply current I0
100 mA
Required rated short-circuit current to EN 60947-5-1
100 A
Minimal average cycle time (with continuous operation)
20 s
Switching frequency, approx.
0.3 Hz
Switching thresholds of the control inputs
−3 V … 5 V (Low), 15 V … 30 V (High)
Open / close cycle (Motor), minimum
3
Operating current
50 mA
Current leakage Ir
1.5 mA
Voltage, Utilisation category DC12
24 VDC
Current, Utilisation category DC13
0.05 A
Coding level according to ISO 14119
High
Versions
short-circuit proof, p-type
Classification ZVEI CB24I, Sink
C1, C2
Time to readiness, maximum
1,500 ms
Note
The diagnostic output are not safety relevant outputs!
Active principle
Magnetic field, RFID
Classification ZVEI CB24I, Source
C2
Guard locking monitored
Yes
Rated operating current (safety outputs)
250 mA
Reaction time, maximum
100 ms
general information
Individual coding, multiple teaching
Voltage drop Ud, maximum
2 V
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
Electronic manual release
Yes
Current, Utilisation category DC12
0.05 A
Gross weight
774 g
Allowable discrepancy time (input), maximum
10 s
Enclosure material
Light alloy die-casting
Short circuit detection
Yes
Rated operating voltage
24 VDC
Voltage, Utilisation category DC13
24 VDC
